Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-V60856MTSCAP FILM 85UF 10% 600V RADIAL |
138 |
|
Datasheet |
Radial - 4 Leads | 85 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
EZP-Q38116LTACAP FILM 11UF 5% 380VAC RADIAL |
170 |
|
Datasheet |
Radial | 11 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 12.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
B32926A4825M000CAP FILM 8.2UF 20% 650VDC RADIAL |
681 |
|
Datasheet |
Radial | 8.2 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|

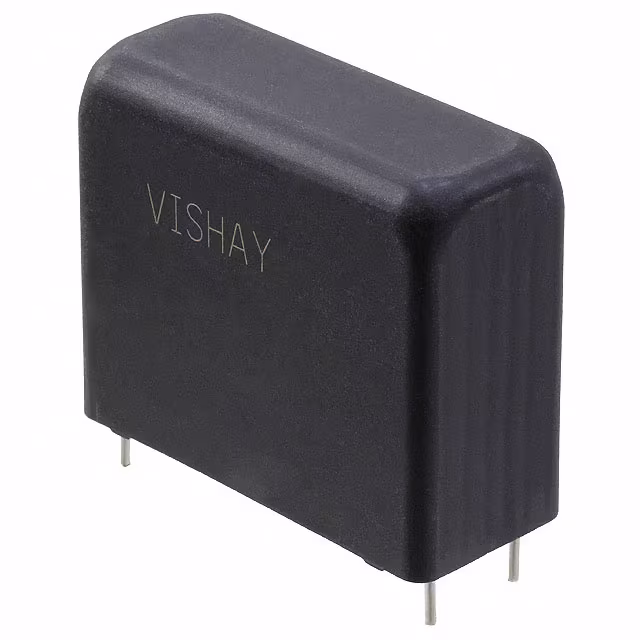

MKP1848C61090JP4CAP FILM 10UF 5% 900VDC RADIAL |
289 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11 mOhms | 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
R75MW515050H3JCAP FILM 15UF 5% 400VDC RADIAL |
168 |
|
Datasheet |
Radial | 15 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60DR5220AA30JCAP FILM 22UF 5% 63VDC RADIAL |
283 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
PMB2153330KVRCAP FILM 0.33UF 1.5KVDC SCREW |
142 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
EZP-E52296MTBCAP FILM 29UF 15% 525VDC RADIAL |
439 |
|
Datasheet |
Radial - 4 Leads | 29 µF | ±15% | - | 525V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.457" L x 1.909" W (37.00mm x 48.50mm) | 0.965" (24.50mm) | PC Pins | 0.799" (20.30mm) | DC Link, DC Filtering | - | Low ESR |
|
C4AQQBW5180M36JCAP FILM 18UF 5% 1.1KVDC RADIAL |
163 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
F17735222000CAP FILM 2.2UF 10% 630VDC AXIAL |
375 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 253V | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.846" Dia x 1.634" L (21.50mm x 41.50mm) | - | PC Pins | - | EMI, RFI Suppression | X2 | - |
|

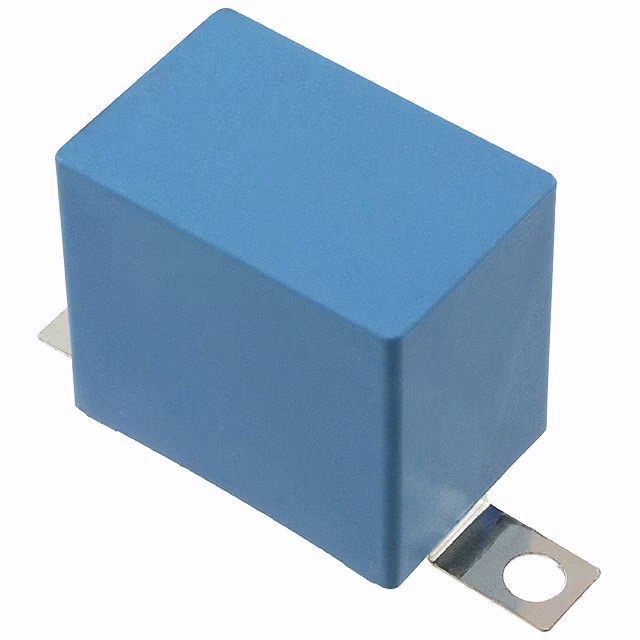

B32686S1104K564CAP FILM 0.1UF 10% 1.6KVDC SCREW |
135 |
|
Datasheet |
Rectangular Box | 0.1 µF | ±10% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | Screw Terminals | 0.972" (24.70mm) | High Pulse, DV/DT; Snubber | - | - |
|
MKP1847C612355Y2MKP 12F 10% 350VAC PITCH 52,5 |
592 |
|
Datasheet |
Radial | 12 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
EZP-E45666MTBCAP FILM 66UF 15% 450VDC RADIAL |
537 |
|
Datasheet |
Radial - 4 Leads | 66 µF | ±15% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.279" L x 3.543" W (32.50mm x 90.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
EZP-V80456MTBCAP FILM 45UF 10% 800V RADIAL |
125 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.283" (58.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

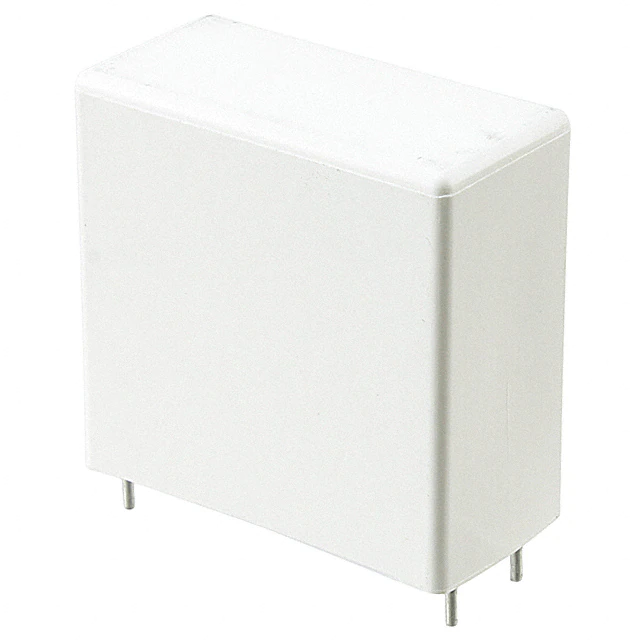

C4AEOBW5120A3FJCAP FILM 12UF 5% 900VDC RADIAL |
174 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
EZP-Q38156LTBCAP FILM 15UF 5% 380VAC RADIAL |
152 |
|
Datasheet |
Radial | 15 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 9.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
PMB1854100KVRCAP FILM 1UF 10% 850VDC SCREW |
136 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
EZP-V80206MTBCAP FILM 20UF 10% 800V RADIAL |
146 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.634" (41.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
SMC12.7474J100B31TR24CAP FILM 0.47UF 5% 100VDC SMD |
2,500 |
|
Datasheet |
Nonstandard | 0.47 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
EZP-E1B206MTACAP FILM 20UF 10% 1.1KVDC RADIAL |
966 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
