Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-Q38206MTACAP FILM 20UF 5% 380VAC RADIAL |
162 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
BLH156K801B084DC LINK, THB, 85/85, AEC-Q200 |
168 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
EZP-E50256LTACAP FILM 25UF 10% 500VDC RADIAL |
138 |
|
Datasheet |
Radial | 25 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 8.8 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B32778Z0306K000CAP FILM 30UF 1KVDC RDL 4 LEAD |
206 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|

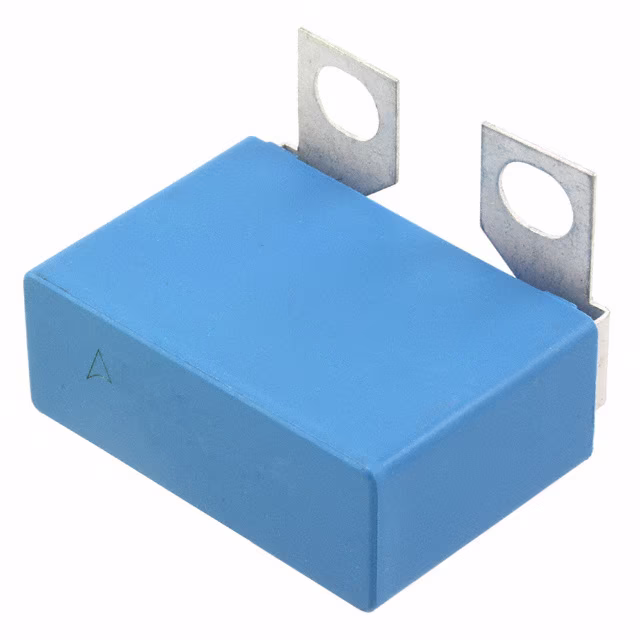

B32656S0684K565CAP FILM 0.68UF 10% 1KVDC SCREW |
186 |
|
Datasheet |
Rectangular Box | 0.68 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
PMB2203220KSPCAP FILM 0.22UF 10% 2KVDC SCREW |
379 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
PMB2203220KSRCAP FILM 0.22UF 10% 2KVDC SCREW |
182 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
EZP-E1B106MTACAP FILM 10UF 10% 1.1KVDC RADIAL |
126 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.654" (42.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
EZP-E80306MTACAP FILM 30UF 10% 800VDC RADIAL |
291 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
C276CC35250AA0JCAP FILM 25UF 5% 470VAC RADIAL |
391 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
105PHB850K4HCAP FILM 1UF 10% 850VDC RADIAL |
551 |
|
Datasheet |
Radial - 4 Leads | 1 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 100°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
EZP-V80306MTBCAP FILM 30UF 10% 800V RADIAL |
273 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.1 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EZP-V1B156MTCCAP FILM 15UF 10% 1100V RADIAL |
143 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 13.7 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
B32778H0306K000CAP FILM 30UF 10% 920VDC RADIAL |
135 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
PMB2123560KSRCAP FILM 0.56UF 1.2KVDC SCREW |
198 |
|
Datasheet |
Rectangular Box | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
PMB2103470KVRCAP FILM 0.47UF 10% 1KVDC SCREW |
123 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32776T4126K000CAP FILM 12UF 10% 450VDC RADIAL |
932 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 17.1 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
EZP-V80186LTUCAP FILM 18UF 10% 800V RADIAL |
189 |
|
Datasheet |
Radial | 18 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.866" W (31.00mm x 22.00mm) | 2.146" (54.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EZP-V1B126MTBCAP FILM 12UF 10% 1100V RADIAL |
134 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.634" (41.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
PMB2203220KVRCAP FILM 0.22UF 10% 2KVDC SCREW |
571 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
