Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1847C610315P4MKP 10F 10% 310VAC PITCH 37,5 |
974 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
EZP-Q38106LTACAP FILM 10UF 5% 380VAC RADIAL |
157 |
|
Datasheet |
Radial | 10 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 10.8 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
PMB1853820KSRCAP FILM 0.82UF 10% 850VDC SCREW |
197 |
|
Datasheet |
Rectangular Box | 0.82 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
EZP-V1B306MTTCAP FILM 30UF 10% 1100V RADIAL |
172 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.693" W (41.00mm x 43.00mm) | 2.323" (59.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R75QW439040H0KCAP FILM 3.9UF 10% 1KVDC RADIAL |
178 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 6.1 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60IR52205000KCAP FILM 22UF 10% 250VDC RADIAL |
380 |
|
Datasheet |
Radial | 22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|

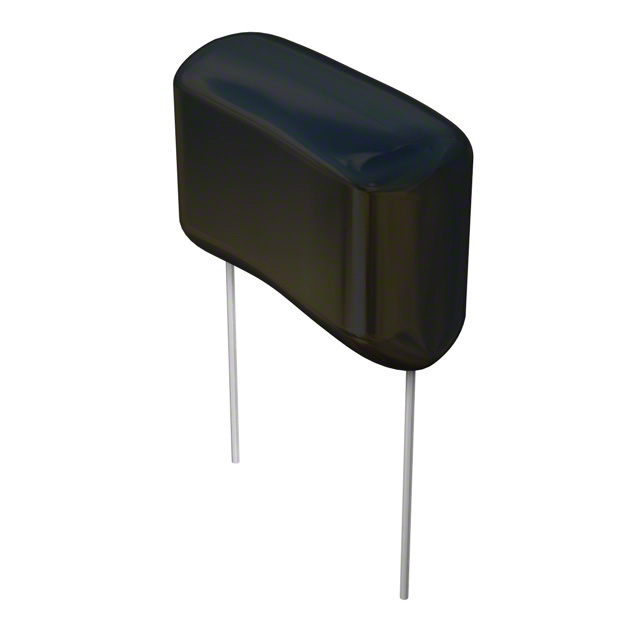

DME2W6P8K-FCAP FILM 6.8UF 10% 250VDC RADIAL |
474 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
EZP-V80206MTTCAP FILM 20UF 10% 800V RADIAL |
134 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.634" (41.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
FE37M6P0106KBCAP FILM 10UF 10% 1.2KVDC RADIAL |
1 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
25MU156MD35750CAP FILM 15UF 20% 25VDC 2220 |
479 |
|
Datasheet |
2220 (5750 Metric) | 15 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

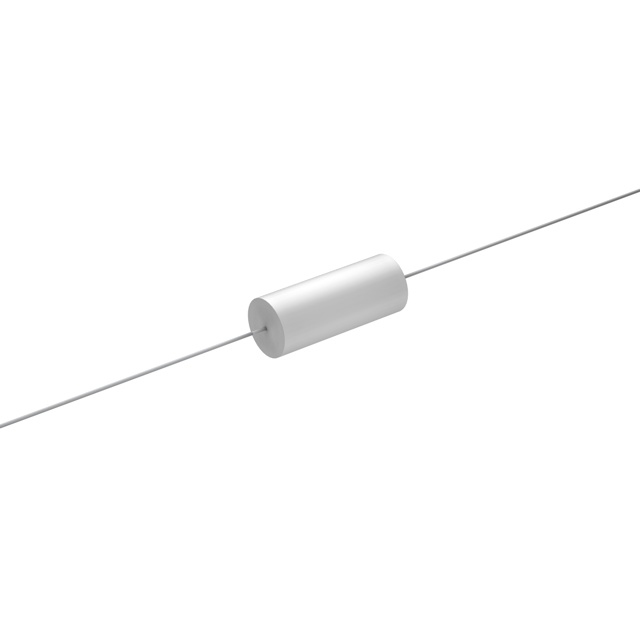

MMWA2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
225 |
|
Datasheet |
Axial | 1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.429" Dia x 1.063" L (10.90mm x 27.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
PMB2203220KVPCAP FILM 0.22UF 10% 2KVDC SCREW |
144 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
EZP-Q38156MTCCAP FILM 15UF 5% 380VAC RADIAL |
599 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 9.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
R586W427050T0KCAP FILM 600VAC(X1) 2.7 UF 10% |
127 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.744" (44.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
EZP-V1B186MTTCAP FILM 18UF 10% 1100V RADIAL |
198 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EZP-V80256MTSCAP FILM 25UF 10% 800V RADIAL |
122 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 11.6 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4AFABW4750F3MKFILM CAP AC, 7.5 UF, 10%,500 VAC |
102 |
|
Datasheet |
Radial - 4 Leads | 7.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
EZP-Q33286MTACAP FILM 28UF 5% 330VAC RADIAL |
396 |
|
Datasheet |
Radial - 4 Leads | 28 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 6.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|

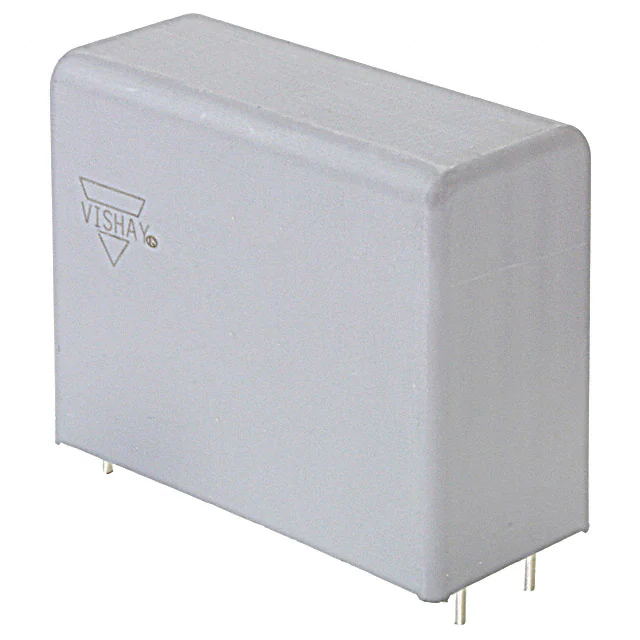

MKP1847615354Y4CAP FILM 15UF 5% 700VDC RADIAL |
374 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
B32778Z5556K000CAP FILM 55UF 600VDC RDL 4 LEAD |
268 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
