Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-V80146LTUCAP FILM 14UF 10% 800V RADIAL |
240 |
|
Datasheet |
Radial | 14 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.654" (42.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

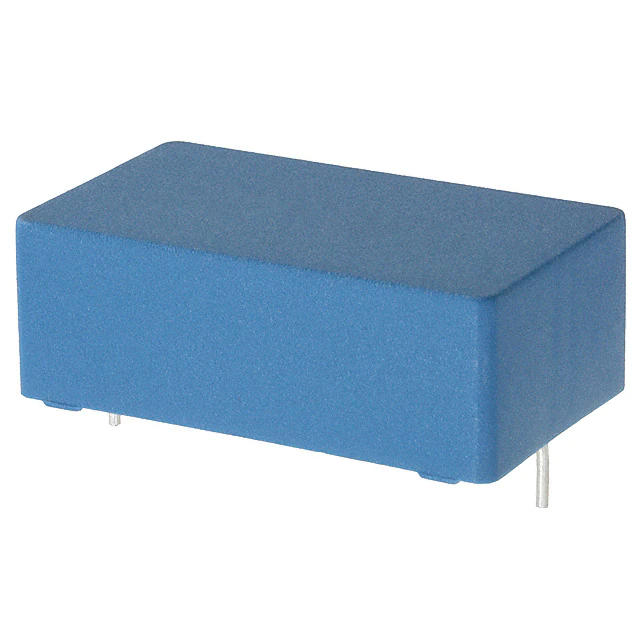

B32526T6565K000CAP FILM 5.6UF 10% 400VDC RADIAL |
852 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32776Z0166K000FILM CAP MKP DC FILTERING - 1000 |
400 |
|
Datasheet |
Radial - 4 Leads | 16 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 7.4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32656T8824K000CAP FILM 0.82UF 10% 850VDC RAD |
630 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32526T1336K000CAP FILM 33UF 10% 100VDC RADIAL |
131 |
|
Datasheet |
Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
R46KW510000M1MCAP FILM 10UF 20% 560VDC RAD |
244 |
|
Datasheet |
Radial | 10 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
MHBS355150KHSCAP FILM 15UF 10% 575VDC RADIAL |
162 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AUIBW5200M3HJFILM, RADIAL, METALLIZED POLYPRO |
132 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
EZP-V1B805MTTCAP FILM 8UF 10% 1100V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 13.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C878BF24600AA0JCAP FILM 6UF 5% 470VAC RADIAL |
690 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
|
EZP-V60226MTTCAP FILM 22UF 10% 600V RADIAL |
305 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 9.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C274AC34500SA0JCAP FILM 5UF 5% 470VAC RADIAL |
111 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MHBS454500KHSCAP FILM 5UF 10% 800VDC RADIAL |
268 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32674D8305J000CAP FILM 3UF 5% 875VDC RADIAL |
603 |
|
Datasheet |
Radial | 3 µF | ±5% | - | 875V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
EZP-V60456MTCCAP FILM 45UF 10% 600V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4ATHBU4100A3BJCAP FILM 1UF 5% 600VDC RADIAL |
219 |
|
Datasheet |
Radial | 1 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 7.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
PHB1405150KJSCAP FILM 15UF 10% 400VDC RADIAL |
170 |
|
Datasheet |
Radial | 15 µF | ±10% | 275V | 400V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
PMB2153330KVPCAP FILM 0.33UF 1.5KVDC SCREW |
129 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C276CC35250AA1JCAP FILM 25UF 5% 470VAC RADIAL |
414 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.780" (96.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4AQQBW5140A3JJCAP FILM 14UF 5% 1.1KVDC RADIAL |
106 |
|
Datasheet |
Radial - 4 Leads | 14 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
