Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ATFBU4200A3BJCAP FILM 2UF 5% 400VDC RADIAL |
234 |
|
Datasheet |
Radial | 2 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32776T0395K000CAP FILM 3.9UF 10% 1.1KVDC RAD |
1,975 |
|
Datasheet |
Radial | 3.9 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 30.5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MABA035100KJSCAP FILM 10UF 10% 500VDC RADIAL |
135 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Motor Run | - | - |
|
EZP-V80106LTTCAP FILM 10UF 10% 800V RADIAL |
225 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 13.9 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
Z23S3720M01NCAP FILM 20UF 6% 370VAC RADIAL |
224 |
|
Datasheet |
Radial, Can | 20 µF | ±6% | 370V | - | - | - | -40°C ~ 105°C | Chassis Mount | 1.750" Dia (44.45mm) | 2.870" (72.90mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
MKP1847C550355P2MKP 5F 10% 350VAC PITCH 37,5 |
1,020 |
|
Datasheet |
Radial | 5 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.437" (36.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
B32716H9206K000MKP DC FILTERING - 900VDC, 20UF |
175 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
PHE426HR8100JR06L2CAP FILM 10UF 5% 250VDC RADIAL |
208 |
|
Datasheet |
Radial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.650" W (41.00mm x 16.50mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75GR510050H0JCAP FILM 10UF 5% 160VDC RADIAL |
119 |
|
Datasheet |
Radial | 10 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE844RF7100MR30L2CAP FILM 1UF 20% 1KVDC RADIAL |
587 |
|
Datasheet |
Radial | 1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
C878AF25120AA0JCAP FILM 12UF 5% 470VAC RADIAL |
373 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
F863RT106K310ZCAP FILM 10UF 10% 630VDC RADIAL |
253 |
|
Datasheet |
Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
B32716H8306K000MKP DC FILTERING - 800VDC, 30UF |
400 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
R474W422050A1KV057CAP FILM 2.2UF 10% 1KVDC RADIAL |
161 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

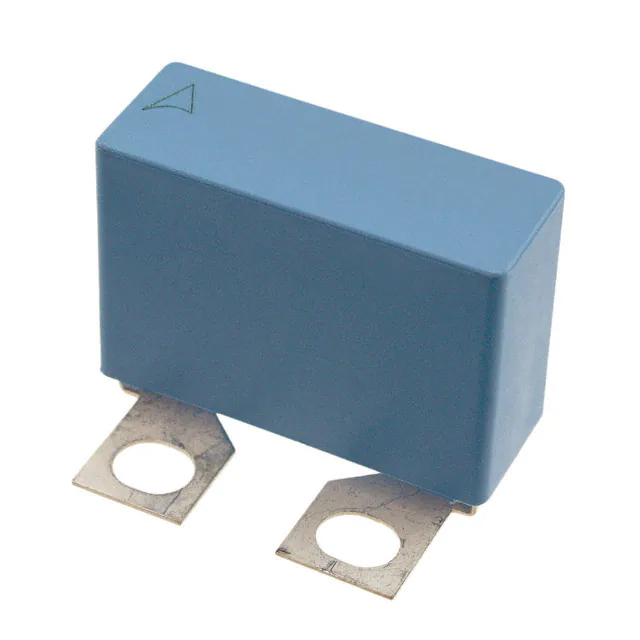

B32656S1224K565CAP FILM 0.22UF 10% 1.7KVDC SCRW |
186 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 750V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
DMT2P47K-FCAP FILM 0.47UF 10% 250VDC RAD |
986 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.110" L x 0.531" W (28.20mm x 13.50mm) | 0.822" (20.87mm) | PC Pins | 0.921" (23.40mm) | General Purpose | - | - |
|
EZP-E80156MTACAP FILM 15UF 10% 800VDC RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.5 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.654" (42.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B32686A1154J000CAP FILM 0.15UF 5% 1.6KVDC RAD |
128 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1839510084HQCAP FILM 1UF 5% 850VDC AXIAL |
416 |
|
Datasheet |
Axial | 1 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.768" Dia x 1.240" L (19.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
EZP-V60156LTBCAP FILM 15UF 10% 600V RADIAL |
902 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 12.8 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
