Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B33331V7805J080CAP FILM 8UF 5% 460VAC RADIAL |
390 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.638" (67.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
BFC241771005CAP FILM 1UF 2% 160VDC RADIAL |
347 |
|
Datasheet |
Radial | 1 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32524Q1336K000CAP FILM 33UF 10% 100VDC RADIAL |
968 |
|
Datasheet |
Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
C4AEHBU5100A11JCAP FILM 10UF 5% 600VDC RADIAL |
549 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
35MU225MC14532CAP FILM 2.2UF 20% 35VDC 1812 |
530 |
|
Datasheet |
1812 (4532 Metric) | 2.2 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
BFC246804685CAP FILM 6.8UF 10% 100VDC RADIAL |
571 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
PHE840ER7470MR03R06L2CAP FILM 4.7UF 20% 760VDC RADIAL |
134 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
B32676E4156K000CAP FILM 15UF 10% 450VDC RADIAL |
2,175 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
715P473512MD3CAP FILM 0.047UF 5% 1.2KVDC RAD |
343 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 475V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.740" Dia x 1.650" L (18.80mm x 41.90mm) | 1.051" (26.70mm) | PC Pins | 1.094" (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C276CAA5100AV0JCAP FILM 10UF 5% 470VAC RADIAL |
171 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
PHE450MR7220JR06L2CAP FILM 2.2UF 5% 630VDC RADIAL |
442 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
R76QW410050H3JCAP FILM 1UF 5% 1KVDC RADIAL |
124 |
|
Datasheet |
Radial | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32654A6335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
104 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
C276CC35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
445 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MKP1848S62070JP2FCAP FILM 20UF 5% 700VDC RADIAL |
655 |
|
Datasheet |
Radial | 20 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.535" W (42.00mm x 39.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
B32756G3126K000CAP FILM 12UF 10% 630VDC RADIAL |
560 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
EZP-Q25226LTACAP FILM 22UF 10% 250VAC RADIAL |
383 |
|
Datasheet |
Radial | 22 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Low ESR |
|
|
B33331V7106J080CAP FILM 10UF 5% 460VAC RADIAL |
392 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 19 mOhms | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 3.031" (77.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
EZP-V60206MTTCAP FILM 20UF 10% 600V RADIAL |
157 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 10.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

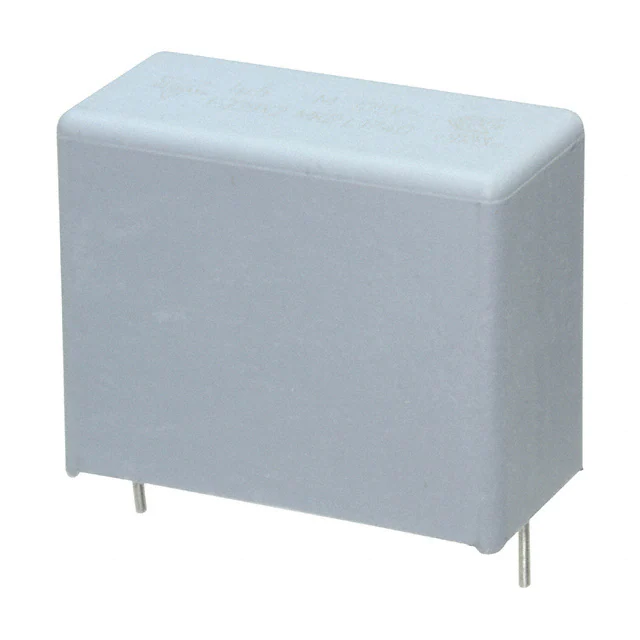

MKP1848610704K2CAP FILM 10UF 5% 700VDC RADIAL |
151 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
