Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

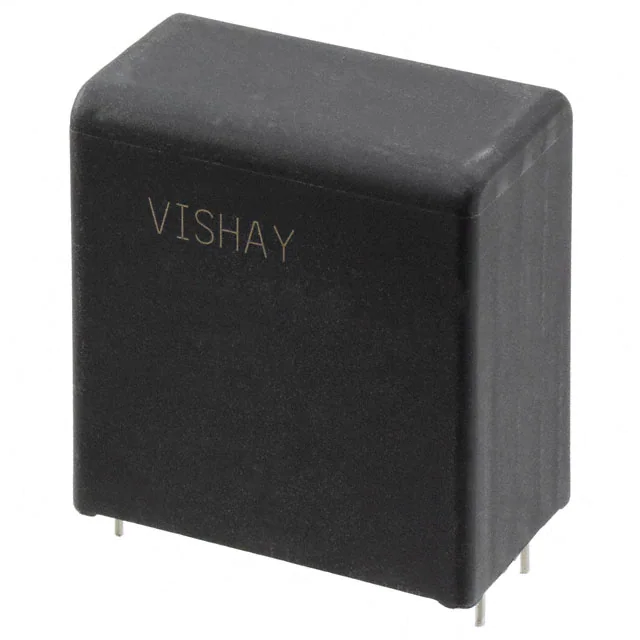

MKP1848C62580JP4CAP FILM 25UF 5% 800VDC RADIAL |
850 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
C4AQOBW5120P3FJCAP FILM 12UF 5% 900VDC RADIAL |
193 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.9 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
PHE450PF7100JF16R06L2CAP FILM 1UF 5% 1KVDC RADIAL |
536 |
|
Datasheet |
Radial | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
EZP-E50206LTACAP FILM 20UF 10% 500VDC RADIAL |
141 |
|
Datasheet |
Radial | 20 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B32676E4206K000CAP FILM 20UF 10% 450VDC RADIAL |
269 |
|
Datasheet |
Radial | 20 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
C4AQQBW4800P3FJCAP FILM 8UF 5% 1.1KVDC RADIAL |
174 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.7 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
F161WP225K050VCAP FILM 2.2UF 10% 50VDC SMD |
5,831 |
|
Datasheet |
Nonstandard | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
BFC233820335CAP FILM 3.3UF 20% 630VDC RADIAL |
1,693 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4AQILW5220A38JCAP FILM 22UF 5% 800VDC RADIAL |
111 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PPA1854100KNCAP FILM 1UF 10% 850VDC AXIAL |
207 |
|
Datasheet |
Axial | 1 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4CAYUC2680AA1JCAP FILM 0.068UF 5% 750VAC AXIAL |
250 |
|
Datasheet |
Axial | 0.068 µF | ±5% | 750V | - | Polypropylene (PP), Metallized | 18.3 mOhms | -40°C ~ 85°C | Through Hole | 0.886" Dia x 1.732" L (22.50mm x 44.00mm) | - | PC Pins | - | Snubber | - | - |
|
R76UR322050H3JCAP FILM 0.22UF 5% 2KVDC RADIAL |
139 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C878BF24200AA4JCAP FILM 2UF 5% 470VAC RADIAL |
355 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
B32926A4565M000CAP FILM 5.6UF 20% 650VDC RADIAL |
211 |
|
Datasheet |
Radial | 5.6 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
B32676E4106K000CAP FILM 10UF 10% 450VDC RADIAL |
743 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
R75TR356050H3JCAP FILM 0.56UF 5% 1.6KVDC RAD |
134 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C276CAA4800AV1JCAP FILM 8UF 5% 470VAC RADIAL |
407 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
FFB16C0205K--CAP FILM 2UF 10% 900VDC RADIAL |
260 |
|
Datasheet |
Radial | 2 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
MKP1848580704K2CAP FILM 8UF 5% 700VDC RADIAL |
909 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
BLH306K801B104DC LINK, THB, 85/85, AEC-Q200 |
415 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.693" W (57.50mm x 43.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
