Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MU105MC14532CAP FILM 1UF 20% 50VDC 1812 |
686 |
|
Datasheet |
1812 (4532 Metric) | 1 µF | ±20% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
25MU335KC14532CAP FILM 3.3UF 10% 25VDC 1812 |
606 |
|
Datasheet |
1812 (4532 Metric) | 3.3 µF | ±10% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

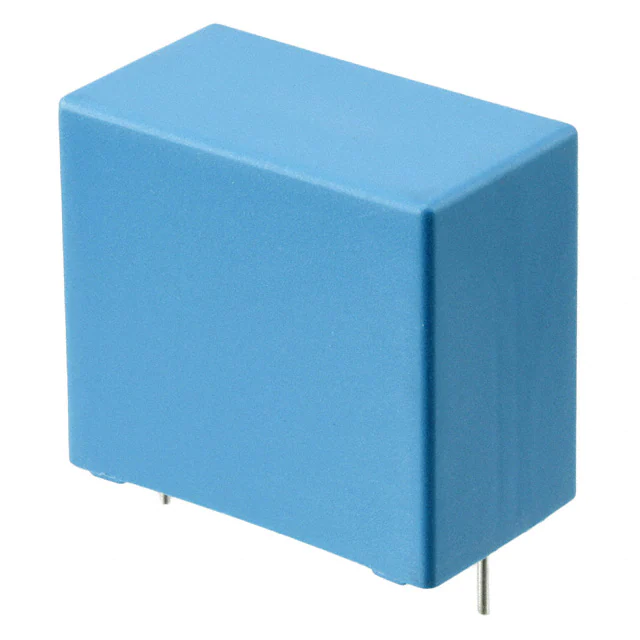

PHE450MF7100JR06L2CAP FILM 1UF 5% 630VDC RADIAL |
174 |
|
Datasheet |
Radial | 1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
B32524R0336K000CAP FILM 33UF 10% 63VDC RADIAL |
566 |
|
Datasheet |
Radial | 33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R41BW410050T0KCAP FILM 1UF 10% 1.5KVDC RADIAL |
174 |
|
Datasheet |
Radial | 1 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
SMC7.3154J50K35TR12CAP FILM 0.15UF 5% 50VDC 2824 |
4,315 |
|
Datasheet |
2824 (7260 Metric) | 0.15 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AQIBW5220M3JJCAP FILM 22UF 5% 800VDC RADIAL |
208 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
16MU225MB23225CAP FILM 2.2UF 20% 16VDC 1210 |
1,713 |
|
Datasheet |
1210 (3225 Metric) | 2.2 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
F861FR475M310ZLH0JCAP FILM 4.7UF 20% 310VAC RADIAL |
760 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
SMR15225J63B12L16.5CBULKCAP FILM 2.2UF 5% 63VDC RADIAL |
148 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
R46KW510050M1KCAP FILM 10UF 10% 560VDC RADIAL |
111 |
|
Datasheet |
Radial | 10 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
_06x00KSSD.jpg)
|
MKP4F046806G00JSSDCAP FILM 6.8UF 5% 250VDC RAD |
126 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
BFC238350333CAP FILM 0.033UF 5% 1.6KVDC RAD |
1,974 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
DME2W4P7K-FCAP FILM 4.7UF 10% 250VDC RADIAL |
26,067 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.492" W (26.00mm x 12.50mm) | 0.945" (24.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32924A4225M000CAP FILM 2.2UF 20% 650VDC RADIAL |
158 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
MKP1847C610355Y2MKP 10F 10% 350VAC PITCH 52,5 |
593 |
|
Datasheet |
Radial | 10 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
R75PR427050H3JCAP FILM 2.7UF 5% 630VDC RADIAL |
301 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 8.8 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
940C30S47K-FCAP FILM 0.047UF 10% 3KVDC AXIAL |
121 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.650" Dia x 1.811" L (16.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
940C16P15K-FCAP FILM 0.15UF 1.6KVDC AXIAL |
1,521 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.846" Dia x 1.339" L (21.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
PSB2123470KHSCAP FILM 0.47UF 10% 1.2KVDC RAD |
384 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
