Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R474N322050A1KCAP FILM 0.22UF 10% 1KVDC RADIAL |
238 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-F6123HLCAP FILM 0.012UF 3% 630VDC RAD |
135 |
|
Datasheet |
Radial | 0.012 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.386" (9.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
B32560J1225K000CAP FILM 2.2UF 10% 100VDC 2DIP |
6,715 |
|
Datasheet |
2-DIP | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.335" W (9.00mm x 8.50mm) | 0.362" (9.20mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECQ-E6125KFCAP FILM 1.2UF 10% 630VDC RADIAL |
2,412 |
|
Datasheet |
Radial | 1.2 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32023A3823M000CAP FILM 0.082UF 20% 1.5KVDC RAD |
1,564 |
|
Datasheet |
Radial | 0.082 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
MKX2AW35605G00JSC9CAP FILM 0.56UF 5% 630VDC RAD |
690 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R586I256050T0KCAP FILM 600VAC(X1) 0.056 UF 10% |
443 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.642" (16.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

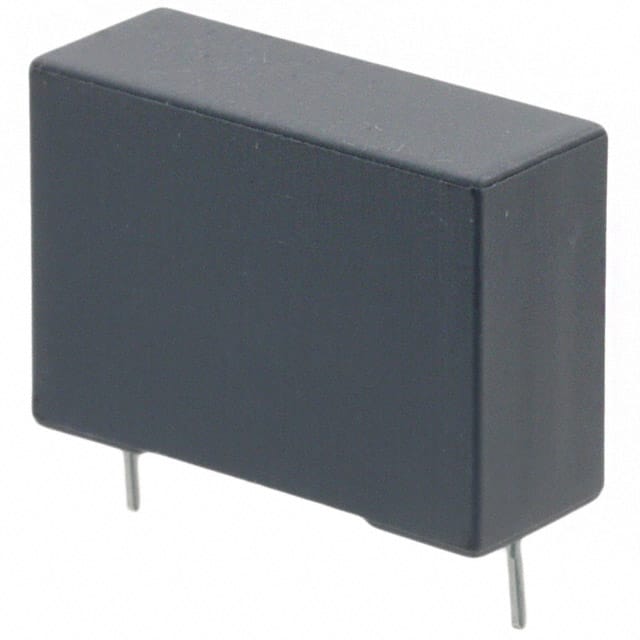

R60IN4220AA30KCAP FILM 2.2UF 10% 250VDC RADIAL |
262 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R46KR415040M1KCAP FILM 1.5UF 10% 560VDC RADIAL |
226 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F4563JLCAP FILM 0.056UF 5% 400VDC RAD |
111 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.260" W (12.50mm x 6.60mm) | 0.429" (10.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
BFC237012334CAP FILM 0.33UF 5% 63VDC RADIAL |
14,843 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
PME271M447MR30CAP FILM 4700PF 20% 275VAC RAD |
1,208 |
|
Datasheet |
Radial | 4700 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC237041104CAP FILM 0.1UF 10% 250VDC RADIAL |
1,014 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
BFC233921103CAP FILM 10000PF 20% 630VDC RAD |
926 |
|
Datasheet |
Radial | 10000 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75II41004040JCAP FILM 1UF 5% 250VDC RADIAL |
396 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME271M533MR30CAP FILM 0.033UF 20% 275VAC RAD |
374 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R71XI422050H0KFILM, RADIAL, PULSE, SINGLE META |
344 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R533I382050P0MCAP FILM 0.82UF 20% 630VDC RAD |
227 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R73TN21504000JCAP FILM 0.015UF 5% 1.6KVDC RAD |
223 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60EN42205030KCAP FILM 2.2UF 10% 100VDC RADIAL |
162 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
