Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1T024706A00JSSDCAP FILM 0.047UF 5% 1.6KVDC RAD |
1,007 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
PME271YB5150MR30CAP FILM 0.015UF 20% 1KVDC RAD |
979 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.433" (11.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|

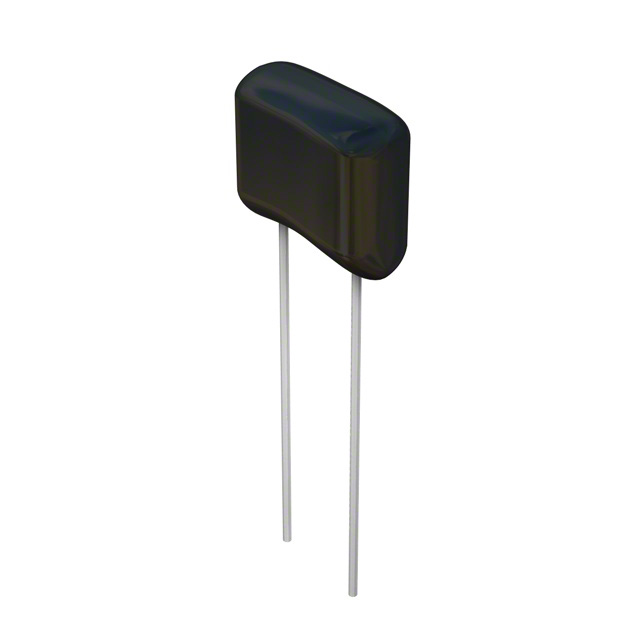

DME4S68K-FCAP FILM 0.068UF 10% 400VDC RAD |
802 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R71VN41504030KCAP FILM 1.5UF 10% 520VDC RADIAL |
642 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
FKP1O122205F00JSSDCAP FILM 0.022UF 5% 1KVDC RAD |
1,900 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
160472K630C-FCAP FILM 4700PF 10% 630VDC RAD |
1,684 |
|
Datasheet |
Radial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
SMDTC04150TB00KQ00CAP FILM 1.5UF 10% 40VAC 2824 |
999 |
|
Datasheet |
2824 (7260 Metric) | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
ECW-F4753JLCAP FILM 0.075UF 5% 400VDC RAD |
985 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.457" (11.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
C4AQQLU4150A11JCAP FILM 1.5UF 5% 1.1KVDC RADIAL |
470 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 26 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECW-F4104JLCAP FILM 0.1UF 5% 400VDC RADIAL |
352 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.256" W (15.50mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
B32924C3105K000CAP FILM 1UF 10% 630VDC RADIAL |
1,388 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32654A6684J000CAP FILM 0.68UF 5% 630VDC RADIAL |
1,278 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
ECW-F6823HLCAP FILM 0.082UF 3% 630VDC RAD |
1,040 |
|
Datasheet |
Radial | 0.082 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.315" W (15.50mm x 8.00mm) | 0.547" (13.90mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECW-F6104HLCAP FILM 0.1UF 3% 630VDC RADIAL |
924 |
|
Datasheet |
Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.303" W (18.00mm x 7.70mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
PHE844RD6150MR06L2CAP FILM 0.15UF 20% 1KVDC RADIAL |
867 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC237546561CAP FILM 560PF 5% 2KVDC RADIAL |
656 |
|
Datasheet |
Radial | 560 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
ECW-F6203HLBCAP FILM 0.02UF 3% 630VDC RADIAL |
262 |
|
Datasheet |
Radial | 0.02 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.563" (14.30mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
R60EI42204030KCAP FILM 2.2UF 10% 100VDC RADIAL |
224 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2J225KCAP FILM 2.2UF 10% 630VDC RADIAL |
4,274 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.630" W (26.00mm x 16.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
167104J100A-FCAP FILM 0.1UF 5% 100VDC RADIAL |
1,677 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
