Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463I333050M1KCAP FILM 0.33UF 10% 630VDC RAD |
695 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R71PN34704030KCAP FILM 0.47UF 10% 630VDC RAD |
581 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
R523I347050P3KCAP FILM 0.47UF 10% 630VDC RAD |
551 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200, X2 | - |
|
R60IF3470506AJCAP FILM 0.47UF 5% 250VDC RADIAL |
432 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|

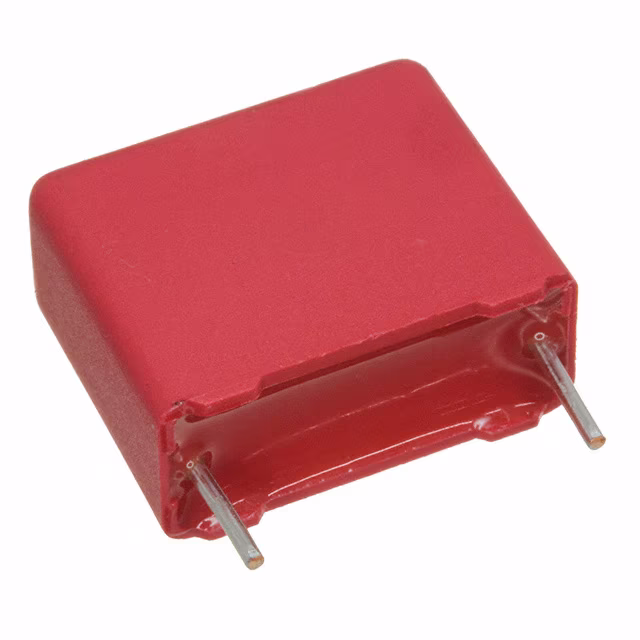

MKP1T023304F00KSSDCAP FILM 0.033UF 10% 1.6KVDC RAD |
330 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
ECQ-E4224JFCAP FILM 0.22UF 5% 400VDC RADIAL |
321 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R46KN356000P1MCAP FILM 0.56UF 20% 560VDC RAD |
113 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE450MB5220JR06CAP FILM 0.022UF 5% 630VDC RAD |
22,228 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32522C3474J289CAP FILM 0.47UF 5% 250VDC RADIAL |
18,053 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-U2682V16CAP FILM 6800PF 5% 250VDC 1913 |
9,943 |
|
Datasheet |
1913 (4833 Metric) | 6800 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECW-U2123JC9CAP FILM 0.012UF 5% 250VDC 1913 |
7,705 |
|
Datasheet |
1913 (4833 Metric) | 0.012 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R463N347000N0KCAP FILM 0.47UF 10% 630VDC RAD |
7,599 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32912A3683K000CAP FILM 0.068UF 10% 760VDC RAD |
5,858 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
ECW-U2472JC9CAP FILM 4700PF 5% 250VDC 1913 |
5,270 |
|
Datasheet |
1913 (4833 Metric) | 4700 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U2472V16CAP FILM 4700PF 5% 250VDC 1913 |
3,230 |
|
Datasheet |
1913 (4833 Metric) | 4700 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R463I347050M1KCAP FILM 0.47UF 10% 630VDC RAD |
3,032 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426KB6100JR06CAP FILM 0.1UF 5% 400VDC RADIAL |
8,548 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
SMR5223J100J01L16.5CBULKCAP FILM 0.022UF 5% 100VDC RAD |
2,507 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
B32912A3223K000CAP FILM 0.022UF 10% 760VDC RAD |
2,478 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R60PI2470AA30JCAP FILM 0.047UF 5% 630VDC RAD |
2,012 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
