Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R523F310050P0KCAP FILM 0.1UF 10% 630VDC RADIAL |
3,372 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.484" (12.30mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450MB5100JR06CAP FILM 10000PF 5% 630VDC RAD |
3,096 |
|
Datasheet |
Radial | 10000 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32522C3684K189CAP FILM 0.68UF 10% 250VDC RAD |
2,463 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
FVD36H0105M2LCAP FILM 1UF 20% 305VAC RADIAL |
2,288 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32653A0473K000CAP FILM 0.047UF 10% 1KVDC RAD |
2,155 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
SMR5222J50J01L16.5CBULKCAP FILM 2200PF 5% 50VDC RADIAL |
2,010 |
|
Datasheet |
Radial | 2200 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
BFC237390042CAP FILM 0.47UF 10% 250VDC RAD |
1,914 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
SMR5222J100J01L16.5CBULKCAP FILM 2200PF 5% 100VDC RADIAL |
1,885 |
|
Datasheet |
Radial | 2200 pF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R76TI227050H4JCAP FILM 0.027UF 5% 1.6KVDC RAD |
1,500 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 71 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

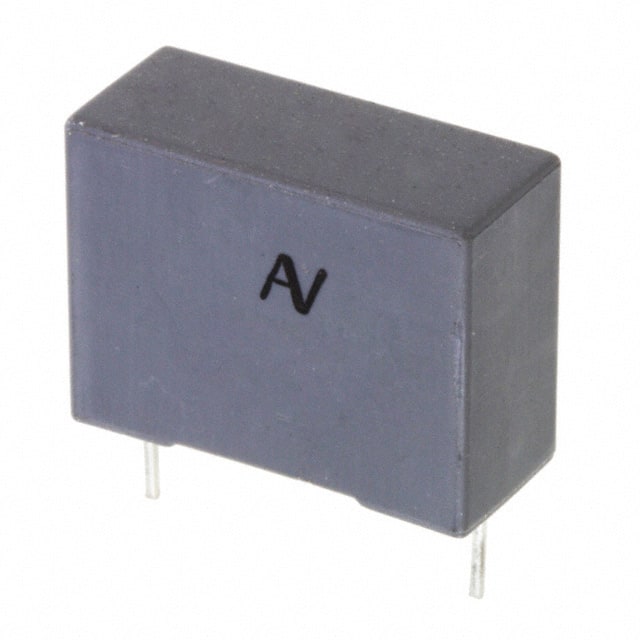

R71MI3470AA00KCAP FILM 0.47UF 10% 420VDC RAD |
1,419 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
R413D1470JMT0KCAP FILM 4700PF 10% 1.5KVDC RAD |
709 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-UBAF104V2CAP FILM 0.1UF 20% 300VAC RADIAL |
537 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.866" (22.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1 | - |
|
R75II34704040JCAP FILM 0.47UF 5% 250VDC RADIAL |
489 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75UI227050H3JCAP FILM 0.027UF 5% 2KVDC RADIAL |
104 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 29.5 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32922C3474M289CAP FILM 0.47UF 20% 630VDC RAD |
9,826 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32621A6333K289CAP FILM 0.033UF 10% 630VDC RAD |
9,686 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
BFC233868396CAP FILM 2200PF 20% 1KVDC RADIAL |
6,463 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
F881KM472M300LCAP FILM 4700PF 20% 1KVDC RADIAL |
6,415 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | - | - |
|
B81123C1102M289CAP FILM 1000PF 20% 500VAC RAD |
5,125 |
|
Datasheet |
Radial | 1000 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
|
B32922C3474M189CAP FILM 0.47UF 20% 630VDC RAD |
4,839 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
