Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B81123C1152M189CAP FILM 1500PF 20% 500VAC RAD |
4,211 |
|
Datasheet |
Radial | 1500 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
250MPH224JCAP FILM 0.22UF 5% 250VDC RADIAL |
3,770 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.413" L x 0.335" W (10.50mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | Low ESR |
|
R463N347000N0MCAP FILM 0.47UF 20% 630VDC RAD |
3,468 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MMK5474K63J02L4BULKCAP FILM 0.47UF 10% 63VDC RADIAL |
2,928 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECW-H12152JVCAP FILM 1500PF 5% 1.25KVDC RAD |
1,958 |
|
Datasheet |
Radial | 1500 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32671P6394K000CAP FILM 0.39UF 10% 630VDC RAD |
1,940 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.689" (17.50mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
R73PI21504000JCAP FILM 0.015UF 5% 630VDC RAD |
12 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75UI218050H3JCAP FILM 0.018UF 5% 2KVDC RADIAL |
935 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 44.2 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.633" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32923C3224M189CAP FILM 0.22UF 20% 630VDC RAD |
931 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76IF2470SE30JCAP FILM 0.047UF 5% 250VDC RAD |
872 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
-Series.jpg)
|
ECW-FD2W155KCAP FILM 1.5UF 10% 450VDC RADIAL |
795 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.366" W (17.50mm x 9.30mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75UN247050H3JCAP FILM 0.047UF 5% 2KVDC RADIAL |
741 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 16.9 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC233910154CAP FILM 0.15UF 10% 630VDC RAD |
575 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75PN31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
231 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECH-U1H122GB5CAP FILM 1200PF 2% 50VDC 0805 |
165,542 |
|
Datasheet |
0805 (2012 Metric) | 1200 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|

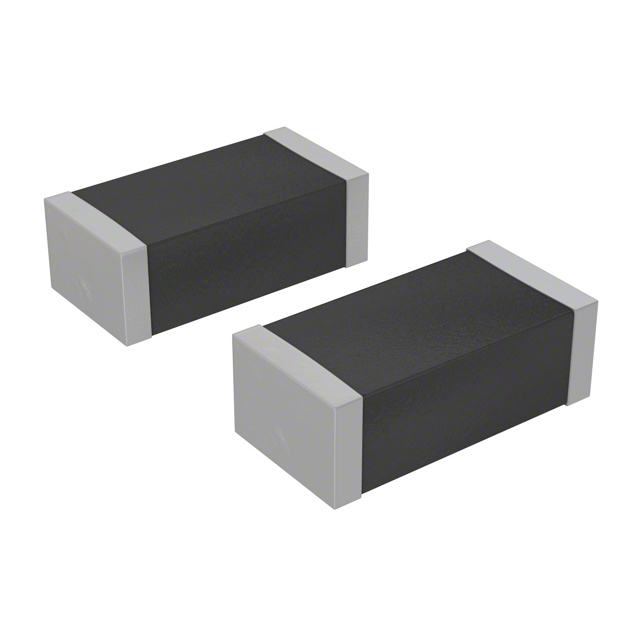

FCP1206H103J-H2CAP FILM 10000PF 5% 50VDC 1206 |
9,515 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
|
ECH-U1H101GB5CAP FILM 100PF 2% 50VDC 0805 |
4,272 |
|
Datasheet |
0805 (2012 Metric) | 100 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32522C3684K000CAP FILM 0.68UF 10% 250VDC RAD |
4,000 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
PHE450KA5100JR05CAP FILM 10000PF 5% 400VDC RAD |
3,596 |
|
Datasheet |
Radial | 10000 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
B32653A6224J000CAP FILM 0.22UF 5% 630VDC RADIAL |
3,584 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
