Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238320473CAP FILM 0.047UF 5% 630VDC RAD |
1,416 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
B32529C0155K000CAP FILM 1.5UF 10% 63VDC RADIAL |
1,400 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.295" L x 0.236" W (7.50mm x 6.00mm) | 0.413" (10.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-H16182JVCAP FILM 1800PF 5% 1.6KVDC RAD |
1,051 |
|
Datasheet |
Radial | 1800 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16122JVCAP FILM 1200PF 5% 1.6KVDC RAD |
1,024 |
|
Datasheet |
Radial | 1200 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E6104JFWCAP FILM 0.1UF 5% 630VDC RADIAL |
953 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.748" (19.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
ECW-FD2J224KQCAP FILM 0.22UF 10% 630VDC RAD |
810 |
|
Datasheet |
Radial | 0.22 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.319" W (12.60mm x 8.10mm) | 0.646" (16.40mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R66ED4100Z37AKCAP FILM 1UF 10% 100VDC RADIAL |
687 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
890334026024CSCAP FILM 0.82UF 10% 310VAC RAD |
529 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KI333000N0MCAP FILM 0.33UF 20% 560VDC RAD |
498 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-H8393HACAP FILM 0.039UF 3% 800VDC RAD |
407 |
|
Datasheet |
Radial | 0.039 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618" L x 0.350" W (15.70mm x 8.90mm) | 0.583" (14.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
B32522C6334JCAP FILM 0.33UF 5% 400VDC RADIAL |
347 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
ECW-H16272JVCAP FILM 2700PF 5% 1.6KVDC RAD |
326 |
|
Datasheet |
Radial | 2700 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
 Series.jpg)
|
ECW-FE2J684JCAP FILM 0.68UF 5% 630VDC RADIAL |
281 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.433" W (17.50mm x 11.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

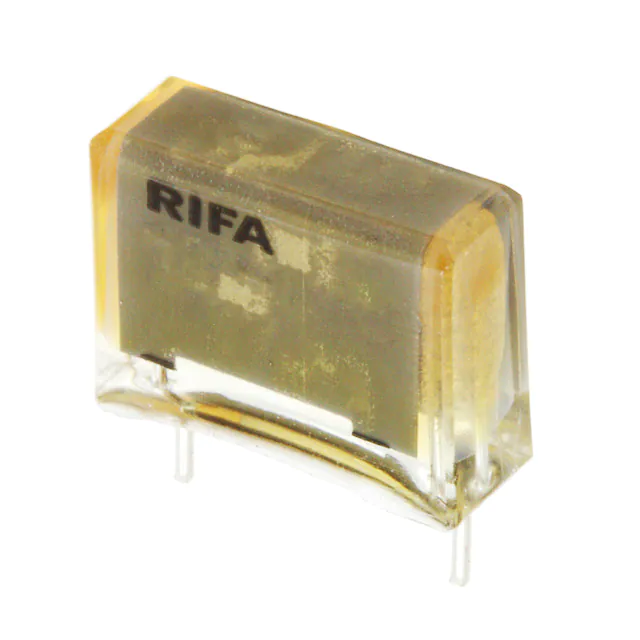

PME271Y447MR04CAP FILM 4700PF 20% 1KVDC RADIAL |
4,249 |
|
Datasheet |
Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
|
R4Y5I11505000KCAP FILM 500VAC Y1 1500PF RADIAL |
3,390 |
|
Datasheet |
Radial | 1500 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
R533I315050P0KCAP FILM 0.15UF 10% 630VDC RAD |
3,350 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC237892472CAP FILM 4700PF 5% 2KVDC RADIAL |
2,745 |
|
Datasheet |
Radial | 4700 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|

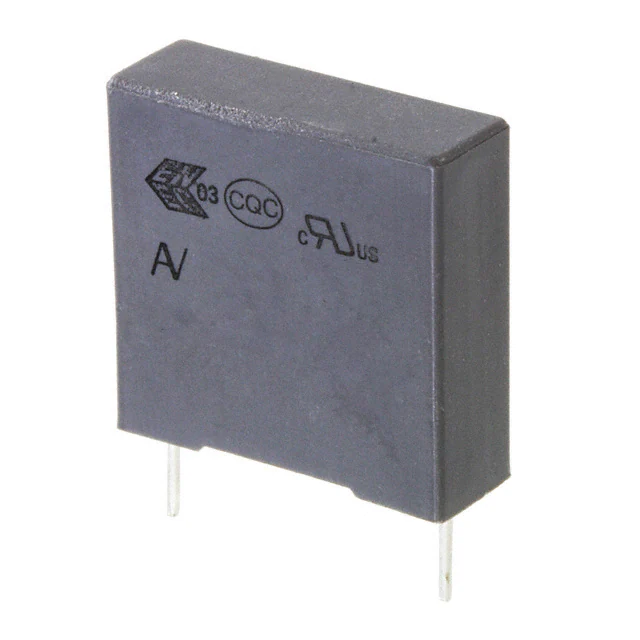

R46KI333000P2MCAP FILM 0.33UF 20% 560VDC RAD |
2,378 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
BFC233910104CAP FILM 0.1UF 10% 630VDC RADIAL |
1,877 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECQ-E6104JF3CAP FILM 0.1UF 5% 630VDC RADIAL |
1,683 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.748" (19.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
