Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP0G003300B00KSSDCAP FILM 330PF 10% 400VDC RAD |
4,167 |
|
Datasheet |
Radial | 330 pF | ±10% | 200V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F861KJ223M310ACAP FILM 0.022UF 20% 630VDC RAD |
4,004 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
B32652A7103J000CAP FILM 10000PF 5% 1.25KVDC RAD |
3,873 |
|
Datasheet |
Radial | 10000 pF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
R76QI210050H4JCAP FILM 10000PF 5% 1KVDC RAD |
3,640 |
|
Datasheet |
Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 191 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413F12205000MCAP FILM 2200PF 20% 1KVDC RADIAL |
3,439 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
.jpg)
|
ECH-U1H183GX5CAP FILM 0.018UF 2% 50VDC 1210 |
3,431 |
|
Datasheet |
1210 (3225 Metric) | 0.018 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R75UI127050H4JCAP FILM 2700PF 5% 2KVDC RADIAL |
3,270 |
|
Datasheet |
Radial | 2700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 294.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECH-U1C103JB5CAP FILM 10000PF 5% 16VDC 0805 |
3,000 |
|
Datasheet |
0805 (2012 Metric) | 10000 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
B32671L0123J000CAP FILM 0.012UF 5% 1KVDC RADIAL |
2,542 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I24705001KCAP FILM 0.047UF 10% 630VDC RAD |
1,961 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32620A4682J000CAP FILM 6800PF 5% 400VDC RADIAL |
1,766 |
|
Datasheet |
Radial | 6800 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
R413F11005000KCAP FILM 1000PF 10% 1KVDC RADIAL |
1,750 |
|
Datasheet |
Radial | 1000 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
 Series Style Straight.jpg)
|
ECW-FA2J124JCAP FILM 0.12UF 5% 630VDC RADIAL |
1,484 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.425" (10.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
R413I14700000MCAP FILM 4700PF 20% 1KVDC RADIAL |
1,417 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

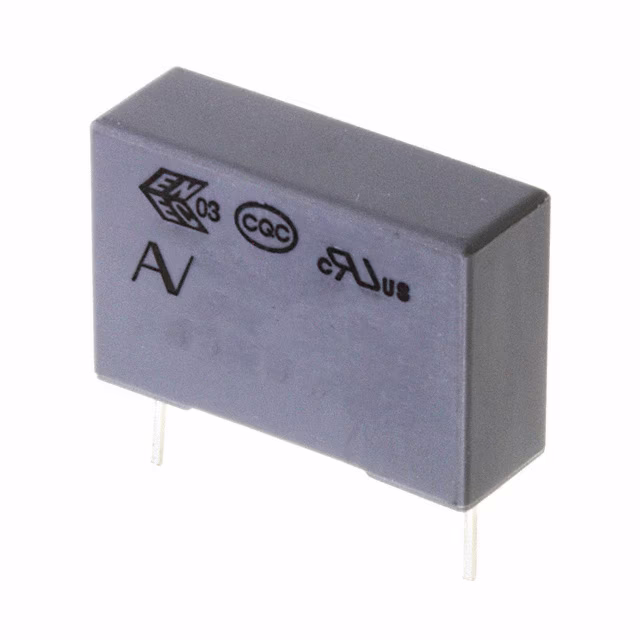

R46KI315000M2KCAP FILM 0.15UF 10% 560VDC RAD |
1,376 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF223KCAP FILM 0.022UF 10% 275VAC RADI |
1,363 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|
R413F168050T0KCAP FILM 6800PF 10% 1.5KVDC RAD |
1,147 |
|
Datasheet |
Radial | 6800 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
FKP3G012202C00KSSDCAP FILM 2200PF 10% 400VDC RAD |
6,021 |
|
Datasheet |
Radial | 2200 pF | ±10% | 250V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32529C0684K289CAP FILM 0.68UF 10% 63VDC RADIAL |
5,312 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC233868141CAP FILM 4700PF 20% 1KVDC RADIAL |
5,100 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
