Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS0C021500B00MSSDCAP FILM 0.015UF 20% 63VDC RAD |
21,084 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
B32621A6222K189CAP FILM 2200PF 10% 630VDC RAD |
10,164 |
|
Datasheet |
Radial | 2200 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.276" (7.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MKP4J021002B00KSC9CAP FILM 10000PF 10% 630VDC RAD |
8,130 |
|
Datasheet |
Radial | 10000 pF | ±10% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
B32923C3154M000CAP FILM 0.15UF 20% 630VDC RAD |
5,652 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF683MCAP FILM 0.068UF 20% 275VAC RADI |
5,401 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32620A3223J000CAP FILM 0.022UF 5% 250VDC RAD |
5,081 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
ECW-U2102KC9CAP FILM 1000PF 10% 250VDC 1913 |
4,033 |
|
Datasheet |
1913 (4833 Metric) | 1000 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
B32620A6222J000CAP FILM 2200PF 5% 630VDC RADIAL |
3,933 |
|
Datasheet |
Radial | 2200 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
R76UI112050H3JCAP FILM 1200PF 5% 2KVDC RAD |
3,388 |
|
Datasheet |
Radial | 1200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 1.592 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32652A4104K000CAP FILM 0.1UF 10% 400VDC RADIAL |
3,093 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
|
B32621A3222J000CAP FILM 2200PF 5% 250VDC RADIAL |
2,534 |
|
Datasheet |
Radial | 2200 pF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.276" (7.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
103MPR630KCAP FILM 10000PF 10% 630VDC RAD |
2,493 |
|
Datasheet |
Radial | 10000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering | - | Low ESR |
|
|
B32521C1334J000CAP FILM 0.33UF 5% 100VDC RADIAL |
2,224 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.276" (7.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R41BI222050T0KCAP FILM 0.022UF 10% 1.5KVDC RAD |
1,999 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R82DC3470Z360KCAP FILM 0.47UF 10% 63VDC RADIAL |
1,941 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
BFC237086223CAP FILM 0.022UF 5% 100VDC RAD |
1,655 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
 Series.jpg)
|
ECW-FE2W104KCAP FILM 0.1UF 10% 450VDC RADIAL |
1,545 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
473MKP275KDCAP FILM 0.047UF 10% 310VAC RAD |
1,465 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.366" (9.30mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2W124J4CAP FILM 0.12UF 5% 450VDC RADIAL |
1,362 |
|
Datasheet |
Radial | 0.12 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.551" (14.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

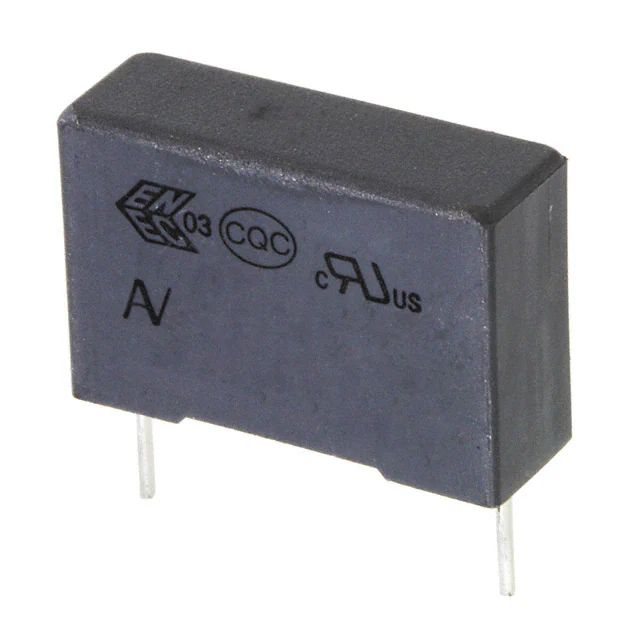

R46KI315000M2MCAP FILM 0.15UF 20% 560VDC RAD |
1,233 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
