Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463I315040H2MCAP FILM 0.15UF 20% 630VDC RAD |
1,213 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U1273JC9CAP FILM 0.027UF 5% 100VDC 1913 |
1,093 |
|
Datasheet |
1913 (4833 Metric) | 0.027 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
R71VF26804030KCAP FILM 0.068UF 10% 520VDC RAD |
1,032 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
B32529D3224K000CAP FILM 0.22UF 10% 250VDC RAD |
10,836 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32520C0474K000CAP FILM 0.47UF 10% 63VDC RADIAL |
8,216 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32021H3222K000CAP FILM 2200PF 10% 1.5KVDC RAD |
7,937 |
|
Datasheet |
Radial | 2200 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
R46KF210050N0KCAP FILM 10000PF 10% 560VDC RAD |
6,207 |
|
Datasheet |
Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK5104J63J01L15.0ABULKCAP FILM 0.1UF 5% 63VDC RADIAL |
4,749 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
LDEEA1330JA0N00CAP FILM 3300PF 5% 100VDC 1206 |
4,561 |
|
Datasheet |
1206 (3216 Metric) | 3300 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32652A6473K000CAP FILM 0.047UF 10% 630VDC RAD |
3,994 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32621A3332J000CAP FILM 3300PF 5% 250VDC RADIAL |
3,927 |
|
Datasheet |
Radial | 3300 pF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R76QF147050H3JCAP FILM 4700PF 5% 1KVDC RADIAL |
3,492 |
|
Datasheet |
Radial | 4700 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 135 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2224JB3CAP FILM 0.22UF 5% 250VDC RADIAL |
2,805 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.594" (15.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
FKP3O112203D00KSSDCAP FILM 2200PF 10% 1KVDC RAD |
2,691 |
|
Datasheet |
Radial | 2200 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KI3100DQM1MCAP FILM 0.1UF 20% 560VDC RADIAL |
2,383 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF223MCAP FILM 0.022UF 20% 275VAC RADI |
1,966 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|
R463I24700001MCAP FILM 0.047UF 20% 630VDC RAD |
1,795 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

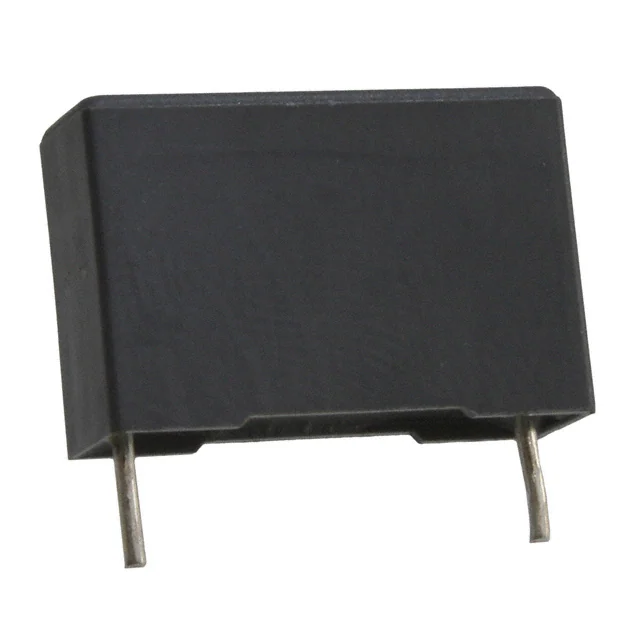

R75QI2330AA00JCAP FILM 0.033UF 5% 1KVDC RADIAL |
1,750 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MKS2F033301K00MSSDCAP FILM 0.33UF 20% 250VDC RAD |
1,543 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32672L1822J000CAP FILM 8200PF 5% 1.6KVDC RAD |
1,470 |
|
Datasheet |
Radial | 8200 pF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
