Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413I21005000MCAP FILM 10000PF 20% 1KVDC RAD |
2,000 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
MMK5224K100J02L4BULKCAP FILM 0.22UF 10% 100VDC RAD |
1,933 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
R413I215050T1KCAP FILM 0.015UF 10% 1.5KVDC RAD |
1,910 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R75MD2100AA40JCAP FILM 10000PF 5% 400VDC RAD |
1,842 |
|
Datasheet |
Radial | 10000 pF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32620A0152J000CAP FILM 1500PF 5% 1KVDC RADIAL |
1,685 |
|
Datasheet |
Radial | 1500 pF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
R46KF247040P0MCAP FILM 0.047UF 20% 560VDC RAD |
1,553 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
B32922Y2474K000FILM CAP MKP X2 - COMPACT, 0.47U |
1,531 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2274JFCAP FILM 0.27UF 5% 250VDC RADIAL |
1,512 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R463F247040N0MCAP FILM 0.047UF 20% 630VDC RAD |
1,445 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413I13300000MCAP FILM 3300PF 20% 1KVDC RADIAL |
1,302 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R75IF315050H3JCAP FILM 0.15UF 5% 250VDC RADIAL |
1,188 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 140V | 250V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I22204001MCAP FILM 0.022UF 20% 630VDC RAD |
1,172 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

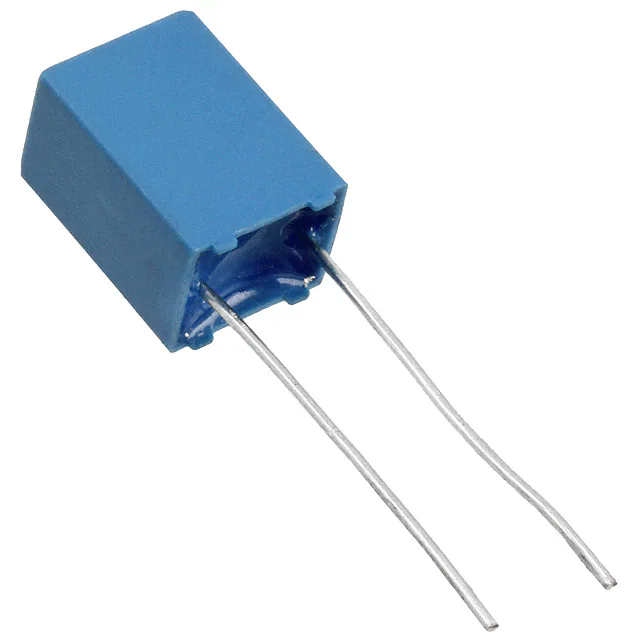

B32529C1684K000CAP FILM 0.68UF 10% 100VDC RAD |
35,833 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.295" L x 0.236" W (7.50mm x 6.00mm) | 0.413" (10.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
FKP3F011002B00KSSDCAP FILM 1000PF 10% 250VDC RAD |
8,003 |
|
Datasheet |
Radial | 1000 pF | ±10% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE426MA5150JR05CAP FILM 0.015UF 5% 630VDC RAD |
7,895 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32652A1472K000CAP FILM 4700PF 10% 1.6KVDC RAD |
6,875 |
|
Datasheet |
Radial | 4700 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32521E6104K000CAP FILM 0.1UF 10% 400VDC RADIAL |
6,820 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
FKP3G011002B00KSSDCAP FILM 1000PF 10% 400VDC RAD |
6,068 |
|
Datasheet |
Radial | 1000 pF | ±10% | 250V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKS4F021003C00JSSDCAP FILM 10000PF 5% 250VDC RAD |
5,894 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463I310050H1MCAP FILM 0.1UF 20% 630VDC RADIAL |
5,535 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
