FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM170HM45CT3AGMOSFET 4N-CH 1700V 64A |
3 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 64A (Tc) | 45mOhm @ 30A, 20V | 3.2V @ 2.5mA | 178nC @ 20V | 3300pF @ 1000V | 319W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
MSCSM170DUM11T3AGMOSFET 2N-CH 1700V 240A SP3F |
5 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1700V (1.7kV) | 240A (Tc) | 11.3mOhm @ 120A, 20V | 3.2V @ 10mA | 712nC @ 20V | 13200pF @ 1000V | 1140W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
BSM120D12P2C005MOSFET 2N-CH 1200V 120A MODULE |
7 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 120A (Tc) | - | 2.7V @ 22mA | - | 14000pF @ 10V | 780W | -40°C ~ 150°C (TJ) | - | - | - | Module |
|
MSCSM120TAM31CT3AGMOSFET 6N-CH 1200V 89A SP3F |
3 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | 3020pF @ 1000V | 395W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM120DUM08T3AGMOSFET 2N-CH 1200V 337A SP3F |
3 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 337A (Tc) | 7.8mOhm @ 80A, 20V | 2.8V @ 4mA | 928nC @ 20V | 12100pF @ 1000V | 1409W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170TLM23C3AGMOSFET 4N-CH 1700V 124A SP3F |
6 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1700V (1.7kV) | 124A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 602W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170TAM45CT3AGMOSFET 6N-CH 1700V 64A |
16 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1700V (1.7kV) | 64A (Tc) | 45mOhm @ 30A, 20V | 3.2V @ 2.5mA | 178nC @ 20V | 3300pF @ 1000V | 319W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM15CT3AGMOSFET 2N-CH 1700V 181A |
16 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 181A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 862W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
MSCSM120AM08CT3AGMOSFET 2N-CH 1200V 337A SP3F |
2 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 337A (Tc) | 7.8mOhm @ 160A, 20V | 2.8V @ 4mA | 928nC @ 20V | 12.08pF @ 1000V | 1.409kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
FF2MR12W3M1HB11BPSA1MOSFET 4N-CH 1200V AG-EASY3B |
17 |
|
Datasheet |
EasyPACK™, CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 400A (Tj) | 2.27mOhm @ 400A, 18V | 5.15V @ 224mA | 1600nC @ 18V | 48400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-EASY3B |
|
|
MSCSM70DUM025AGMOSFET 2N-CH 700V 689A |
5 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA | 1290nC @ 20V | 27000pF @ 700V | 1882W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
BSM180D12P2E002MOSFET 2N-CH 1200V 204A MODULE |
8 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 204A (Tc) | - | 4V @ 35.2mA | - | 18000pF @ 10V | 1360W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
MSCSM120DUM042AGMOSFET 2N-CH 1200V 495A |
2 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1000V | 2031W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM23CTPAGMOSFET 6N-CH 1700V 122A |
3 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 122A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 588W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

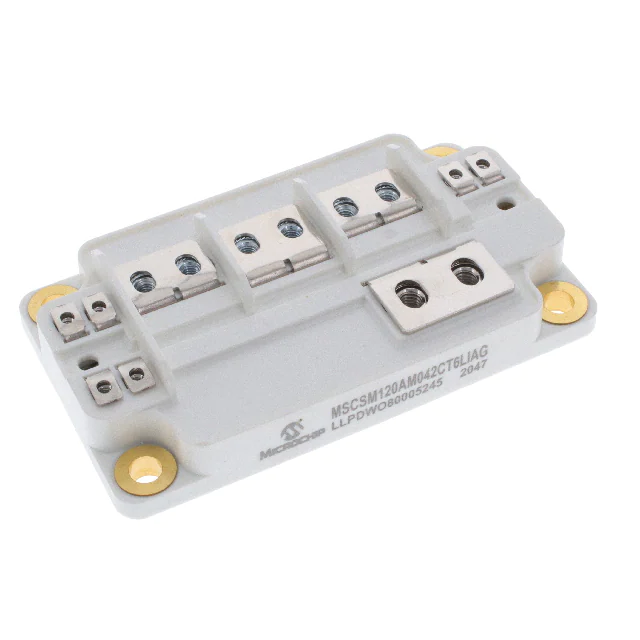

MSCSM120AM042CT6LIAGMOSFET 2N-CH 1200V 495A SP6C LI |
4 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1kV | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCSM120AM042CD3AGMOSFET 2N-CH 1200V 495A D3 |
3 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | D3 |
|
|
MSCSM70TLM05CAGMOSFET 4N-CH 700V 464A SP6C |
7 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 700V | 464A (Tc) | 4.8mOhm @ 160A, 20V | 2.4V @ 16mA | 860nC @ 20V | 18000pF @ 700V | 1277W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM170HM12CAGMOSFET 4N-CH 1700V 179A |
13 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM058CT6AGMOSFET 2N-CH 1700V 353A |
3 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1.642kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM15CTPAGMOSFET 6N-CH 1700V 179A |
8 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
