FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120TAM11CTPAGMOSFET 6N-CH 1200V 251A SP6-P |
2 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 251A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1.042kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM120AM03CT6LIAGMOSFET 2N-CH 1200V 805A SP6C LI |
2 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 805A (Tc) | 3.1mOhm @ 400A, 20V | 2.8V @ 10mA | 2320nC @ 20V | 30200pF @ 1kV | 3.215kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
MSCSM170AM039CD3AGMOSFET 2N-CH 1700V 523A |
2 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 523A (Tc) | 5mOhm @ 270A, 20V | 3.3V @ 22.5mA | 1602nC @ 20V | 29700pF @ 1000V | 2.4kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
BSM600D12P3G001MOSFET 2N-CH 1200V 600A MODULE |
7 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 600A (Tc) | - | 5.6V @ 182mA | - | 31000pF @ 10V | 2450W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
FS03MR12A6MA1LBBPSA1MOSFET 6N-CH 1200V AG-HYBRIDD |
2 |
|
Datasheet |
HybridPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 400A | 3.7mOhm @ 400A, 15V | 5.55V @ 240mA | 1320nC @ 15V | 42500pF @ 600V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-HYBRIDD-2 |
|

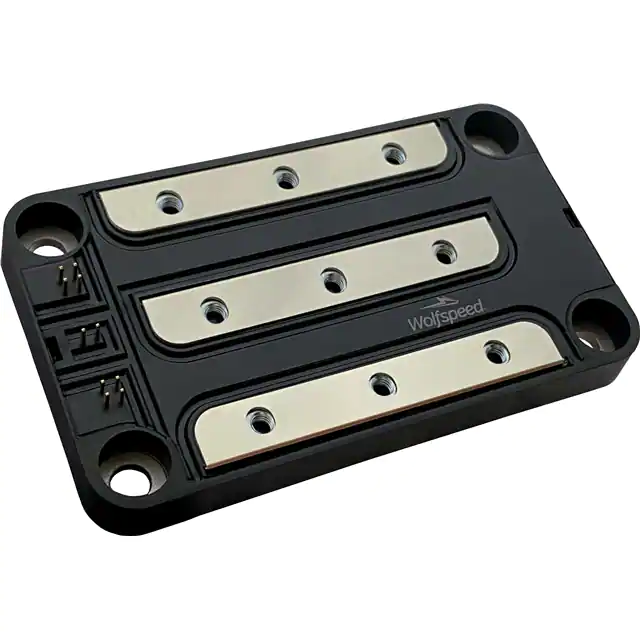

CAS480M12HM3MOSFET 2N-CH 1200V 640A MODULE |
1 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 640A (Tc) | 2.97mOhm @ 480A, 15V | 3.6V @ 160mA | 1590nC @ 15V | 43100pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
MCQ4503B-TPMOSFET N/P-CH 30V 5.6A 8SOP |
362 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 5.6A (Ta), 4.4A (Ta) | 25mOhm @ 5.6A, 10V | 1.5V @ 250µA, 1.4V @ 250µA | 4.8nC @ 4.5V, 7.2nC @ 10V | 535pF @ 15V, 680pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
DMN2028UFDH-7MOSFET 2N-CH 20V 6.8A POWERDI |
118 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 6.8A | 20mOhm @ 4A, 10V | 1V @ 250µA | 8.5nC @ 4.5V | 151pF @ 10V | 1.1W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3030-8 |
|
SIS932EDN-T1-GE3MOSFET 2N-CH 30V 6A PPAK 1212 |
743 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6A (Tc) | 22mOhm @ 10A, 4.5V | 1.4V @ 250µA | 14nC @ 4.5V | 1000pF @ 15V | 2.6W (Ta), 23W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
CSD87333Q3DTMOSFET 2N-CH 30V 15A 8VSON |
284 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 5V Drive | 30V | 15A | 14.3mOhm @ 4A, 8V | 1.2V @ 250µA | 4.6nC @ 4.5V | 662pF @ 15V | 6W | 125°C (TJ) | - | - | Surface Mount | 8-VSON (3.3x3.3) |
|
ZXMN2A04DN8TAMOSFET 2N-CH 20V 5.9A 8SO |
542 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 5.9A | 25mOhm @ 5.9A, 4.5V | 700mV @ 250µA (Min) | 22.1nC @ 5V | 1880pF @ 10V | 1.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
CSD86336Q3DTMOSFET 2N-CH 25V 20A 8VSON |
1 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate, 5V Drive | 25V | 20A (Ta) | 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V | 1.9V @ 250µA, 1.6V @ 250µA | 3.8nC @ 45V, 7.4nC @ 45V | 494pF @ 12.5V, 970pF @ 12.5V | 6W | -55°C ~ 125°C | - | - | Surface Mount | 8-VSON (3.3x3.3) |
|
ALD110902SALMOSFET 2N-CH 10.6V 8SOIC |
27 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 4.2V | 220mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ALD212900PALMOSFET 2N-CH 10.6V 0.08A 8PDIP |
28 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | 14Ohm | 20mV @ 20µA | - | 30pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ALD110900APALMOSFET 2N-CH 10.6V 8PDIP |
49 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 4V | 10mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
FMM75-01FMOSFET 2N-CH 100V 75A I4-PAC |
15 |
|
- |
HiPerFET™ | i4-Pac™-5 | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 75A | 25mOhm @ 50A, 10V | 4V @ 4mA | 180nC @ 10V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
APTM50H14FT3GMOSFET 4N-CH 500V 26A SP3 |
13 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 26A | 168mOhm @ 13A, 10V | 5V @ 1mA | 72nC @ 10V | 3259pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC60DSKM24T3GMOSFET 2N-CH 600V 95A SP3 |
7 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N Channel (Dual Buck Chopper) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM50HM65FT3GMOSFET 4N-CH 500V 51A SP3 |
8 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM50AM38STGMOSFET 2N-CH 500V 90A SP4 |
6 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
