FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD1400R12IP4DBOSA1MOSFET |
76 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NXH020U90MNF2PTGMOSFET 2N-CH 900V 149A |
4 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 900V | 149A (Tc) | 14mOhm @ 100A, 15V | 4.3V @ 40mA | 546.4nC @ 15V | 7007pF @ 450V | 352W (Tj) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
FF08MR12W1MA1B11ABPSA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
8 |
|
Datasheet |
CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 150A (Tj) | 9.8mOhm @ 150A, 15V | 5.55V @ 90mA | 450nC @ 15V | 16000pF @ 600V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|

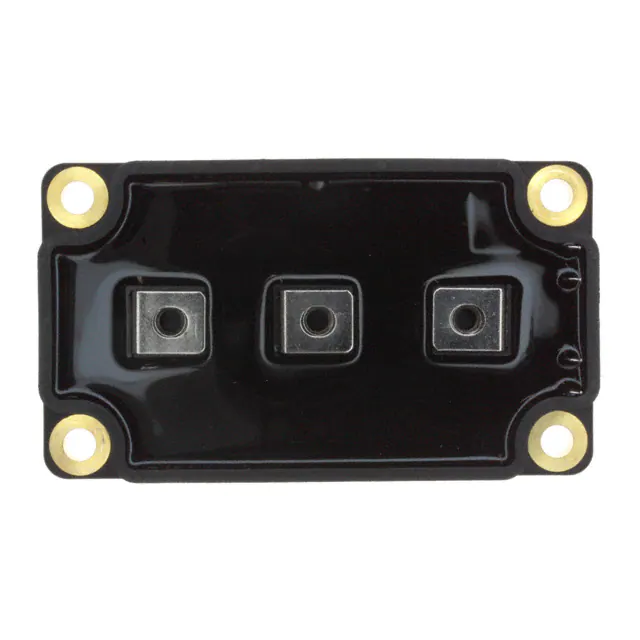

APTM50AM24SGMOSFET 2N-CH 500V 150A SP6 |
16 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 150A | 28mOhm @ 75A, 10V | 5V @ 6mA | 434nC @ 10V | 19600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
BSM080D12P2C008MOSFET 2N-CH 1200V 80A MODULE |
25 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 80A (Tc) | - | 4V @ 13.2mA | - | 800pF @ 10V | 600W | 175°C (TJ) | - | - | Chassis Mount | Module |
|

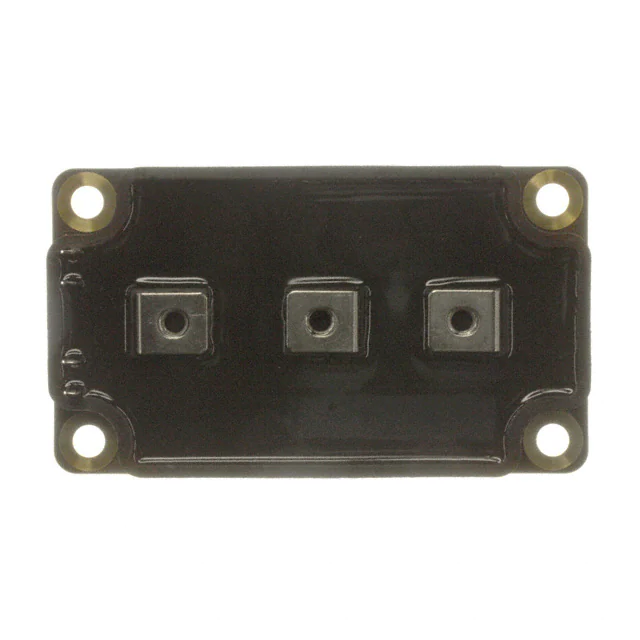

APTM20AM04FGMOSFET 2N-CH 200V 372A SP6 |
7 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 372A | 5mOhm @ 186A, 10V | 5V @ 10mA | 560nC @ 10V | 28900pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
FF2MR12KM1HPHPSA1MOSFET 2N-CH 1200V AG-62MMHB |
8 |
|
Datasheet |
CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 500A (Tc) | 2.13mOhm @ 500A, 15V | 5.15V @ 224mA | 1340nC @ 15V | 39700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MMHB |
|
|
FF4MR20KM1HHPSA1MOSFET 2N-CH 2000V AG-62MMHB |
11 |
|
Datasheet |
C | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 2000V (2kV) | 280A (Tc) | 5.3mOhm @ 300A, 18V | 5.15V @ 168mA | 1170nC @ 18V | 36100pF @ 1.2kV | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-62MMHB |
|

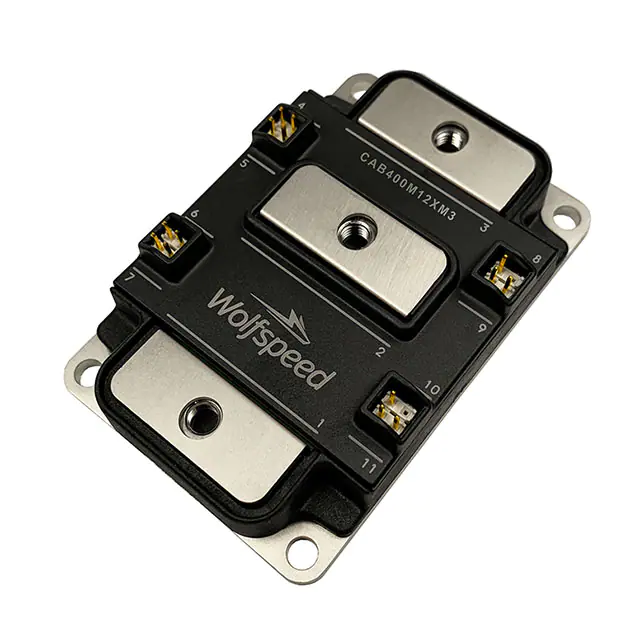

CAB400M12XM3MOSFET 2N-CH 1200V 395A |
24 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 395A (Tc) | 5.3mOhm @ 400A, 15V | 3.6V @ 92mA | 908nC @ 15V | 2450pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
FS05MR12A6MA1BBPSA1MOSFET 1200V 200A AG-HYBRIDD |
9 |
|
Datasheet |
HybridPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | - | - | 1200V (1.2kV) | 200A | - | - | - | - | - | - | - | - | Chassis Mount | AG-HYBRIDD-2 |
|
BSM250D17P2E004MOSFET 2N-CH 1700V 250A MODULE |
14 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 250A (Tc) | - | 4V @ 66mA | - | 30000pF @ 10V | 1800W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|

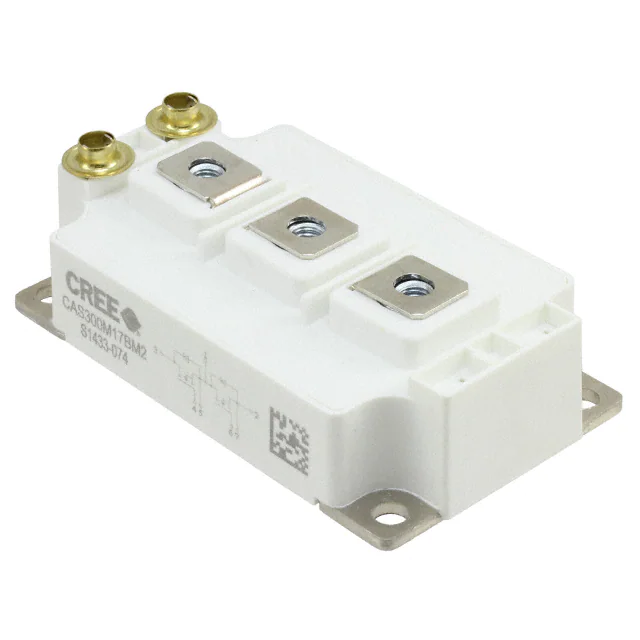

CAS300M17BM2MOSFET 2N-CH 1700V 325A MODULE |
1 |
|
Datasheet |
Z-Rec® | Module | Box | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 325A (Tc) | 10mOhm @ 225A, 20V | 2.3V @ 15mA (Typ) | 1076nC @ 20V | 20000pF @ 1000V | 1760W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
EAB450M12XM3MOSFET 2N-CH 1200V 450A |
3 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 450A (Tc) | 3.7mOhm @ 450A, 15V | 3.6V @ 132mA | 1330nC @ 15V | 38000pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM058CD3AGMOSFET 2N-CH 1700V 353A |
8 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1.642kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
FS03MR12A6MA1BBPSA1MOSFET 6N-CH 1200V AG-HYBRIDD |
7 |
|
Datasheet |
HybridPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 400A (Tj) | 3.7mOhm @ 400A, 15V | 5.55V @ 240mA | 1320nC @ 15V | 42500pF @ 600V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-HYBRIDD-2 |
|

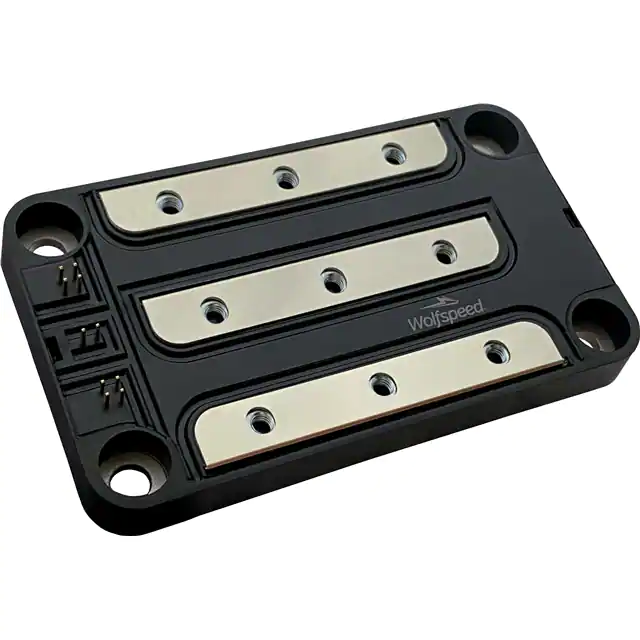

CAB760M12HM3MOSFET 2N-CH 1200V 1015A MODULE |
6 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 1015A (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
DMN2991UDR4-7RMOSFET 2N-CH 20V 0.5A 6DFN |
119 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | Logic Level Gate | 20V | 500mA (Ta) | 990mOhm @ 100mA, 4.5V | 1V @ 250µA | 0.28nC @ 4.5V | 14.6pF @ 16V | 380mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-6 (Type UXC) |
|
2N7002HSXMOSFET 2N-CH 60V 0.32A 6TSSOP |
326 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | 2 N-Channel (Dual) | - | 60V | 320mA (Ta) | 1.6Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.5nC @ 4.5V | 34pF @ 10V | 420mW | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
DMC2053UVT-7MOSFET N/P-CH 20V 4.6A TSOT26 |
932 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 20V | 4.6A (Ta), 3.2A (Ta) | 35mOhm @ 5A, 4.5V, 74mOhm @ 3.5A, 4.5V | 1V @ 250µA | 3.6nC @ 4.5V, 5.9nC @ 4.5V | 369pF @ 10V, 440pF @ 10V | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
DMN3015LSD-13MOSFET 2N-CH 30V 8.4A 8SO |
315 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 8.4A (Ta) | 15mOhm @ 12A, 10V | 2.5V @ 250µA | 25.1nC @ 10V | 1415pF @ 15V | 1.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
