FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMT47M2LDVQ-13MOSFET 2N-CH 40V 11.9A PWRDI3333 |
30 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 11.9A (Ta), 30.2A (Tc) | 10.8mOhm @ 20A, 10V | 2.3V @ 250µA | 14nC @ 10V | 891pF @ 20V | 2.34W (Ta), 14.8W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3333-8 (Type UXC) |
|
CSD85301Q2TMOSFET 2N-CH 20V 5A 6WSON |
1,024 |
|
Datasheet |
NexFET™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 5V Drive | 20V | 5A | 27mOhm @ 5A, 4.5V | 1.2V @ 250µA | 5.4nC @ 4.5V | 469pF @ 10V | 2.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
SQJQ904E-T1_GE3MOSFET 2N-CH 40V 100A PPAK8X8 |
79 |
|
Datasheet |
TrenchFET® | PowerPAK® 8 x 8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 100A (Tc) | 3.4mOhm @ 20A, 10V | 3.5V @ 250µA | 75nC @ 10V | 5900pF @ 20V | 75W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 8 x 8 Dual |
|
ALD1115PALMOSFET N/P-CH 10.6V 8PDIP |
50 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 10.6V | - | 1800Ohm @ 5V | 1V @ 1µA | - | 3pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ALD1103PBLMOSFET 2N/2P-CH 10.6V 14PDIP |
37 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N and 2 P-Channel Matched Pair | - | 10.6V | 40mA, 16mA | 75Ohm @ 5V | 1V @ 10µA | - | 10pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 14-PDIP |
|
|
NVXK2VR40WXT2MOSFET 6N-CH 1200V 55A APM32 |
14 |
|
Datasheet |
- | 32-PowerDIP Module (1.449", 36.80mm) | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 55A (Tc) | 59mOhm @ 35A, 20V | 4.3V @ 10mA | 106nC @ 20V | 1789pF @ 800V | 319W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | APM32 |
|
|
FF17MR12W1M1HB11BPSA1MOSFET 1200V AG-EASY1B |
13 |
|
Datasheet |
CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | - | - | 1200V (1.2kV) | - | - | - | - | - | - | - | - | - | Chassis Mount | AG-EASY1B |
|
|
FS33MR12W1M1HB11BPSA1MOSFET 1200V AG-EASY1B |
3 |
|
Datasheet |
CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | - | - | 1200V (1.2kV) | - | - | - | - | - | - | - | - | - | Chassis Mount | AG-EASY1B |
|
|
FF8MR12W1M1HS4PB11BPSA1MOSFET 2N-CH 1200V AG-EASY1B |
4 |
|
Datasheet |
CoolSiC™ | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 1200V (1.2kV) | 100A (Tj) | 8.1mOhm @ 100A, 18V | 5.15V @ 40mA | 297nC @ 18V | 8800pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B |
.jpg)
|

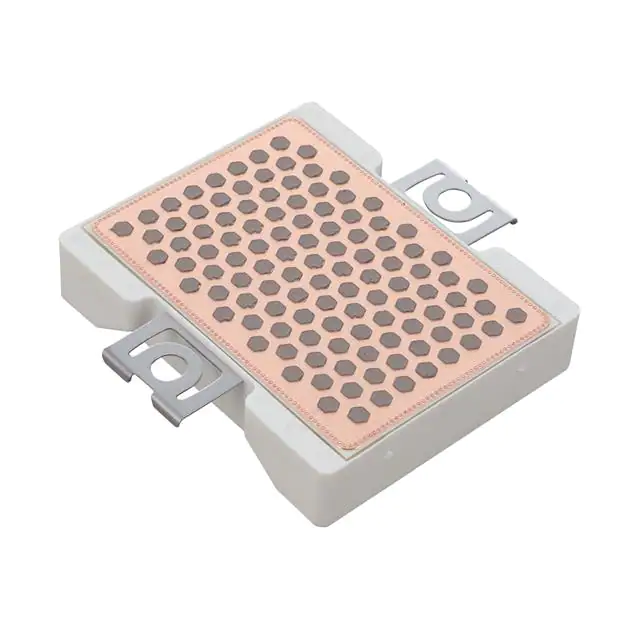

F3L8MR12W2M1HPB11BPSA1MOSFET 2N-CH 1200V 85A AG-EASY2B |
24 |
|
Datasheet |
EasyPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 85A (Tj) | 12mOhm @ 100A, 18V | 5.15V @ 40mA | 297nC @ 18V | 8800pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-EASY2B |
|
|
CBB032M12FM3TMOSFET 4N-CH 1200V 39A |
22 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 39A (Tj) | 44mOhm @ 30A, 15V | 3.9V @ 11mA | 118nC @ 15V | 3500pF @ 1000V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
FS13MR12W2M1HB70BPSA1MOSFET 6N-CH 1200V 62.5A |
15 |
|
Datasheet |
CoolSiC™ | - | Tray | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 62.5A (Tc) | 11.7mOhm @ 62.5A, 18V | 5.15V @ 28mA | 200nC @ 18V | 6050pF @ 800V | - | - | - | - | - | - |
|
|
FF6MR12KM1HHPSA1MOSFET |
10 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CAB006A12GM3MOSFET 2N-CH 1200V 200A |
10 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 200A (Tj) | 6.9mOhm @ 200A, 15V | 3.6V @ 69mA | 708nC @ 15V | 20400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170HM23CT3AGMOSFET 4N-CH 1700V 124A |
2 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 124A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 602W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
BSM300D12P2E001MOSFET 2N-CH 1200V 300A MODULE |
11 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 300A (Tc) | - | 4V @ 68mA | - | 35000pF @ 10V | 1875W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
NVVR26A120M1WSBMOSFET 2N-CH 1200V AHPM15-CDE |
10 |
|
Datasheet |
- | 15-PowerDIP Module (2.441", 62.00mm) | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 400A (Tj) | 2.6mOhm @ 400A, 20V | 3.2V @ 150mA | 1.75µC @ 20V | 31700pF @ 800V | 1kW (Tj) | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | AHPM15-CDE |
|
|
NVVR26A120M1WSSMOSFET 2N-CH 1200V AHPM15-CDI |
9 |
|
Datasheet |
- | 15-PowerDIP Module (2.441", 62.00mm) | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 400A (Tj) | 2.6mOhm @ 400A, 20V | 3.2V @ 150mA | 1.75µC @ 20V | 31700pF @ 800V | 1kW (Tj) | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | AHPM15-CDI |
|
CAB530M12BM3MOSFET 2N-CH 1200V 530A MODULE |
4 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 1200V (1.2kV) | 530A | 3.55mOhm @ 530A, 15V | 3.6V @ 140mA | 1362nC @ 4V | 39600pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|

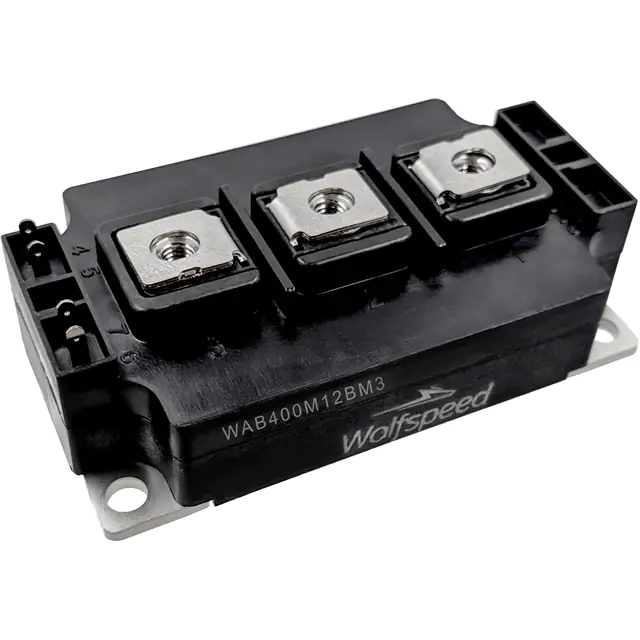

WAB400M12BM3MOSFET 2N-CH 1200V 468A MODULE |
21 |
|
Datasheet |
- | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 468A (Tc) | 4.25mOhm @ 400A, 15V | 3.6V @ 106mA | 1040nC @ 15V | 29700pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
