Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA1206B601R-00FERRITE BEAD 600 OHM 1206 4LN |
0 |
|
Datasheet |
DA | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 600 Ohms @ 100 MHz | 200mA | 350mOhm | - | -40°C ~ 125°C | Surface Mount | 0.032" (0.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
EXC-28BB221UFERRITE BEAD 220 OHM 0804 4LN |
0 |
|
Datasheet |
EXC28B | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 220 Ohms @ 100 MHz | 100mA | 700mOhm | - | - | Surface Mount | 0.024" (0.60mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
EXC-28BA121UFERRITE BEAD 120 OHM 0804 4LN |
0 |
|
Datasheet |
EXC28B | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 120 Ohms @ 100 MHz | 100mA | 500mOhm | - | - | Surface Mount | 0.024" (0.60mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
WBS1.5-5/4.8/10-4B1-ZFerrite Misc |
0 |
|
- |
- | Nonstandard | Bulk | Active | - | 1 | 500 Ohms @ 100 MHz | - | - | - | - | Surface Mount | - | - | - |
|
|
WBS1.5-5/4.8/10-4B1Ferrite Misc |
0 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | 1 | 500 Ohms @ 100 MHz | - | - | - | - | Surface Mount | 0.189" (4.80mm) | 0.335" L x 0.197" W (8.50mm x 5.00mm) | - |
|

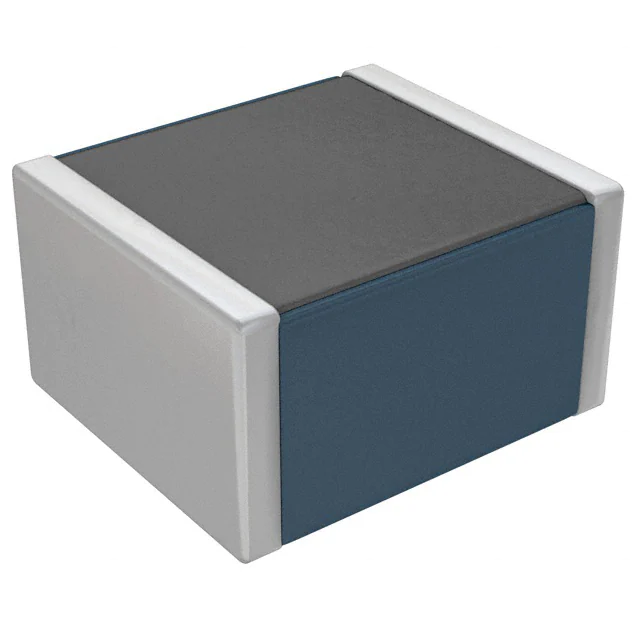

HF70ACC575032-TFERRITE BEAD 300 OHM 2220 1LN |
0 |
|
Datasheet |
ACC | 2220 (5750 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 300 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.138" (3.50mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - |
|
|
HF50ACC575032-TFERRITE BEAD 400 OHM 2220 1LN |
0 |
|
Datasheet |
ACC | 2220 (5750 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 400 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.138" (3.50mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - |
|
|
HF30ACC575032-TFERRITE BEAD 270 OHM 2220 1LN |
0 |
|
Datasheet |
ACC | 2220 (5750 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 270 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.138" (3.50mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - |
|
|
DA1206B102R-00FERRITE BEAD 1K OHM 1206 4LN |
0 |
|
Datasheet |
DA | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 1 kOhms @ 100 MHz | 200mA | 800mOhm | - | -40°C ~ 125°C | Surface Mount | 0.032" (0.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
WBS2.5-5/4.8/10-4B1Ferrite Misc |
0 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | 1 | 850 Ohms @ 100 MHz | - | - | - | - | Surface Mount | 0.189" (4.80mm) | 0.335" L x 0.197" W (8.50mm x 5.00mm) | - |
|
|
WBS2.5-5/4.8/10-4B1-ZFerrite Misc |
0 |
|
- |
- | Nonstandard | Bulk | Active | - | 1 | 850 Ohms @ 100 MHz | - | - | - | - | Surface Mount | 0.189" (4.80mm) | 0.335" L x 0.197" W (8.50mm x 5.00mm) | - |
|
HI2220P171R-00FERRITE BEAD 170 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 170 Ohms @ 100 MHz | 4A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.070" (1.77mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
HI2220P251R-00FERRITE BEAD 250 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 250 Ohms @ 100 MHz | 4A | 15mOhm | - | -40°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
HI2220T101R-00FERRITE BEAD 100 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 100 Ohms @ 100 MHz | 6A | 6mOhm | - | -40°C ~ 125°C | Surface Mount | 0.146" (3.70mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
HI2220R151R-00FERRITE BEAD 150 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 150 Ohms @ 100 MHz | 5A | 15mOhm | - | -40°C ~ 125°C | Surface Mount | 0.146" (3.70mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
HI2220R301R-00FERRITE BEAD 300 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 300 Ohms @ 100 MHz | 5A | 20mOhm | - | -40°C ~ 125°C | Surface Mount | 0.146" (3.70mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
EXC-28BB121UFERRITE BEAD 120 OHM 0804 4LN |
0 |
|
Datasheet |
EXC28B | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 120 Ohms @ 100 MHz | 100mA | 500mOhm | - | - | Surface Mount | 0.024" (0.60mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
EXC-28BA221UFERRITE BEAD 220 OHM 0804 4LN |
0 |
|
Datasheet |
EXC28B | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 220 Ohms @ 100 MHz | 100mA | 700mOhm | - | - | Surface Mount | 0.024" (0.60mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
HF70ACC575018-TFERRITE BEAD 150 OHM 2220 1LN |
0 |
|
Datasheet |
ACC | 2220 (5750 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 150 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.083" (2.10mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - |
|
|
HI2220P601R-00FERRITE BEAD 600 OHM 2220 1LN |
0 |
|
Datasheet |
HI | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Power, Signal Line | 1 | 600 Ohms @ 100 MHz | 4A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.130" (3.30mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
