Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLMGA453232L681RGFERRITE BEAD 680 OHM 1812 1LN |
0 |
|
Datasheet |
LLMG | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 680 Ohms @ 100 MHz | 4A | 28mOhm | - | -40°C ~ 125°C | Surface Mount | 0.138" (3.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
|
LLMGA453232L132RGFERRITE BEAD 1.3K OHM 1812 1LN |
0 |
|
Datasheet |
LLMG | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 1.3 kOhms @ 100 MHz | 3A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.138" (3.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
|
EMI1812R-125FERRITE BEAD 120 OHM 1812 1LN |
0 |
|
Datasheet |
EMI1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | 1 | 120 Ohms @ 100 MHz | 200mA | 400mOhm | - | -55°C ~ 125°C | Surface Mount | 0.069" (1.75mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|

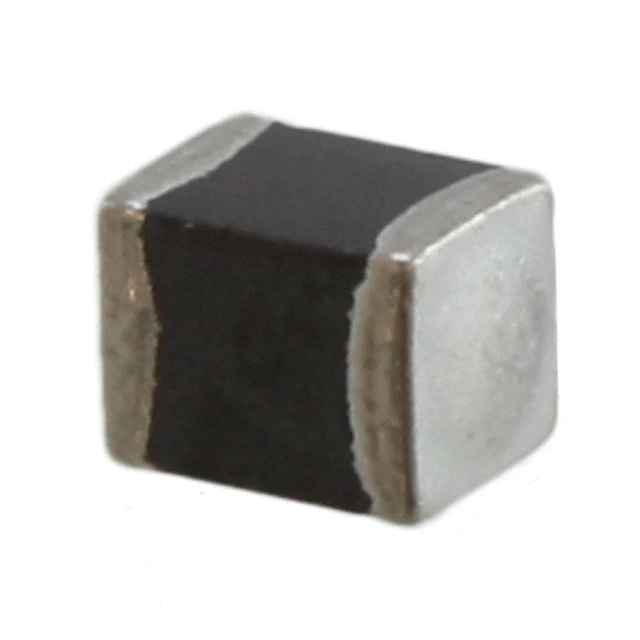

Z1210C601BPWZTFERRITE BEAD 600 OHM 1210 1LN |
0 |
|
Datasheet |
Z-PWZ | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 600 Ohms @ 100 MHz | 3A | 42mOhm | - | -40°C ~ 125°C | Surface Mount | 0.110" (2.80mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
NFZ32BW190HN11LFERRITE BEAD 19 OHM 2SMD 1LN |
0 |
|
Datasheet |
EMIFIL®, NFZ32BW | 2-SMD, Flat Lead | Tape & Reel (TR) | Active | - | 1 | 19 Ohms @ 1 MHz | 1.8A | 106.8mOhm | - | -40°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
NFZ32BW650HN11LFERRITE BEAD 65 OHM 2SMD 1LN |
0 |
|
Datasheet |
EMIFIL®, NFZ32BW | 2-SMD, Flat Lead | Tape & Reel (TR) | Active | - | 1 | 65 Ohms @ 1 MHz | 900mA | 354mOhm | - | -40°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
NFZ32BW6R8HN11LFERRITE BEAD 6.8 OHM 2SMD 1LN |
0 |
|
Datasheet |
EMIFIL®, NFZ32BW | 2-SMD, Flat Lead | Tape & Reel (TR) | Active | - | 1 | 6.8 Ohms @ 1 MHz | 2.5A | 43.2mOhm | - | -40°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
NFZ32BW8R4HN11LFERRITE BEAD 8.4 OHM 2SMD 1LN |
0 |
|
Datasheet |
EMIFIL®, NFZ32BW | 2-SMD, Flat Lead | Tape & Reel (TR) | Active | - | 1 | 8.4 Ohms @ 1 MHz | 2.4A | 57.6mOhm | - | -40°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
LLMGA452525T102NGFERRITE BEAD 1K OHM 1810 1LN |
0 |
|
Datasheet |
LLMG | 1810 (4525 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 1 kOhms @ 100 MHz | 3A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.110" (2.80mm) | 0.177" L x 0.098" W (4.50mm x 2.50mm) | - |
|
|
4212-2FERRITE BEAD 575 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212 | Axial | Bulk | Active | - | 1 | 575 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-1FERRITE BEAD 750 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212 | Axial | Bulk | Active | - | 1 | 750 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-3FERRITE BEAD 425 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212 | Axial | Bulk | Active | - | 1 | 425 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-4FERRITE BEAD 375 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212 | Axial | Bulk | Active | - | 1 | 375 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-5FERRITE BEAD 600 OHM RADIAL 1LN |
0 |
|
Datasheet |
4212 | Radial | Bulk | Active | - | 1 | 600 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-6FERRITE BEAD 480 OHM RADIAL 1LN |
0 |
|
Datasheet |
4212 | Radial | Bulk | Active | - | 1 | 480 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-7FERRITE BEAD 900 OHM RADIAL 1LN |
0 |
|
Datasheet |
4212 | Radial | Bulk | Active | - | 1 | 900 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212-8FERRITE BEAD 550 OHM RADIAL 1LN |
0 |
|
Datasheet |
4212 | Radial | Bulk | Active | - | 1 | 550 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212R-1FERRITE BEAD 750 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212R | Axial | Bulk | Active | - | 1 | 750 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212R-2FERRITE BEAD 575 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212R | Axial | Bulk | Active | - | 1 | 575 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4212R-3FERRITE BEAD 425 OHM AXIAL 1LN |
0 |
|
Datasheet |
4212R | Axial | Bulk | Active | - | 1 | 425 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
