Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

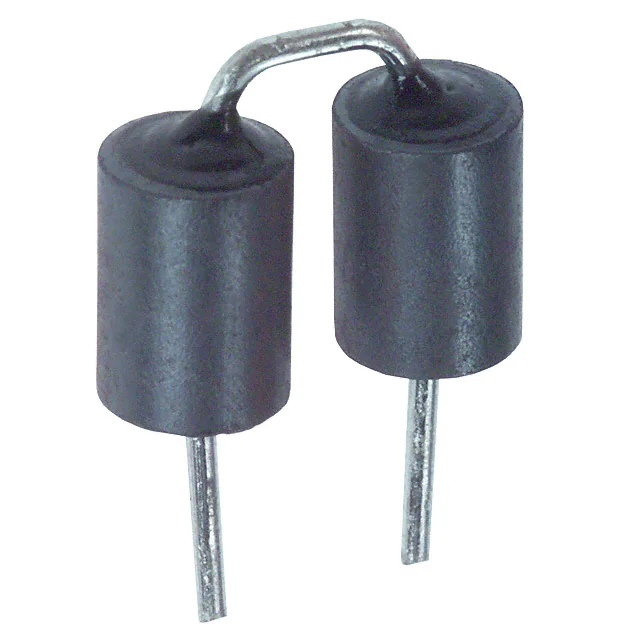

EXC-ELDR35VFERRITE BEAD 90 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial, Split Radial Bend | Tape & Box (TB) | Obsolete | - | 1 | 90 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.209" (5.30mm) | 0.354" Dia (9.00mm) | - |
|
EXC-ELSR35TFERRITE BEAD 50 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial, Kinked Radial Bend | Tape & Box (TB) | Obsolete | - | 1 | 50 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.571" (14.50mm) | 0.150" Dia (3.80mm) | - |
|

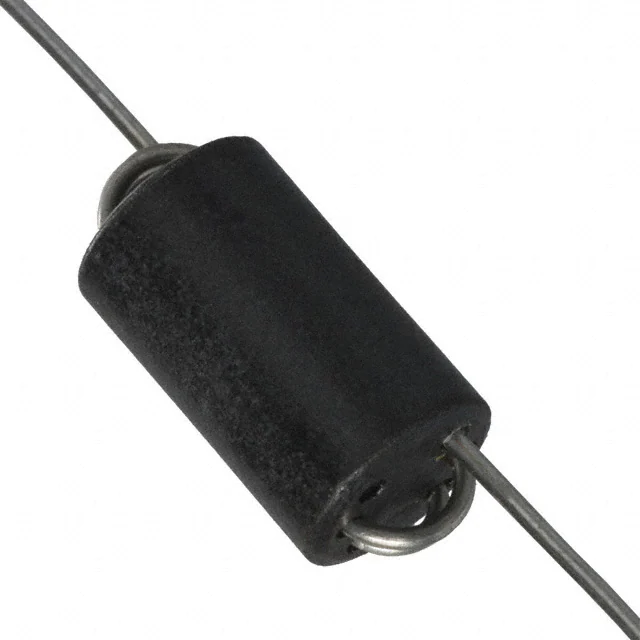

FB20020-4BFERRITE BEAD 330 OHM AXIAL 1LN |
0 |
|
Datasheet |
FB | Axial | Bulk | Obsolete | - | 1 | 330 Ohms @ 100 MHz | 5A | - | - | - | Through Hole | - | 0.236" Dia x 0.394" L (5.99mm x 10.01mm) | - |
|

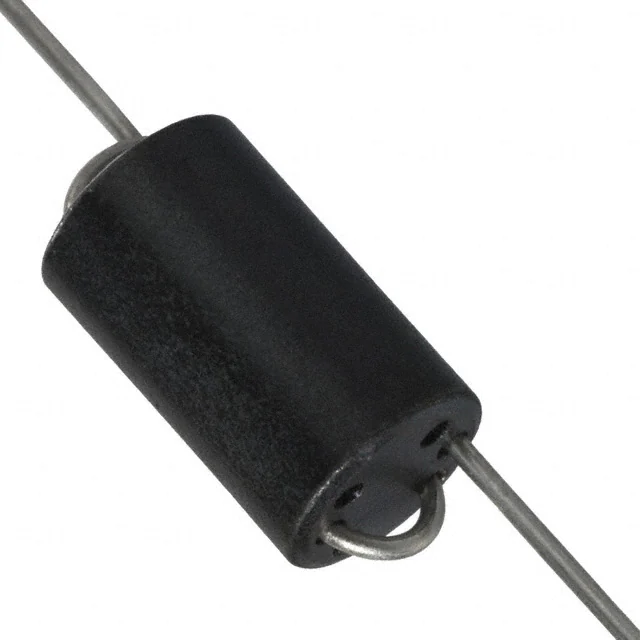

FB20009-3BFERRITE BEAD 440 OHM AXIAL 1LN |
0 |
|
Datasheet |
FB | Axial | Bulk | Obsolete | - | 1 | 440 Ohms @ 100 MHz | 5A | - | - | - | Through Hole | - | 0.236" Dia x 0.394" L (5.99mm x 10.01mm) | - |
|
|
FB20010-3BFERRITE BEAD 780 OHM AXIAL 1LN |
0 |
|
Datasheet |
FB | Axial | Bulk | Obsolete | - | 1 | 780 Ohms @ 100 MHz | 5A | - | - | - | Through Hole | - | 0.236" Dia x 0.394" L (5.99mm x 10.01mm) | - |
|
FB20022-4BFERRITE BEAD 900 OHM RADIAL 1LN |
0 |
|
Datasheet |
FB | Radial | Bulk | Obsolete | - | 1 | 900 Ohms @ 100 MHz | 5A | - | - | - | Through Hole | 0.394" (10.01mm) | 0.236" Dia (5.99mm) | - |
|
PMH1210-300FERRITE BEAD 30 OHM 1210 1LN |
0 |
|
Datasheet |
PMH | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 30 Ohms @ 100 MHz | 3A | 20mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
PMH1210-500FERRITE BEAD 50 OHM 1210 1LN |
0 |
|
Datasheet |
PMH | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 50 Ohms @ 100 MHz | 3A | 30mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
PMH1812-121FERRITE BEAD 120 OHM 1812 1LN |
0 |
|
Datasheet |
PMH | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 120 Ohms @ 100 MHz | 3A | 30mOhm | - | -55°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
BLM41PF800SN1LFERRITE BEAD 80 OHM 1806 1LN |
0 |
|
Datasheet |
EMIFIL®, BLM41 | 1806 (4516 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Differential Mode - Single | 1 | 80 Ohms @ 100 MHz | - | - | - | - | Surface Mount | 0.071" (1.80mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
MZA3216Y301BFERRITE BEAD 300 OHM 1206 4LN |
0 |
|
Datasheet |
MZA | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | Signal Line | 4 | 300 Ohms @ 100 MHz | 100mA | 400mOhm | - | -25°C ~ 85°C | Surface Mount | 0.039" (1.00mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|

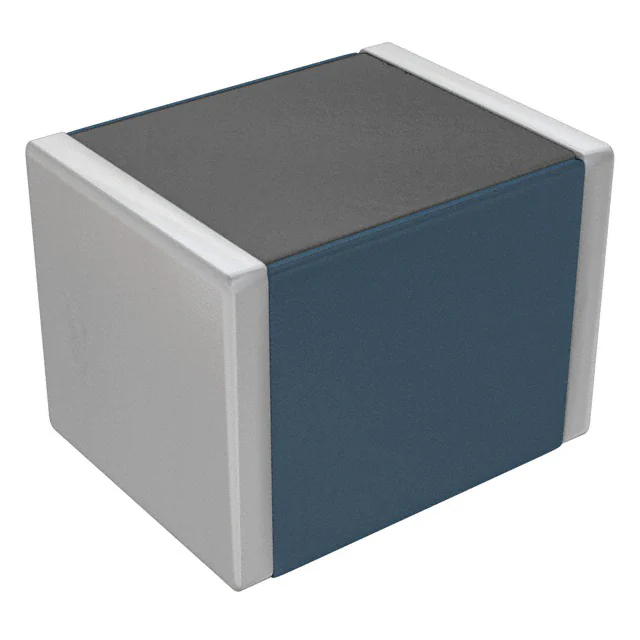

HF70ACC635050-TFERRITE BEAD 500 OHM 2520 1LN |
0 |
|
Datasheet |
ACC | 2520 (6450 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 500 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.198" (5.04mm) | 0.252" L x 0.197" W (6.40mm x 5.00mm) | - |
|
|
HF50ACC635050-TFERRITE BEAD 600 OHM 2520 1LN |
0 |
|
Datasheet |
ACC | 2520 (6450 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 600 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.198" (5.04mm) | 0.252" L x 0.197" W (6.40mm x 5.00mm) | - |
|
HF50ACB322513-TFERRITE BEAD 60 OHM 1210 1LN |
0 |
|
Datasheet |
HF-ACB | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 60 Ohms @ 100 MHz | 400mA | 300mOhm | - | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
HF30ACC635050-TFERRITE BEAD 750 OHM 2520 1LN |
0 |
|
Datasheet |
ACC | 2520 (6450 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 750 Ohms @ 100 MHz | 3A | 40mOhm | - | - | Surface Mount | 0.198" (5.04mm) | 0.252" L x 0.197" W (6.40mm x 5.00mm) | - |
|
HF30ACC575018-TFERRITE BEAD 100 OHM 2220 1LN |
0 |
|
Datasheet |
ACC | 2220 (5750 Metric) | Tape & Reel (TR) | Obsolete | Differential Mode - Single | 1 | 100 Ohms @ 100 MHz | - | - | - | - | Surface Mount | 0.083" (2.10mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - |
|
HF30ACC321611-TFERRITE BEAD 19 OHM 1206 1LN |
0 |
|
Datasheet |
HF-ACC | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 19 Ohms @ 100 MHz | 1.5A | 40mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
HF30ACB201209-TFERRITE BEAD 7 OHM 0805 1LN |
0 |
|
Datasheet |
HF-ACB | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 7 Ohms @ 100 MHz | 600mA | 100mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
MZA3216Y241BFERRITE BEAD 240 OHM 1206 4LN |
0 |
|
Datasheet |
MZA | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | Signal Line | 4 | 240 Ohms @ 100 MHz | 200mA | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
BK0603HS220-TFERRITE BEAD 22 OHM 0201 1LN |
0 |
|
Datasheet |
BK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 22 Ohms @ 100 MHz | 500mA | 65mOhm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
