Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLT5BPT680LN1LFERRITE BEAD 68 OHM VERTICAL 1LN |
0 |
|
Datasheet |
BLT | Vertical, 4 PC Pad | Tape & Reel (TR) | Active | Power Line | 1 | 68 Ohms @ 100 MHz | 11A | 10mOhm | - | -55°C ~ 150°C | Surface Mount | 0.197" (5.00mm) | 0.248" L x 0.197" W (6.30mm x 5.00mm) | - |
|
|
SMB3528-1LFHIGH IMPEDANCE UNFILTERED BEAD |
0 |
|
Datasheet |
SMB3528 | Nonstandard | Tape & Reel (TR) | Active | Power Line | 1 | 385 Ohms @ 100 MHz | 9.5mA | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.198" (5.04mm) | 0.354" L x 0.285" W (9.00mm x 7.24mm) | - |
|
|
SMB3528-1HIGH IMPEDANCE UNFILTERED BEAD |
0 |
|
Datasheet |
SMB3528 | Nonstandard | Tape & Reel (TR) | Active | Power Line | 1 | 385 Ohms @ 100 MHz | 9.5mA | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.198" (5.04mm) | 0.354" L x 0.285" W (9.00mm x 7.24mm) | - |
|
|
BPL4-EC70-CFerrite |
0 |
|
Datasheet |
- | - | Bulk | Active | - | 1 | - | - | - | - | - | - | - | - | - |
|
|
SMB3528-2LFHIGH IMPEDANCE UNFILTERED BEAD |
0 |
|
Datasheet |
SMB3528 | Nonstandard | Tape & Reel (TR) | Active | Power Line | 1 | 490 Ohms @ 100 MHz | 9.5mA | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.198" (5.04mm) | 0.354" L x 0.285" W (9.00mm x 7.24mm) | - |
|
|
SMB3528-2HIGH IMPEDANCE UNFILTERED BEAD |
0 |
|
Datasheet |
SMB3528 | Nonstandard | Tape & Reel (TR) | Active | Power Line | 1 | 490 Ohms @ 100 MHz | 9.5mA | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.198" (5.04mm) | 0.354" L x 0.285" W (9.00mm x 7.24mm) | - |
|
|
4214-2FERRITE BEAD 450 OHM AXIAL 2LN |
0 |
|
Datasheet |
4214 | Axial - 4 Leads | Bulk | Obsolete | - | 2 | 450 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4214-4FERRITE BEAD 650 OHM AXIAL 1LN |
0 |
|
Datasheet |
4214 | Axial - 4 Leads | Bulk | Obsolete | - | 1 | 650 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4214R-2FERRITE BEAD 450 OHM AXIAL 1LN |
0 |
|
Datasheet |
4214R | Axial - 4 Leads | Bulk | Obsolete | - | 1 | 450 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
4214R-4FERRITE BEAD 650 OHM AXIAL 1LN |
0 |
|
Datasheet |
4214R | Axial - 4 Leads | Bulk | Obsolete | - | 1 | 650 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
CBM02YTYH121FERRITE BEAD 120 OHM 0402 1LN |
5,000 |
|
Datasheet |
CBM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | 1 | 120 Ohms @ 100 MHz | - | - | - | -55°C ~ 125°C | Surface Mount | 0.024" (0.60mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
EXC-ELSA35VFERRITE BEAD 50 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial | Tape & Box (TB) | Obsolete | - | 1 | 50 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | - | 0.150" Dia x 0.209" L (3.80mm x 5.30mm) | - |
|
|
EXC-ELSA35FERRITE BEAD 50 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial | Bulk | Obsolete | - | 1 | 50 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | - | 0.150" Dia x 0.209" L (3.80mm x 5.30mm) | - |
|
EXC-ELSR35SFERRITE BEAD 50 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial, Kinked Radial Bend | Bulk | Obsolete | - | 1 | 50 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.571" (14.50mm) | 0.150" Dia (3.80mm) | - |
|
EXC-CL3216U1FERRITE BEAD 25 OHM 1206 1LN |
0 |
|
Datasheet |
EXCCL | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 25 Ohms @ 100 MHz | 2A | 50mOhm | - | - | Surface Mount | 0.075" (1.90mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
EXC-ELSA39FERRITE BEAD 80 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial | Bulk | Obsolete | - | 1 | 80 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | - | 0.150" Dia x 0.366" L (3.80mm x 9.30mm) | - |
|
|
EXC-ELSA39VFERRITE BEAD 80 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial | Tape & Box (TB) | Obsolete | - | 1 | 80 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | - | 0.150" Dia x 0.366" L (3.80mm x 9.30mm) | - |
|

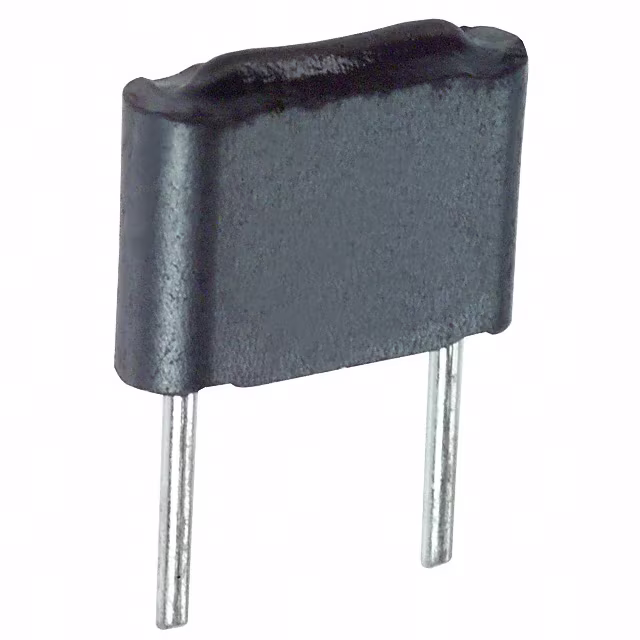

EXC-ELDR25CFERRITE BEAD 80 OHM RADIAL 1LN |
0 |
|
Datasheet |
EXCEL | Radial | Bulk | Obsolete | - | 1 | 80 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.276" (7.00mm) | 0.303" L x 0.096" W (7.70mm x 2.45mm) | - |
|
|
EXC-ELDR25VFERRITE BEAD 80 OHM RADIAL 1LN |
0 |
|
Datasheet |
EXCEL | Radial | Tape & Box (TB) | Obsolete | - | 1 | 80 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.276" (7.00mm) | 0.303" L x 0.096" W (7.70mm x 2.45mm) | - |
|
EXC-ELDR35CFERRITE BEAD 90 OHM AXIAL 1LN |
0 |
|
Datasheet |
EXCEL | Axial, Split Radial Bend | Bulk | Obsolete | - | 1 | 90 Ohms @ 100 MHz | 7A | 10mOhm | - | - | Through Hole | 0.209" (5.30mm) | 0.354" Dia (9.00mm) | - |
Ferrite Beads and Chips Electronic Components
Explore Ferrite Beads and Chips electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
