Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW1D-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
375 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Solder Lug | 200K | - | - |
|

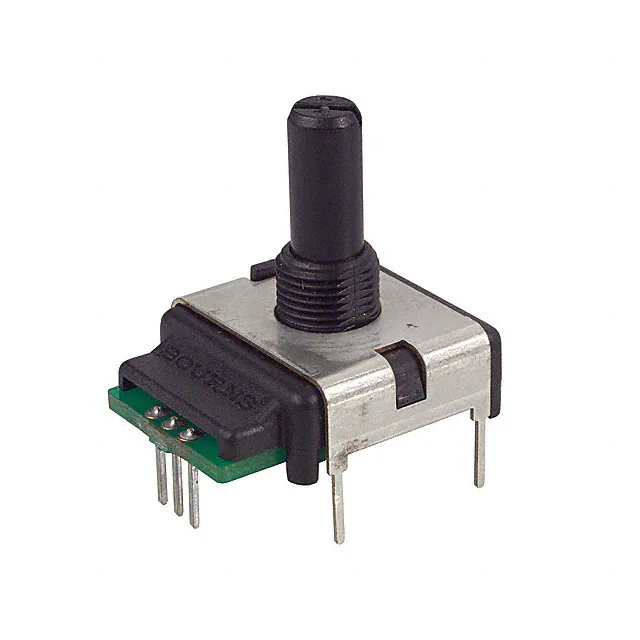

ECW1J-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
348 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

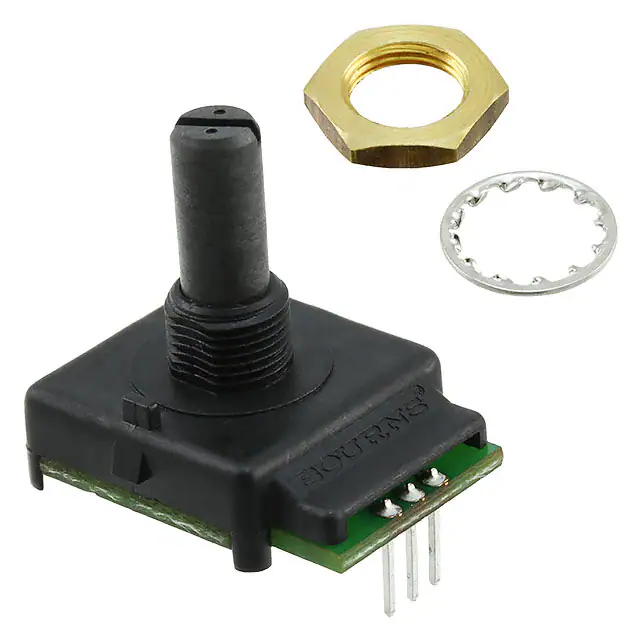

ECW1J-B24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
237 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
PER601-P117-N001560MM LOW PROFILE INCREMENT-RING |
774 |
|
Datasheet |
- | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 40K | - | - |
|
PER561-P115-N001556MM LOW PROFILE INCREMENT-RING |
1,956 |
|
Datasheet |
PER56 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
PEC11D-4120F-H0015ROTARY ENCDER WITH DUAL CONCENTR |
447 |
|
Datasheet |
PEC11D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
AS5047D-ATST TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
1,416 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5134-ZSSMROTARY ENCODER MAGNETIC |
1,262 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 4.4V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
292V1X24AROTARY ENCODER OPTICAL 24PPR |
483 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 4.95V ~ 5.5V | Hole for Shaft | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|

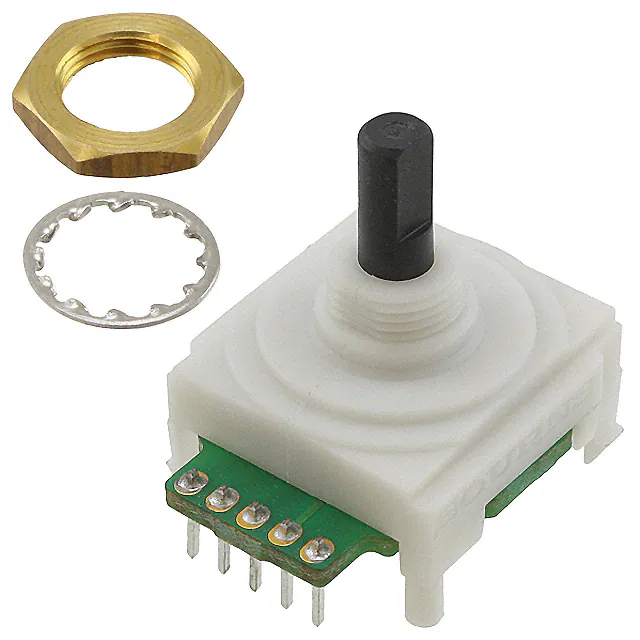

EPS1D-F19-AD0024LROTARY ENCODER MECHANICAL 24PPR |
108 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
HEDS-9730#Q50ROTARY ENCODR OPTICAL 180 LPI |
451 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 180 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
ENCOS24D2S65RROTARY ENCODER OPTICAL 24PPR |
1,486 |
|
Datasheet |
ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 24 | 4.75V ~ 5.25V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|
AS5247-HMFMROTARY ENCODER MAGNETIC PROG |
1,586 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
AEAT-9955-10018B SINGLE MAG ENC MULTIPLE AXIS |
1,080 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9955-Q3218B SINGLE MAG ENC MULTIPLE AXIS |
771 |
|
Datasheet |
AEAT-9955 | Tray | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEAT-9955-10218B SINGLE MAG ENC MULTIPLE AXIS |
553 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
EM14A1D-C24-L008SROTARY ENCODER OPTICAL 8PPR |
146 |
|
Datasheet |
EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT103-2048-N4000-SENCODER INCREMENTAL 2048 PPR |
391 |
|
Datasheet |
AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

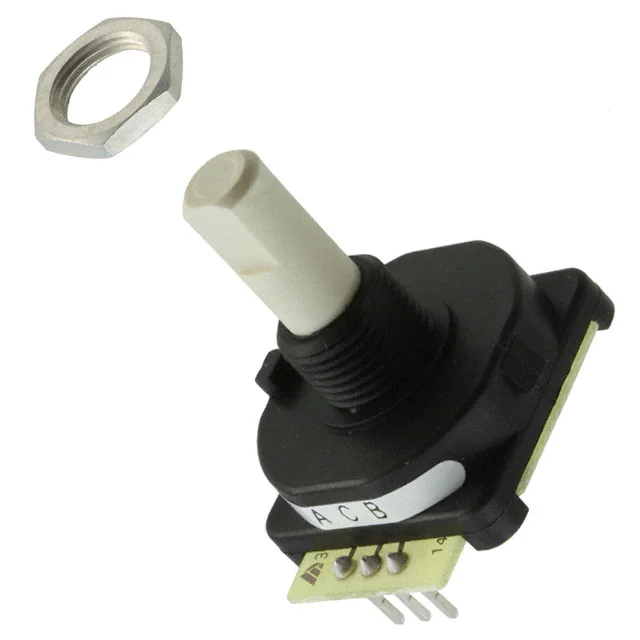

25LB10-QROTARY ENCODER MECHANICAL 36PPR |
776 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 36 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
25LB22-QROTARY ENCODER MECHANICAL 16PPR |
134 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
