Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC11S-9220F-S0015ROTARY ENCODER MECHANICAL 15PPR |
191 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
EC12E2420801INSULATED SHAFT ENCODERS |
1,255 |
|
Datasheet |
EC12E | Tray | Active | - | Incremental | Quadrature (Incremental) | 24 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-HSB1AF15ROTARY ENCODER MECHANICAL 20PPR |
2,649 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-HSB1AQ20ROTARY ENCODER MECHANICAL 20PPR |
3,640 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

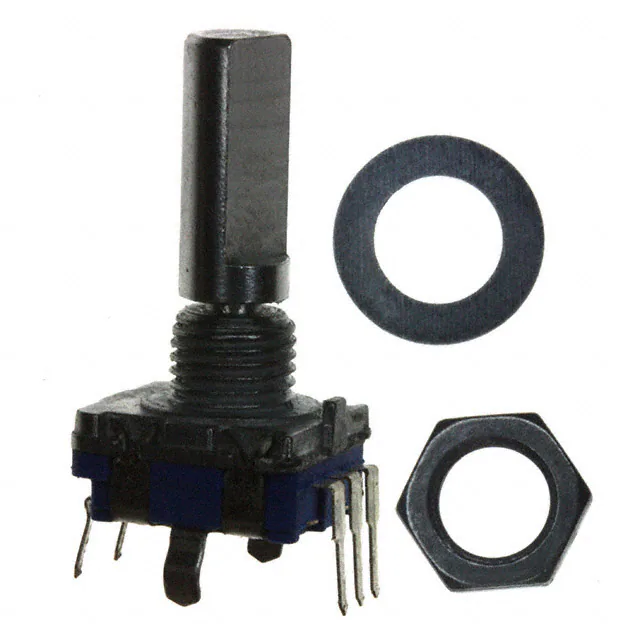

ACZ11BR1E-20FD1-12CROTARY ENCODER INCREMENT 12PPR |
11,450 |
|
Datasheet |
ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11L-4115F-S0020ROTARY ENCODER MECHANICAL 20PPR |
8,715 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11L-4015F-S0020ROTARY ENCODER MECHANICAL 20PPR |
1,412 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

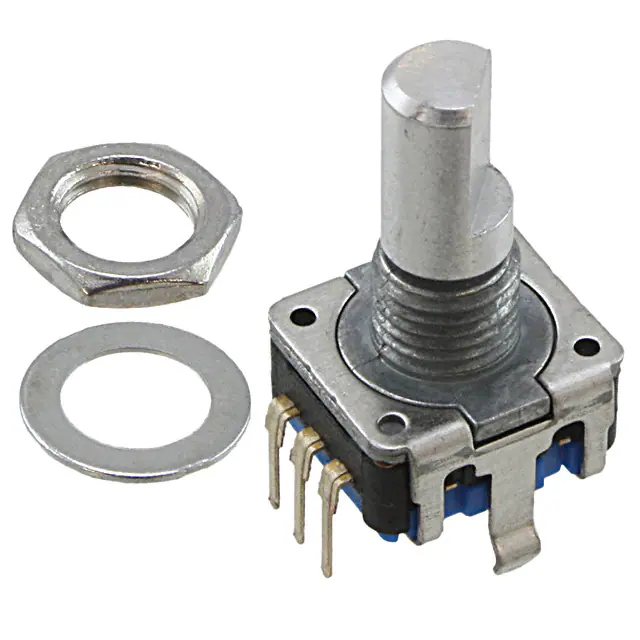

PEC11L-4215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
376 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11H-4120F-S0020ROTARY ENCODER WITH BALL/SPRING |
926 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11H-4025F-S0016ROTARY ENCODER WITH BALL/SPRING |
1,240 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11H-4220F-S0024ROTARY ENCODER WITH BALL/SPRING |
714 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

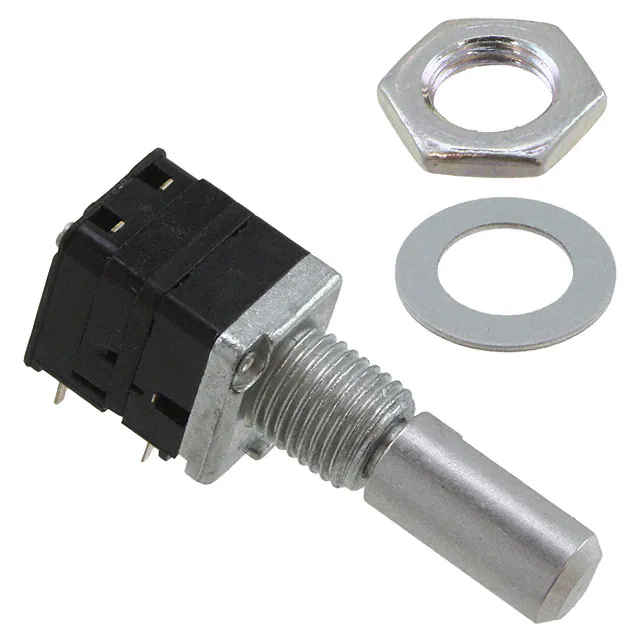

PEC09-2320F-S0015ROTARY ENCODER MECHANICAL 15PPR |
998 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC11H-4020F-S0016ROTARY ENCODER WITH BALL/SPRING |
610 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

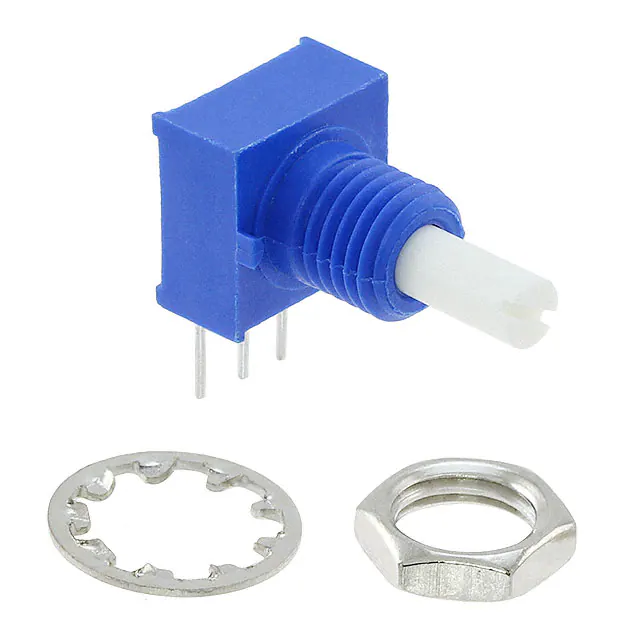

3315C-001-016LROTARY ENCODER MECHANICAL 16PPR |
428 |
|
Datasheet |
3315 | Tube | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 25K | - | - |
|
|
PEC11S-9213K-S0015ROTARY ENCODER MECHANICAL 15PPR |
27,842 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Knurled End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
|
PEC11S-929F-S0015ROTARY ENCODER MECHANICAL 15PPR |
3,658 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
PER231-P19-N001023MM LOW PROFILE INCREMENT-RING |
936 |
|
Datasheet |
PER23 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 10 | - | Hole for Shaft | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
PAC18R1-43D19FENCODER |
349 |
|
Datasheet |
PAC18R | Tray | Active | Not Verified | Absolute | Gray Code (Absolute) | - | - | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

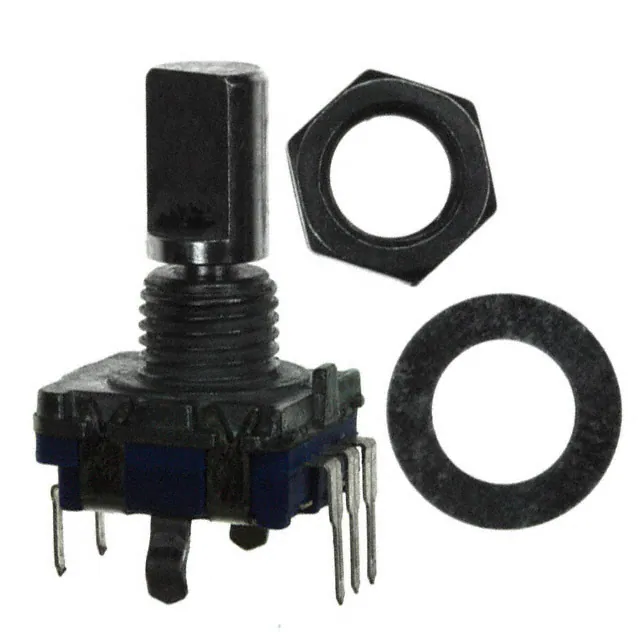

ACZ11BR1E-15FD1-20CROTARY ENCODER INCREMENT 20PPR |
1,820 |
|
Datasheet |
ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

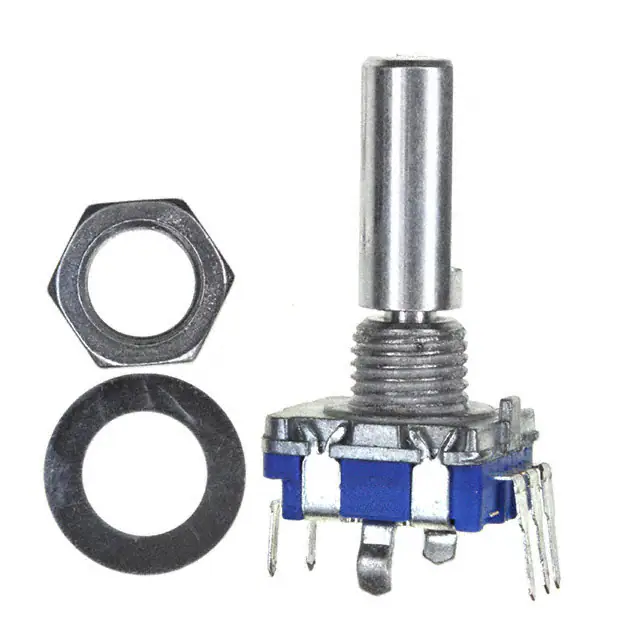

ACZ11BR1E-20FD1-20CROTARY ENCODER INCREMENT 20PPR |
907 |
|
Datasheet |
ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
