Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENC1J-D28-L00256LROTARY ENCODER OPTICAL 256PPR |
54 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62V15-02-PROTARY ENCODER OPTICAL 24PPR |
32 |
|
Datasheet |
62V | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62A22-02-PROTARY ENCODER OPTICAL 16PPR |
528 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
|
HRPG-ASCA#19FROTARY ENCODER OPTICAL 120PPR |
110 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AEDM-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
153 |
|
Datasheet |
- | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

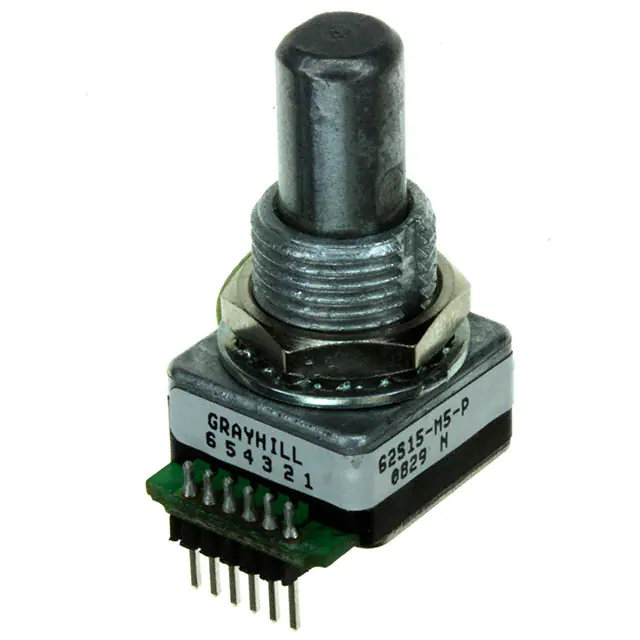

62S15-M5-PROTARY ENCODER OPTICAL 24PPR |
210 |
|
Datasheet |
62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5505#A06ROTARY ENCODER OPTICAL 500PPR |
119 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5640#A06ROTARY ENCODER OPTICAL 500PPR |
94 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

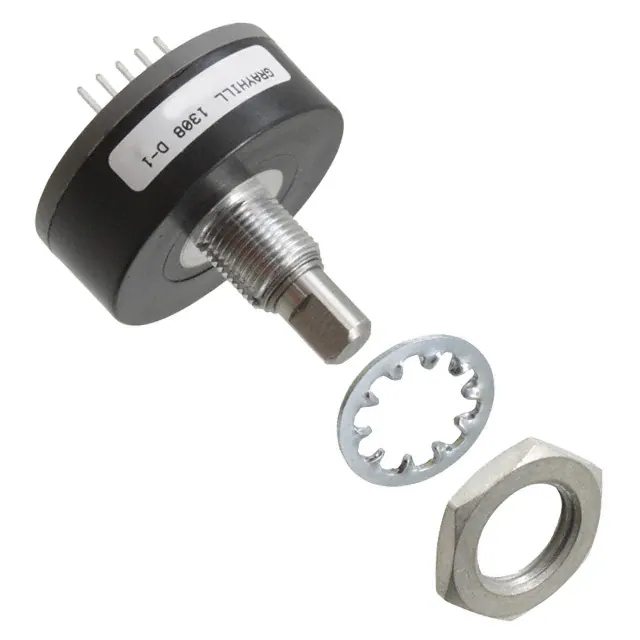

61R256ROTARY ENCODER OPTICAL 256PPR |
217 |
|
Datasheet |
61R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
AS20-M42M-P1120MM KITS 42B MT 5V 4MM SPI 4W |
105 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-S1120MM KITS 42B MT 5V 4MM SSI 2W |
94 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|

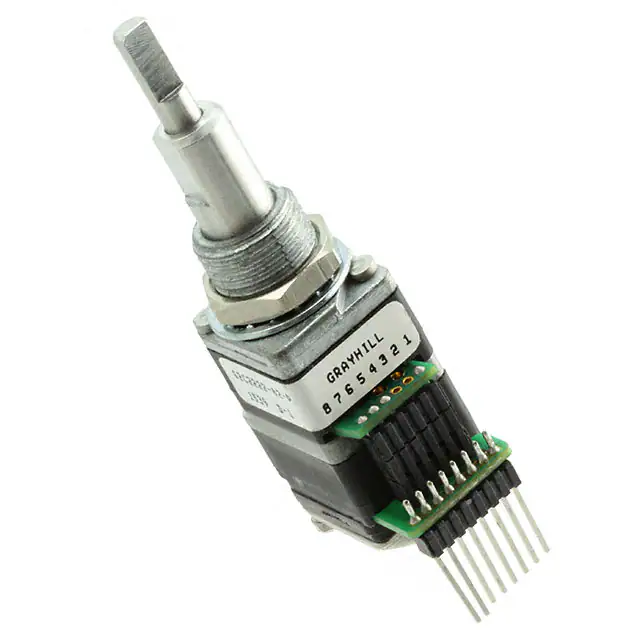

62C2222-02-PROTARY ENCODER OPTICAL 16PPR |
47 |
|
Datasheet |
62C | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | Concentric | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
62H3030-H9-PROTARY ENCODER OPTICAL 12PPR |
43 |
|
Datasheet |
62H | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 12 | 5V | Concentric | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
PEC12R-2225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,151 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC12R-4115F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,150 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

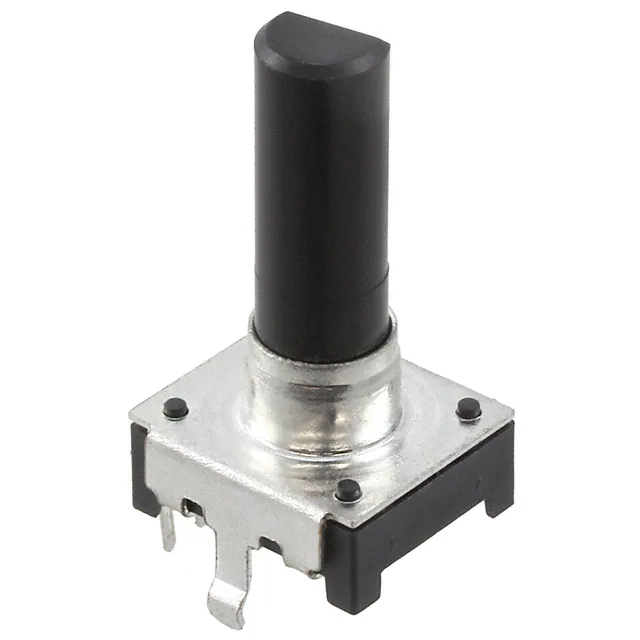

PEC12R-4125F-N0012ROTARY ENCODER MECHANICAL 12PPR |
742 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN12-VN20AF20ROTARY ENCODER MECHANICAL 24PPR |
1,241 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-2225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,200 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

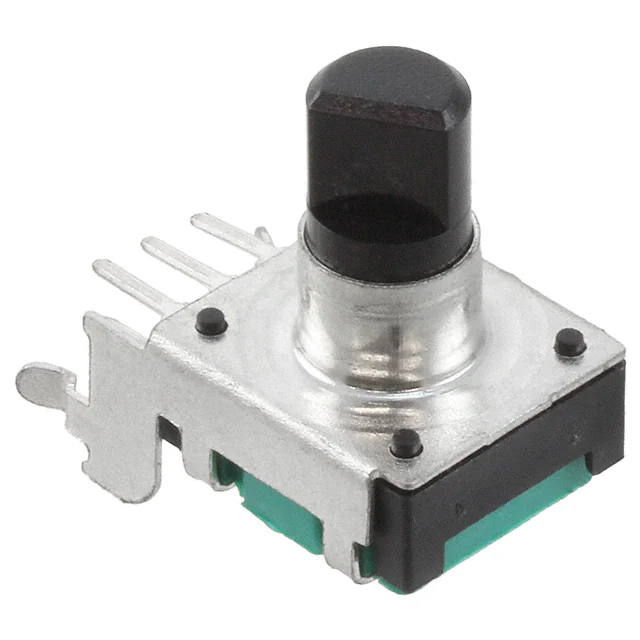

PEC12R-2217F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,150 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

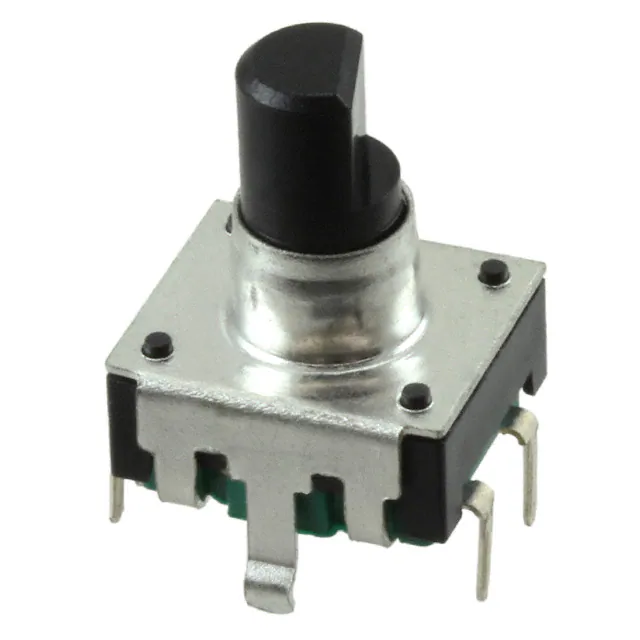

PEC12R-4217F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,142 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
