Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

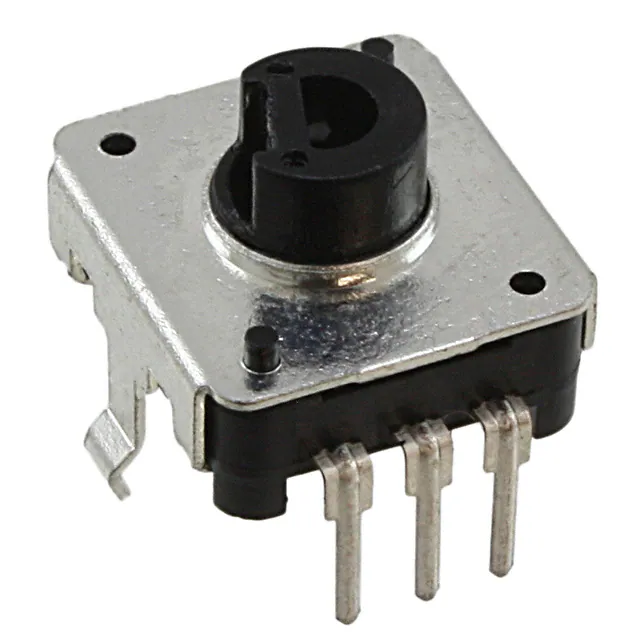

PES12-40S-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,021 |
|
Datasheet |
PES12 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-VSM1AF20ROTARY ENCODER MECHANICAL 20PPR |
4,354 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11L-4225F-S0015ROTARY ENCODER MECHANICAL 15PPR |
772 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4220F-S0015ROTARY ENCODER MECHANICAL 15PPR |
6,064 |
|
Datasheet |
PEC11 | Box | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
RIC11-31S10K2-GSMTINCR ENC, MECH, 15 PPR 30 DET, 5 |
922 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | Surface Mount | Vertical | Surface Mount (SMD,SMT) | 100K | - | - |
|
|
RIC11-31S15D7-GSMTINCR ENC, MECH, 15 PPR 30 DET, 5 |
606 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Surface Mount (SMD,SMT) | 100K | - | - |
|
EN16ABVM22B0F2016 MM ABSOLUTE ENCODER |
1,437 |
|
Datasheet |
EN16 | Bulk | Active | Not Verified | Absolute | Binary (Absolute) | - | 12V | Shaft | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 30K | - | - |
|
PEC11R-4230F-S0024ROTARY ENCODER MECHANICAL 24PPR |
2,137 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4120K-S0018ROTARY ENCODER MECHANICAL 18PPR |
1,680 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4320F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,099 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

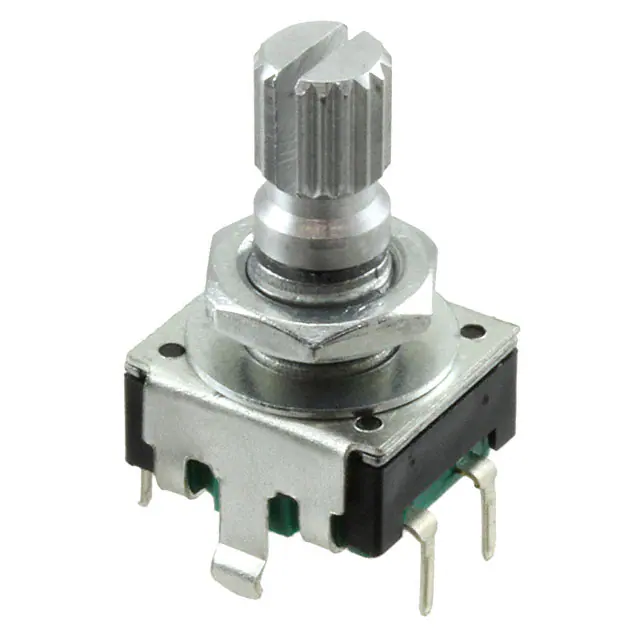

PEC11R-4015K-S0024ROTARY ENCODER MECHANICAL 24PPR |
685 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4015F-S0018ROTARY ENCODER MECHANICAL 18PPR |
445 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4115K-S0018ROTARY ENCODER MECHANICAL 18PPR |
192 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4120F-S0018ROTARY ENCODER MECHANICAL 18PPR |
192 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC05E1220203THROUGH SHAFT ENCODERS |
3,159 |
|
Datasheet |
EC05E | Tape & Reel (TR) | Active | - | Mechanical | Quadrature (Incremental) | 12 | 5V | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC12E2440301INSULATED SHAFT ENCODERS |
2,842 |
|
Datasheet |
EC12E | Tray | Active | - | Incremental | Quadrature (Incremental) | 24 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC12E2420301INSULATED SHAFT ENCODERS |
2,594 |
|
Datasheet |
EC12E | Tray | Active | - | Incremental | Quadrature (Incremental) | 24 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11J-9215F-S0015ENCODER 15 PULSE 15 MM W/SWITCH |
774 |
|
Datasheet |
PEC11J | Tray | Active | - | - | Quadrature, 2-Bit | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Gull Wing | 100K | - | - |
|
|
PEC11J-9215F-N0015ENCODER 15 PULSE 15 MM NO SWITCH |
757 |
|
Datasheet |
PEC11J | Tray | Active | - | - | Quadrature, 2-Bit | 15 | - | 6mm Dia Flatted End | Yes | No | Surface Mount | Vertical | Gull Wing | 100K | - | - |
|
EVE-VCGJL016BROTARY ENCODER MECHANICAL 16PPR |
734 |
|
Datasheet |
EVEV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
