EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSS1NB32A152Q91AFILTER LC(T) 1500PF TH |
2,402 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 1500pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
DSS1NB32A472Q91AFILTER LC(T) 4700PF TH |
1,187 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 4700pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
DSS1NB32A682Q91AFILTER LC(T) 6800PF TH |
1,116 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 6800pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
, Array, 10 PC Pad.jpg)
|
MEA2010PE220T001FILTER LC 22PF 250MHZ SMD |
10,343 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 250MHz (Cutoff) | 20dB @ 470MHz ~ 3GHz | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
|
|
MEA2010L75R0T001FILTER LC 75MHZ SMD |
8,937 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 75MHz (Cutoff) | 20dB @ 600MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
|
MEA2010LC100T002FILTER LC 10PF 270MHZ SMD |
6,808 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 270MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 10pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.024" (0.60mm) |
|
|
MEA2010LC150T002FILTER LC 15PF 240MHZ SMD |
32,115 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 240MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 15pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.024" (0.60mm) |
|
NFE61PT330B1H9LFILTER LC(T) 33PF SMD |
2,010 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 33pF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
NUF8001MUT2GFILTER RC(PI) 100 OHM/12PF SMD |
5,499 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 160MHz (Cutoff) | -25dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.138" L x 0.047" W (3.50mm x 1.20mm) | 0.022" (0.55mm) |
|
NUF2114MNT1GFILTER RC(PI) 9 OHM/60PF ESD SMD |
11,670 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | 50MHz (Cutoff) | -30dB @ 900MHz ~ 3GHz | 9 | - | R = 9Ohms, C = 60pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
ECLAMP2455K.TCTFILTER RC(PI) ESD SMD |
6,910 |
|
- |
EClamp™ | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.022" (0.55mm) |
|
NFE61HT101Z2A9LFILTER LC(T) 100PF SMD |
30,203 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 100pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
EMIF02-02OABRYFILTER 2LINE 6QFN |
3,022 |
|
- |
IPAD™ | 6-VDFN | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 2 | - | - | - | - | - | Yes | -40°C ~ 125°C | - | - | - | - | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.90mm) |
|
ECLAMP2378P.TCTFILTER RC(PI) 100 OHM/11PF SMD |
1,334 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | - | 30dB @ 1.8GHz ~ 2.5GHz | 100 | - | R = 100Ohms, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
P409QM473M275AH470FILTER RC 47 OHM/47NF TH |
245 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|

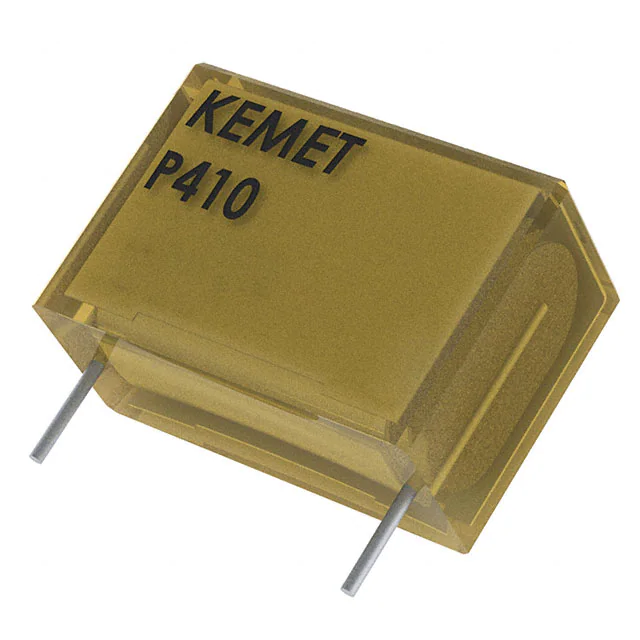

P410QS333M300AH101FILTER RC 100 OHM/33NF TH |
1,203 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 33nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) |
|
|
P409QM473M275AH101FILTER RC 100 OHM/47NF TH |
1,546 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
P410QM223M300AH101FILTER RC 100 OHM/22NF TH |
1,598 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 22nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
P409CE104M275AH470FILTER RC 47 OHM/0.1UF TH |
493 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
|
P409CP104M275AH331FILTER RC 330 OHM/0.1UF TH |
512 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 330 | - | R = 330Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
