CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5M40ZE64C5NIC CPLD 32MC 7.5NS 64EQFP |
2,996 |
|
Datasheet |
MAX® V | 64-TQFP Exposed Pad | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 40 | 32 | - | 54 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 64-EQFP (7x7) |
|
ATF1502ASV-15AU44IC CPLD 32MC 15NS 44TQFP |
1,620 |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Active | Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
5M80ZE64C5NIC CPLD 64MC 7.5NS 64EQFP |
914 |
|
Datasheet |
MAX® V | 64-TQFP Exposed Pad | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 80 | 64 | - | 54 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 64-EQFP (7x7) |
|
5M80ZT100C5NIC CPLD 64MC 7.5NS 100TQFP |
2,055 |
|
- |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 80 | 64 | - | 79 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1502AS-10AU44IC CPLD 32MC 10NS 44TQFP |
3,718 |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Active | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ATF1502AS-10JU44IC CPLD 32MC 10NS 44PLCC |
416 |
|
Datasheet |
ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
5M80ZE64I5NIC CPLD 64MC 7.5NS 64EQFP |
1,303 |
|
Datasheet |
MAX® V | 64-TQFP Exposed Pad | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 80 | 64 | - | 54 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 64-EQFP (7x7) |
|
|
5M80ZT100I5NIC CPLD 64MC 7.5NS 100TQFP |
337 |
|
- |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 80 | 64 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4032V-75TN48CIC CPLD 32MC 7.5NS 48TQFP |
22,522 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
ATF1504ASV-15AU44IC CPLD 64MC 15NS 44TQFP |
201 |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Active | Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
ATF1504AS-10JU44IC CPLD 64MC 10NS 44PLCC |
1,749 |
|
Datasheet |
ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
5M160ZE64C5NIC CPLD 128MC 7.5NS 64EQFP |
427 |
|
- |
MAX® V | 64-TQFP Exposed Pad | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 54 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 64-EQFP (7x7) |
|
|
ATF1504AS-10AU44IC CPLD 64MC 10NS 44TQFP |
1,286 |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Active | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
5M160ZT100C5NIC CPLD 128MC 7.5NS 100TQFP |
3,184 |
|
Datasheet |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 79 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064ZC-75TN48CIC CPLD 64MC 7.5NS 48TQFP |
1,255 |
|
Datasheet |
ispMACH® 4000Z | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 4 | 64 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|

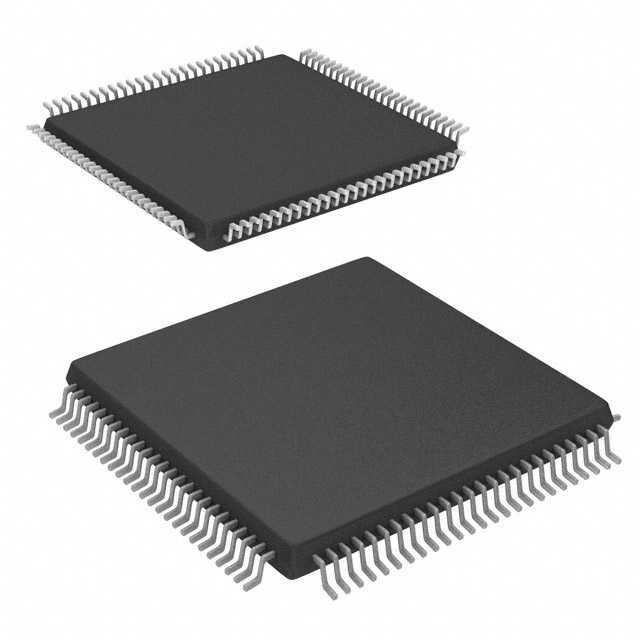

ATF1508ASV-15AU100IC CPLD 128MC 15NS 100TQFP |
317 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1504AS-10AU100IC CPLD 64MC 10NS 100TQFP |
654 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4064V-75TN44CIC CPLD 64MC 7.5NS 44TQFP |
556 |
|
Datasheet |
ispMACH® 4000V | 44-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 30 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
5M160ZE64I5NIC CPLD 128MC 7.5NS 64EQFP |
213 |
|
Datasheet |
MAX® V | 64-TQFP Exposed Pad | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 54 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 64-EQFP (7x7) |
|
|
5M240ZT100C5NIC CPLD 192MC 7.5NS 100TQFP |
357 |
|
- |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 79 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
