CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5M160ZT100I5NIC CPLD 128MC 7.5NS 100TQFP |
161 |
|
- |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 160 | 128 | - | 79 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4064V-10TN48IIC CPLD 64MC 10NS 48TQFP |
1,512 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|

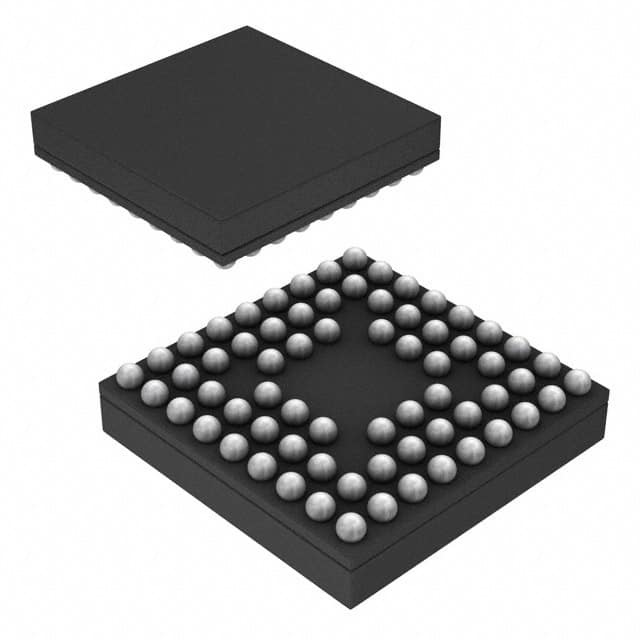

5M240ZM68C5NIC CPLD 192MC 7.5NS 68MBGA |
216 |
|
Datasheet |
MAX® V | 68-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.71V ~ 1.89V | 240 | 192 | - | 52 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 68-MBGA (5x5) |
|
LC4064V-75TN100CIC CPLD 64MC 7.5NS 100TQFP |
1,984 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-10TN100IIC CPLD 64MC 10NS 100TQFP |
711 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M570ZT100C5NIC CPLD 440MC 9NS 100TQFP |
3,095 |
|
Datasheet |
MAX® V | 100-TQFP | Tray | Active | Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M570ZT144C5NIC CPLD 440MC 9NS 144TQFP |
167 |
|
- |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LAMXO256C-3TN100EIC CPLD 128MC 4.9NS 100TQFP |
660 |
|
Datasheet |
LA-MachXO | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 4.9 ns | 1.71V ~ 3.465V | - | 128 | - | 78 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4128ZC-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
599 |
|
Datasheet |
ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1508AS-7AX100IC CPLD 128MC 7.5NS 100TQFP |
323 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-75TN100EIC CPLD 64MC 7.5NS 100TQFP |
246 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M1270ZT144C5NIC CPLD 980MC 6.2NS 144TQFP |
3,428 |
|
- |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
LC4128ZE-7TN144IIC CPLD 128MC 7.5NS 144TQFP |
135 |
|
Datasheet |
ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
ATF1508AS-10AU100IC CPLD 128MC 10NS 100TQFP |
548 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM240M100C5NIC CPLD 192MC 4.7NS 100MBGA |
869 |
|
Datasheet |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
EPM240F100C5NIC CPLD 192MC 4.7NS 100FBGA |
816 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
5M570ZM100I5NIC CPLD 440MC 9NS 100MBGA |
118 |
|
- |
MAX® V | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 9 ns | 1.71V ~ 1.89V | 570 | 440 | - | 74 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
LC4064V-5TN48IIC CPLD 64MC 5NS 48TQFP |
1,864 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
5M1270ZT144C4NIC CPLD 980MC 6.2NS 144TQFP |
165 |
|
Datasheet |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
5M1270ZT144I5NIC CPLD 980MC 6.2NS 144TQFP |
158 |
|
Datasheet |
MAX® V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 114 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
CPLDs (Complex Programmable Logic Devices) Electronic Components
Explore CPLDs (Complex Programmable Logic Devices) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
