CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4128V-75TN100CIC CPLD 128MC 7.5NS 100TQFP |
465 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM240T100I5NIC CPLD 192MC 4.7NS 100TQFP |
1,010 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|

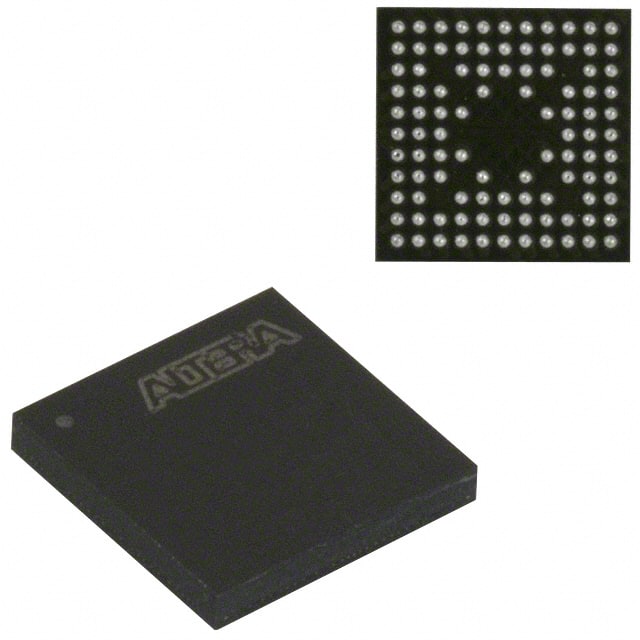

EPM240M100I5NIC CPLD 192MC 4.7NS 100MBGA |
438 |
|
Datasheet |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|

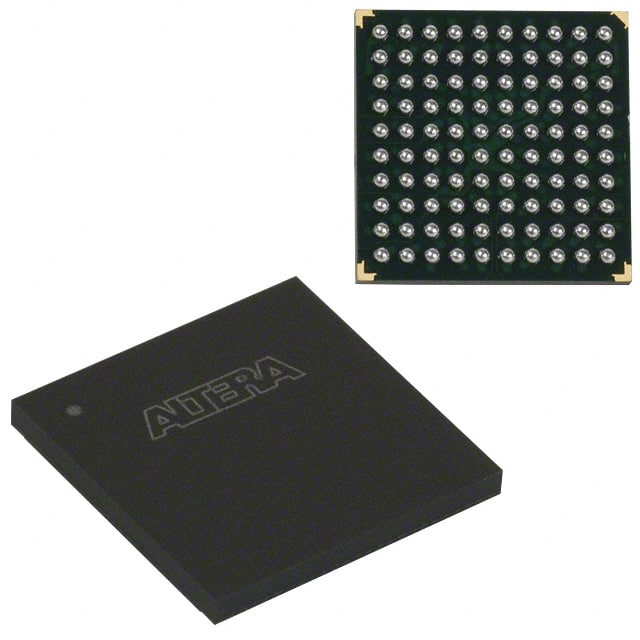

EPM240F100I5NIC CPLD 192MC 4.7NS 100FBGA |
673 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
5M1270ZF256I5NIC CPLD 980MC 6.2NS 256FBGA |
144 |
|
- |
MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 211 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM240T100A5NIC CPLD 192MC 4.7NS 100TQFP |
611 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
5M2210ZF256C5NIC CPLD 1700MC 7NS 256FBGA |
408 |
|
- |
MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 203 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
LC4256ZE-7TN100IIC CPLD 256MC 7.5NS 100TQFP |
244 |
|
Datasheet |
ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4256ZE-7TN144IIC CPLD 256MC 7.5NS 144TQFP |
762 |
|
Datasheet |
ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM240T100C3NIC CPLD 192MC 4.7NS 100TQFP |
222 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570F100C5NIC CPLD 440MC 5.4NS 100FBGA |
176 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
LC4256V-75TN100CIC CPLD 256MC 7.5NS 100TQFP |
1,085 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M2210ZF324I5NIC CPLD 1700MC 7NS 324FBGA |
127 |
|
- |
MAX® V | 324-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 271 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 324-FBGA (19x19) |
|
LC4256V-75TN144CIC CPLD 256MC 7.5NS 144TQFP |
292 |
|
Datasheet |
ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T144C5NIC CPLD 440MC 5.4NS 144TQFP |
175 |
|
Datasheet |
MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T100I5NIC CPLD 440MC 5.4NS 100TQFP |
261 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570T100C4NIC CPLD 440MC 5.4NS 100TQFP |
209 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM570F100I5NIC CPLD 440MC 5.4NS 100FBGA |
489 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM570F100C4NIC CPLD 440MC 5.4NS 100FBGA |
305 |
|
Datasheet |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
LC4256V-5TN144CIC CPLD 256MC 5NS 144TQFP |
89 |
|
Datasheet |
ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 16 | 256 | - | 96 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
CPLDs (Complex Programmable Logic Devices) Electronic Components
Explore CPLDs (Complex Programmable Logic Devices) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
