Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KLDR.400TXPFUSE CRTRDGE 400MA 600VAC/300VDC |
10 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 400mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR.250TXPFUSE CRTRDGE 250MA 600VAC/300VDC |
8 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 250mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR02.5TXPFUSE CRTRDGE 2.5A 600VAC/300VDC |
4 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2.5A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR012.TXPFUSE CARTRIDGE 12A 600VAC/300VDC |
4 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 12A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FRS-R-20FUSE CARTRIDGE 20A 600VAC/300VDC |
7 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.810" Dia x 3.00" L (20.57mm x 76.20mm) | - | - |
|
FWH5-010A6FFUSE BUSS 500V 10A 6X32 |
5 |
|
Datasheet |
FWH | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Active | Requires Holder | Cartridge | 10A | 500 VAC | - | Fast Blow | Electrical, Industrial | - | aR | CE, CSA, UL | - | 50kA | 0.252" Dia x 1.252" L (6.40mm x 31.80mm) | - | - |
|
0TLS040.TXLSFUSE CRTRDGE 40A 170VDC RAD BEND |
9 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 40A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|

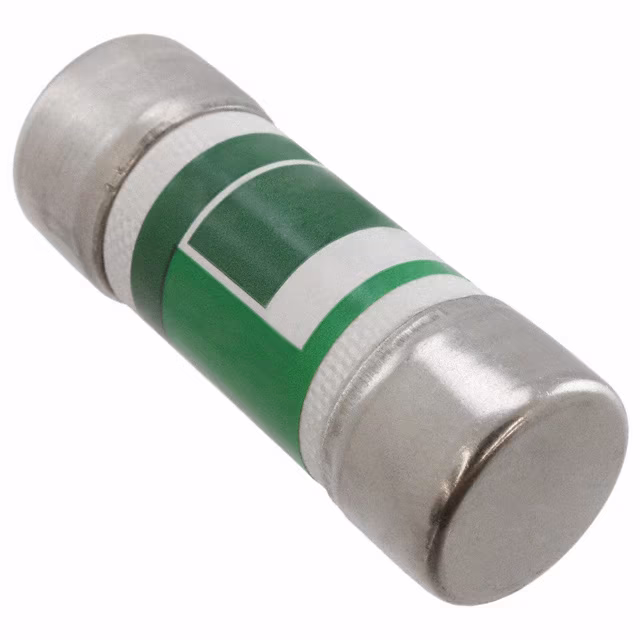

0JTD010.TFUSE CARTRIDGE 10A 600VAC/300VDC |
2 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
L50S010.TFUSE CARTRIDGE 10A 500VAC/450VDC |
13 |
|
Datasheet |
POWR-GARD® L50S | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 10A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
FWC-12A10FFUSE CARTRIDGE 12A 600VAC/700VDC |
4 |
|
Datasheet |
FWC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 600 VAC | 700 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
FWC-16A10FFUSE CARTRIDGE 16A 600VAC/700VDC |
9 |
|
Datasheet |
FWC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 16A | 600 VAC | 700 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 50kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0AKK-K100-BBFUSE 100A 1000V STUD MNT |
4 |
|
Datasheet |
0AKK | Rectangular, Blade | Box | Active | Bolt Mount | Rectangular | 100A | - | 1 kVDC | Fast Blow | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 2.913" L x 0.866" W x 0.984" H (74.00mm x 22.00mm x 25.00mm) | - | - |
|
JJS-30FUSE CARTRIDGE 30A 600VAC |
10 |
|
Datasheet |
Limitron™ JJS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 0.500" Dia x 1.885" L (12.70mm x 47.88mm) | - | - |
|
KTK-6FUSE CARTRIDGE 6A 600VAC 5AG |
3 |
|
Datasheet |
KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
0TLS100.TXLSFUSE CARTRIDGE 100A 170VDC |
16 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
|
0TLS070.TXLSFUSE CRTRDGE 70A 170VDC RAD BEND |
11 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 70A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
KTK-R-5FUSE CARTRIDGE 5A 600VAC 5AG |
2 |
|
Datasheet |
Limitron™ KTK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
JLLN070.VFUSE CARTRIDGE 70A 300VAC/125VDC |
10 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 0.843" L (20.60mm x 21.40mm) | - | - |
|
|
KTK-3FUSE CARTRIDGE 3A 600VAC 5AG |
2 |
|
Datasheet |
KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KTK-5FUSE CARTRIDGE 5A 600VAC 5AG |
10 |
|
Datasheet |
KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
