Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0HEV020.ZXPCBLFUSE CERAMIC 20A 450VDC 5AG |
45 |
|
Datasheet |
LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Active | Through Hole | Cartridge | 20A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
BK/GMF-5FUSE CARTRIDGE 5A 300VAC |
99 |
|
Datasheet |
GMF | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 5A | 300 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | - | - | - |
|
0SLC012.TFUSE CARTRIDGE 12A 600VAC/170VDC |
23 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 12A | 600 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | - | - |
|
|
0SLC002.TFUSE CARTRIDGE 2A 600VAC/170VDC |
13 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | - | - |
|
0BLS005.TFUSE CARTRIDGE 5A 600VAC 5AG |
7 |
|
Datasheet |
BLS | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
0304.750HRFUSE BRD MNT 750MA 277VAC/DC SMD |
198 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 750mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 56°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
|
0304.250HRFUSE BRD MNT 250MA 277VAC/DC SMD |
170 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 250mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 56°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
|
0304.500HRFUSE BRD MNT 500MA 277VAC/DC SMD |
191 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 500mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 84°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
FP410FUSE 11A 1KVAC |
12 |
|
Datasheet |
- | - | - | Active | - | - | 11A | 1 kVAC | - | - | Multi-Meters | - | - | - | - | - | - | - | - |
|
1301.0081FUSE 100A 500V NH-DIN 00C |
22 |
|
Datasheet |
- | - | - | Active | Requires Holder | Indicating Fuse | 100A | 500 VAC | - | - | Electrical, Industrial | Indicating | - | CE, VDE | - | 120kA | 2.13" L x 0.79" W x 1.42" H (54.0mm x 20.0mm x 36.0mm) | - | - |
|
KLKR008.TFUSE CARTRIDGE 8A 600VAC/300VDC |
82 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 8A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SLC030.TFUSE CARTRIDGE 30A 480VAC/170VDC |
10 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 480 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 1.626" L (10.30mm x 41.30mm) | - | - |
|
FNM-2FUSE CARTRIDGE 2A 250VAC 5AG |
8 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 100A | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

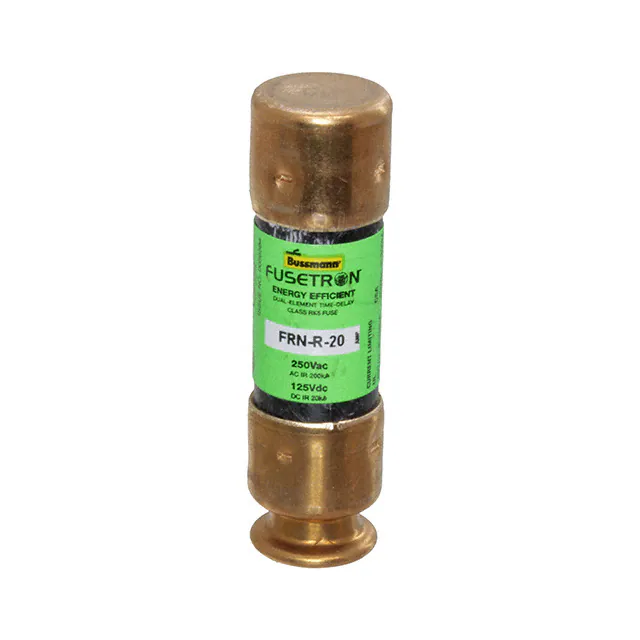

FRN-R-20FUSE CARTRIDGE 20A 250VAC/125VDC |
7 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 20A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.560" Dia x 2.000" L (14.22mm x 50.80mm) | - | - |
|
0CNN060.VFUSE STRIP 60A 125VAC/48VDC BOLT |
48 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 60A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FRN-R-15FUSE CARTRIDGE 15A 250VAC/125VDC |
7 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.560" Dia x 2.000" L (14.22mm x 50.80mm) | - | - |
|
|
FNM-30FUSE CARTRIDGE 30A 250VAC 5AG |
24 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
FNM-20FUSE CARTRIDGE 20A 250VAC 5AG |
45 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0HEV030.ZXBDFUSE CARTRIDGE 30A 450VDC BOLT |
43 |
|
Datasheet |
LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 30A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | - | - |
|
|
FNM-1FUSE CARTRIDGE 1A 250VAC 5AG |
7 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 35A | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
