Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FNM-12FUSE CARTRIDGE 12A 250VAC 5AG |
91 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
LA60Q152FUSE CRTRDGE 15A 600VAC/VDC 5AG |
16 |
|
Datasheet |
POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 15A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA AC, 100kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
LNNB0002ZFUSE DUMMY 5AG |
13 |
|
- |
LNNB | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | - | Dummy | - | - | - | - | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|
|
FNM-25FUSE CARTRIDGE 25A 250VAC 5AG |
10 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
BK/GLD-3FUSE CARTRIDGE 3A 125VAC CYLINDR |
43 |
|
Datasheet |
GLD | Cylindrical, Alarm Indicator, 3AG, 1/4" x 1 1/4" | Bulk | Active | Requires Holder | Cartridge | 3A | 125 VAC | - | Fast Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | - | 10kA | 0.252" Dia x 1.268" L (6.40mm x 32.20mm) | - | - |
|
0AKNBK100-BBFUSE 100A 500V STUD MNT |
7 |
|
Datasheet |
0AKN | Rectangular, Blade | Box | Active | Bolt Mount | Rectangular | 100A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 1.929" L x 0.866" W x 0.984" H (49.00mm x 22.00mm x 25.00mm) | - | - |
|

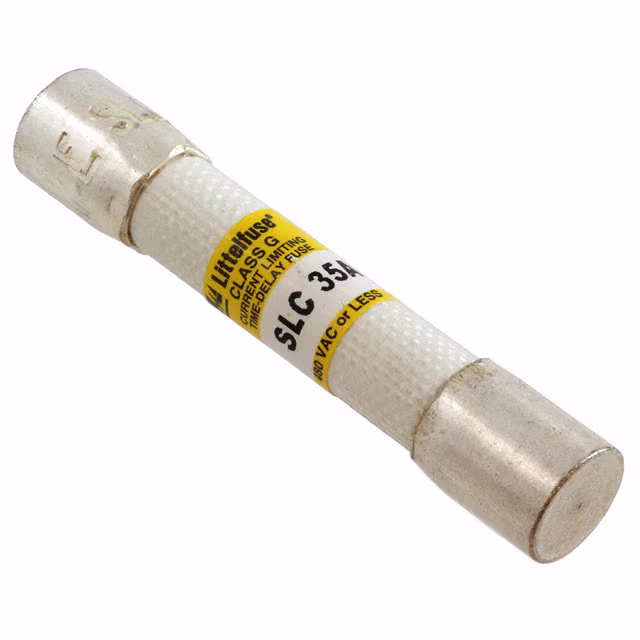

0SLC035.TFUSE CARTRIDGE 35A 480VAC/170VDC |
11 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 35A | 480 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | - | - |
|
BBS-5FUSE CARTRIDGE 5A 600VAC |
9 |
|
Datasheet |
BBS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.410" Dia x 1.380" L (10.41mm x 35.05mm) | - | - |
|
BBS-3FUSE CARTRIDGE 3A 600VAC |
10 |
|
Datasheet |
BBS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.410" Dia x 1.380" L (10.41mm x 35.05mm) | - | - |
|
0SPF030.HFUSE CARTRIDGE 30A 1KVDC 5AG |
100 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF008.HFUSE CARTRIDGE 8A 1KVDC 5AG |
64 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF012.TFUSE CARTRIDGE 12A 1KVDC 5AG |
11 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF008.TFUSE CARTRIDGE 8A 1KVDC 5AG |
14 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF003.TFUSE CARTRIDGE 3A 1KVDC 5AG |
13 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0NLS010.TFUSE CARTRIDGE 10A 600VAC/500VDC |
10 |
|
Datasheet |
POWR-GARD® NLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
FNQ-5FUSE CARTRIDGE 5A 500VAC 5AG |
11 |
|
Datasheet |
FNQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 500 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FRN-R-5FUSE CARTRIDGE 5A 250VAC/125VDC |
8 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.560" Dia x 2.000" L (14.22mm x 50.80mm) | - | - |
|
FLSR030.TXIDFUSE CARTRIDGE 30A 600VAC/300VDC |
11 |
|
Datasheet |
POWR-GARD® FLSR_ID | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
KLKR010.TSFUSE CARTRIDGE 10A 600VAC/300VDC |
7 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Fast Blow | Motor Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FLSR010.TFUSE CARTRIDGE 10A 600VAC/300VDC |
11 |
|
Datasheet |
POWR-GARD® FLSR | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
