Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
155.0892.6121FUSE SQUARE 125A 58VDC RECT |
62 |
|
Datasheet |
CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 125A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|
0BLN006.TFUSE CARTRIDGE 6A 250VAC 5AG |
2 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLF025.TFUSE CARTRIDGE 25A 125VAC 5AG |
50 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 125 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLF030.TFUSE CARTRIDGE 30A 125VAC 5AG |
44 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 125 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLN025.TFUSE CARTRIDGE 25A 250VAC 5AG |
43 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLN003.TFUSE CARTRIDGE 3A 250VAC 5AG |
40 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

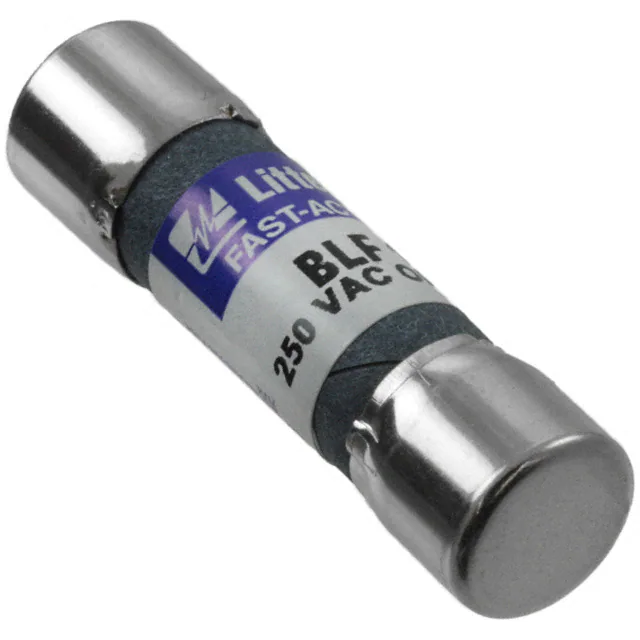

0BLF015.TFUSE CARTRIDGE 15A 250VAC 5AG |
21 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF002.TFUSE CARTRIDGE 2A 250VAC 5AG |
19 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF003.TFUSE CARTRIDGE 3A 250VAC 5AG |
17 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLN008.TFUSE CARTRIDGE 8A 250VAC 5AG |
16 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF020.TFUSE CARTRIDGE 20A 125VAC 5AG |
10 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 125 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLN005.TFUSE CARTRIDGE 5A 250VAC 5AG |
9 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF005.TFUSE CARTRIDGE 5A 250VAC 5AG |
9 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF007.TFUSE CARTRIDGE 7A 250VAC 5AG |
8 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 7A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF012.TFUSE CARTRIDGE 12A 250VAC 5AG |
8 |
|
Datasheet |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0AKLB9200-PDFUSE 20A 1000V STUD MNT |
40 |
|
Datasheet |
0AKL | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 20A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.413" Dia x 1.535" L (10.50mm x 39.00mm) | - | - |
|
0ALEB9500-PDFUSE 50A 500V STUD MNT |
42 |
|
Datasheet |
0ALE | Cylindrical, Blade Terminal (Bolt) | Tray | Active | Bolt Mount | Cartridge | 50A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.409" Dia x 1.496" L (10.40mm x 38.00mm) | - | - |
|
|
0AKLB9100-PDFUSE 10A 1000V STUD MNT |
27 |
|
Datasheet |
0AKL | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 10A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.413" Dia x 1.535" L (10.50mm x 39.00mm) | - | - |
|
|
0AKLB9150-PDFUSE 15A 1000V STUD MNT |
9 |
|
Datasheet |
0AKL | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 15A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.413" Dia x 1.535" L (10.50mm x 39.00mm) | - | - |
|
0AKMB9600-BDFUSE 60A 500V STUD MNT |
17 |
|
Datasheet |
0AKM | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.591" Dia x 1.559" L (15.00mm x 39.60mm) | - | - |
