Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFJ-60FUSE CARTRIDGE 60A 600VAC/450VDC |
2 |
|
Datasheet |
DFJ | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 600 VAC | 450 VDC | - | Electrical, Industrial | - | J | CE, CSA, UL | - | 200kA AC, 100kA DC | 1.060" Dia x 2.380" L (26.92mm x 60.45mm) | - | - |
|
ANN-125BUSS AIRCRAFT LIMITER |
5 |
|
Datasheet |
ANN | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 125A | 125 VAC | 80 VDC | Fast Blow | Electrical, Industrial | - | - | CSA | - | 2.5kA AC, 2.7kA DC | 3.189" L x 0.874" W (81.00mm x 22.20mm) | - | - |
|
LPJ-60SPFUSE CARTRIDGE 60A 600VAC/300VDC |
11 |
|
Datasheet |
LOW-PEAK™ LPJ | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.060" Dia x 2.380" L (26.92mm x 60.45mm) | - | - |
|
|
FWH-35BFUSE CARTRIDGE 35A 500VAC/VDC |
2 |
|
Datasheet |
FWH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 35A | 500 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA AC, 50kA DC | - | - | - |
|

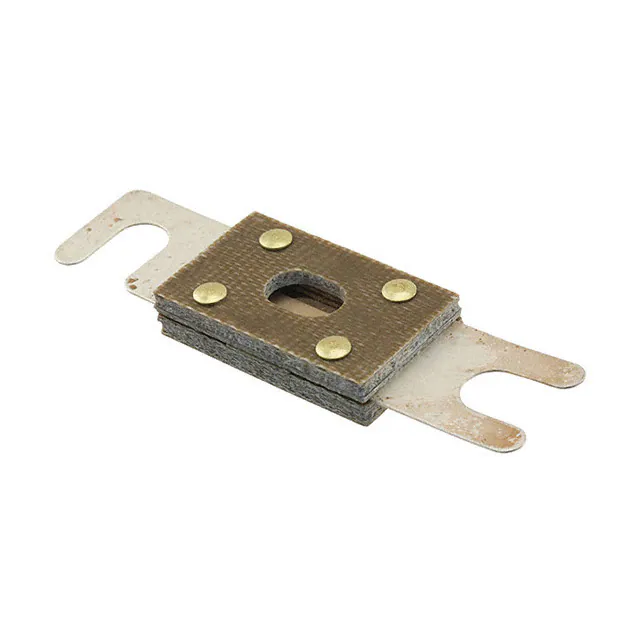

ANL-125FUSE STRIP 125A 80VDC RECT |
5 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 125A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|

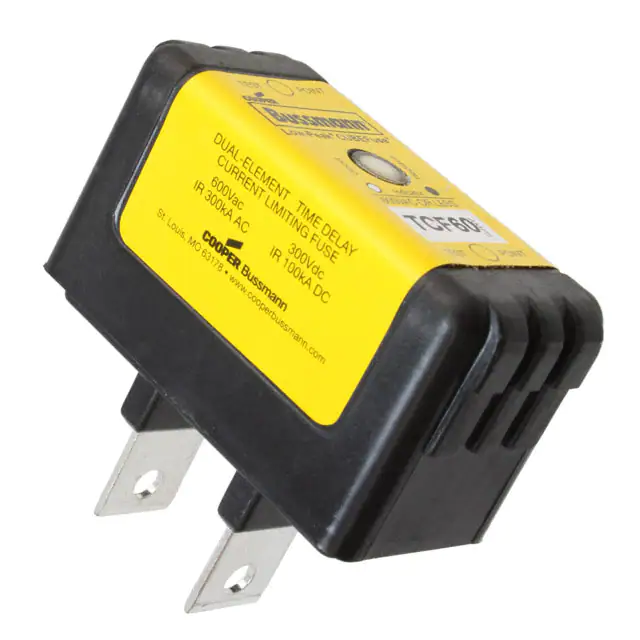

TCF60FUSE RECT 60A 600VAC/300VDC BLAD |
4 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 60A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
170M1318FUSE SQUARE 125A 700VAC RECT |
10 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 125A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 2.126" L x 0.827" W x 1.575" H (54.00mm x 21.00mm x 40.00mm) | - | - |
|
0JTD100.VFUSE CRTRDGE 100A 600VAC/300VDC |
20 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
JLLN350.XFUSE CRTRDGE 350A 300VAC/125VDC |
21 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
|
170M1321FUSE SQUARE 250A 700VAC RECT |
10 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 250A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 2.126" L x 0.827" W x 1.575" H (54.00mm x 21.00mm x 40.00mm) | - | - |
|
FWX-60AFUSE CARTRIDGE 60A 250VAC/VDC |
6 |
|
Datasheet |
FWX | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 60A | 250 VAC | 250 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 0.810" Dia x 3.190" L (20.57mm x 81.03mm) | - | - |
|
L50QS400.VFUSE CRTRDGE 400A 500VAC/VDC |
8 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
|
170M1320FUSE SQUARE 200A 700VAC RECT |
11 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 200A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 2.126" L x 0.827" W x 1.575" H (54.00mm x 21.00mm x 40.00mm) | - | - |
|
|
HSJ200600V 200A CLASS J HS FUSE |
12 |
|
Datasheet |
HSJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.614" Dia x 5.748" L (41.00mm x 146.00mm) | - | - |
|
|
HSJ125600V 125A CLASS J HS FUSE |
5 |
|
Datasheet |
HSJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.614" Dia x 5.748" L (41.00mm x 146.00mm) | - | - |
|

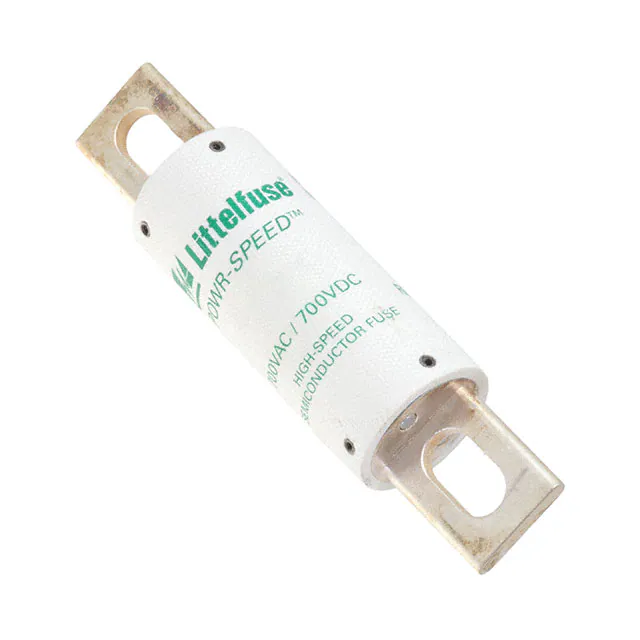

L70QS125.VFUSE CRTRDGE 125A 700VAC/700VDC |
13 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 5.085" L (30.94mm x 129.16mm) | - | - |
|
SPFJ070.XFUSE CARTRIDGE 70A 1KVDC CYLINDR |
7 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
LPJ-125SPFUSE CRTRDGE 125A 600VAC/300VDC |
5 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 125A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
|
12ABCNA3.15FUSE CARTRIDGE 3.15A 12KVAC |
12 |
|
Datasheet |
- | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 3.15A | 12 kVAC | - | - | Transformer Protection | - | - | - | - | 45kA | 0.984" Dia x 7.678" L (24.99mm x 195.02mm) | - | - |
|
|
M100J30SWITCH.FUS 100A J R 3+0 POS. |
4 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
