Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMR17.5TXPFUSE CRTRDGE 17.5A 600VAC/500VDC |
32 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 17.5A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0FLQ030.TFUSE CARTRIDGE 30A 500VAC/300VDC |
30 |
|
Datasheet |
POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
FWH-005A6FFUSE CARTRIDGE 5A 500VAC/600VDC |
70 |
|
Datasheet |
FWH | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Active | Requires Holder | Cartridge | 5A | 500 VAC | 600 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 50kA AC, 50kA DC | 0.252" Dia x 1.252" L (6.40mm x 31.80mm) | - | - |
|
0SPF003.HXRFUSE CARTRIDGE 3A 1KVDC 5AG |
328 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 3A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLDR.750TXPFUSE CRTRDGE 750MA 600VAC/300VDC |
30 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 750mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR02.8TXPFUSE CRTRDGE 2.8A 600VAC/300VDC |
27 |
|
Datasheet |
POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2.8A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
JLLN050.TXPFUSE CARTRIDGE 50A 300VAC/160VDC |
53 |
|
Datasheet |
POWR-GARD® JLLN | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 50A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 0.875" L (14.30mm x 22.23mm) | - | - |
|
0FLU011.UFUSE CARTRIDGE 11A 1KVAC/VDC |
429 |
|
Datasheet |
FLU | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | CSA, UR | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
JLLN100.VFUSE CRTRDGE 100A 300VAC/125VDC |
47 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 0.843" L (20.60mm x 21.40mm) | - | - |
|
FWC-20A10FFUSE CARTRIDGE 20A 600VAC/700VDC |
129 |
|
Datasheet |
FWC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 700 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 50kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
JLLS060.TXPFUSE CARTRIDGE 60A 600VAC/300VDC |
34 |
|
Datasheet |
POWR-GARD® JLLS | Cartridge, Non-Standard | Box | Active | Bolt Mount | Cartridge | 60A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 0.994" Dia x 1.562" L (20.60mm x 39.70mm) | - | - |
|

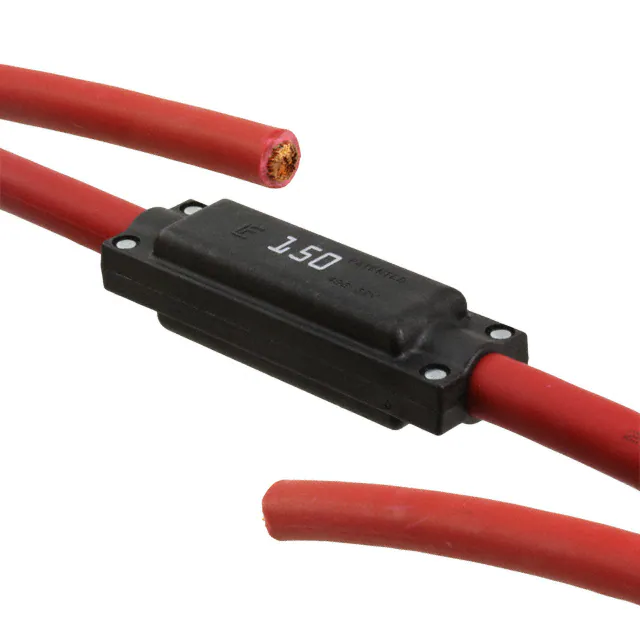

0496150.ZFUSE LINK 150A 32VDC IN-LINE |
66 |
|
Datasheet |
CABLEPRO® | In-Line | Bulk | Active | Free Hanging (In-Line) | Fuse Link | 150A | - | 32 VDC | - | Automotive | - | - | UL | -40°C ~ 125°C | 2kA | 2.394" L x 0.729" W x 0.661" H (60.80mm x 18.30mm x 16.80mm) | - | - |
|
PV-2A10FFUSE CARTRIDGE 2A 1KVDC 5AG |
33 |
|
Datasheet |
PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
FNQ-25FUSE CARTRIDGE 25A 500VAC 5AG |
5,197 |
|
Datasheet |
FNQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 500 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLM-12FUSE CRTRDGE 12A 600VAC/VDC 5AG |
75 |
|
Datasheet |
KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
JJN-50FUSE CARTRIDGE 50A 300VAC/160VDC |
49 |
|
Datasheet |
Limitron™ JJN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.560" Dia x 0.880" L (14.22mm x 22.35mm) | - | - |
|
|
KLM-2FUSE CARTRIDGE 2A 600VAC/VDC 5AG |
30 |
|
Datasheet |
KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
TCF6FUSE RECT 6A 600VAC/300VDC BLADE |
83 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 6A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
|
TCF50RNCUBEFUSE 50 AMP NON-INP |
36 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 50A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CF | CE, CSA, UL | -40°C ~ 80°C | 300kA | 2.126" L x 0.984" W x 1.142" H (54.00mm x 25.00mm x 29.00mm) | - | - |
|
|
L75QS100.V750VDC HIGHSPEED SEMICONDUCTOR F |
27 |
|
Datasheet |
POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
