Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JUK0E685MHDCAP 6.8F 20% 2.5V T/H |
43 |
|
Datasheet |
EVerCAP® JUK | Bulk | Last Time Buy | 6.8 F | ±20% | 2.5 V | 85mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | -40°C ~ 70°C |
|
LP10202R7505CAP 5F 20% 2.7V T/H |
100 |
|
Datasheet |
LP | Bulk | Obsolete | 5 F | ±20% | 2.7 V | 60mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -40°C ~ 85°C |
|
CHP5R5L405R-TW5.5V 4F 20*10*27 T/DA EDLC |
87 |
|
Datasheet |
CHP-5.5V | Box | Active | 4 F | - | 5.5 V | 150mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 0.787" L x 0.394" W (20.00mm x 10.00mm) | 1.122" (28.50mm) | -40°C ~ 70°C |
|
LP10302R7106CAP 10F 20% 2.7V T/H |
29 |
|
Datasheet |
LP | Bulk | Obsolete | 10 F | ±20% | 2.7 V | 45mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 85°C |
|
|
CHW-2R7156R-TW2.7V 15F 12.5X25 EDLC |
100 |
|
Datasheet |
CHW-2.7V | Box | Active | 15 F | - | 2.7 V | 35mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | -40°C ~ 85°C |
|
|
CXHP2R7506R-TW2.7V 50F 18X40 EDLC |
80 |
|
Datasheet |
CXHP-2.7V | Box | Active | 50 F | -20%, +80% | 2.7 V | 16mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -40°C ~ 70°C |
|
|
CHP5R0L505R-TWX5.0V 5.0F 25*12.5*22 EDLC |
62 |
|
Datasheet |
CHP | Bag | Active | 5 F | - | 5 V | 100mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 0.984" L x 0.492" W (25.00mm x 12.50mm) | 0.925" (23.50mm) | -40°C ~ 70°C |
|
|
CXP-3R0506R-TW3.0V 50F 18*40 EDLC |
96 |
|
Datasheet |
CXP-3.0V | Box | Active | 50 F | - | 3 V | 18mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | -40°C ~ 85°C |
|
|
CHP5R5L124R-TW5.5V 0.12F 9*4*12 EDLC |
41 |
|
Datasheet |
CHP | Bag | Active | 120 mF | - | 5.5 V | 2Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 0.354" L x 0.157" W (9.00mm x 4.00mm) | 0.531" (13.50mm) | -40°C ~ 70°C |
|
DZ-2R5D475TCAP 4.7F -20% +80% 2.5V T/H |
33 |
|
Datasheet |
DZ | Bulk | Active | 4.7 F | -20%, +80% | 2.5 V | 200mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | -25°C ~ 70°C |
|
|
CHP5R5L205R-TWQ5.5V 2.0F 13*7*27 T/DA EDLC |
78 |
|
Datasheet |
CHP | Box | Active | 2 F | 0%, +100% | 5.5 V | 190mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | - | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 1.122" (28.50mm) | -40°C ~ 70°C |
|
JUMT1106MHDCAP 10F 20% 2.7V T/H |
100 |
|
Datasheet |
EVerCAP® JUM | Bulk | Last Time Buy | 10 F | ±20% | 2.7 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | -25°C ~ 70°C |
|
|
JUM0H184ACDCAP 180MF 0% 40% 5.5V T/H |
29 |
|
Datasheet |
EVerCAP® JUM | Bulk | Last Time Buy | 180 mF | 0% , 40% | 5.5 V | 2Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.201" (5.10mm) | 0.650" Dia (16.50mm) | 0.532" (13.50mm) | -30°C ~ 85°C |
|
|
CXHP2R7107R-TWV2.7V 100F 18X60 EDLC |
94 |
|
Datasheet |
CXHP-2.7V | Box | Active | 100 F | -20%, +80% | 2.7 V | 13mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.441" (62.00mm) | -40°C ~ 70°C |
|
|
LIC1030Q3R81273.8V 120F 10*30 CAP LITH HYBRID |
54 |
|
Datasheet |
LIC-3.8V | Tray | Active | 120 F | - | 3.8 V | 95mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | -20°C ~ 65°C |
|
|
CHT-5R5L155R-TWQ5.5V 1.5F 13*7*24 T/DA EDLC |
31 |
|
Datasheet |
CHT-5.5V | Box | Active | 1.5 F | - | 5.5 V | 190mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 1.004" (25.50mm) | -40°C ~ 85°C |
|
|
CXP-3R0107R-TWV3.0V 100F 18X60 EDLC |
88 |
|
Datasheet |
CXP-3.0V | Box | Active | 100 F | - | 3 V | 13mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.709" Dia (18.00mm) | 2.441" (62.00mm) | -40°C ~ 85°C |
|
HVZ0E226NFCAP 22F 30% 2.7V T/H |
88 |
|
Datasheet |
HVZ | Bulk | Obsolete | 22 F | ±30% | 2.7 V | 100mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | -25°C ~ 60°C |
|

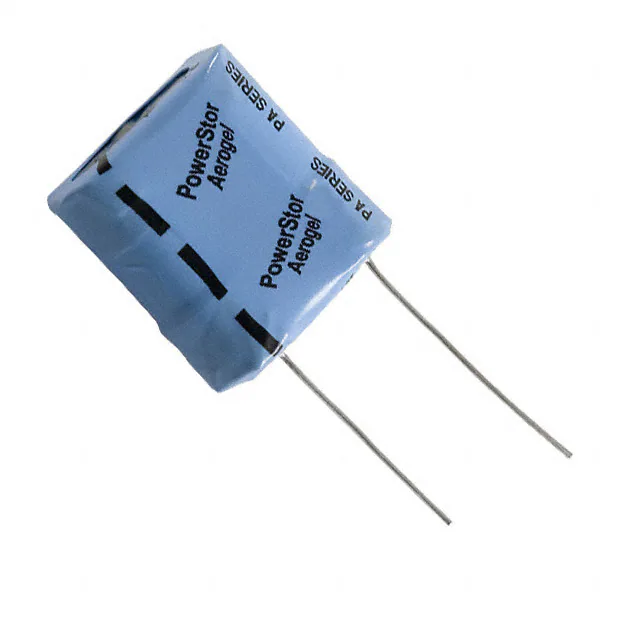

PA-5R0V474-RCAP 470MF -20% +80% 5V T/H |
0 |
|
Datasheet |
PA | Bulk | Obsolete | 470 mF | -20%, +80% | 5 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.209" (5.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 0.906" (23.00mm) | -25°C ~ 70°C |
|
|
SCCU30E356SRBQ35 F, 3.0VDC & 40M ESRDC |
30 |
|
Datasheet |
SCC | Bulk | Active | 35 F | -10%, +30% | 3 V | 20mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.287" (7.30mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | -40°C ~ 65°C |
