Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCCY83B507S3PBLESUPERCAP CYLINDRICAL |
8 |
|
Datasheet |
SCC LE | Bulk | Active | 500 F | -10%, +30% | 2.7 V | 1.2mOhm @ 1kHz | 2000 Hrs @ 65°C | Quick Connect, Disconnect | Chassis Mount | Radial, Can - 3 Lead | 0.810" (20.57mm) | 1.378" Dia (35.00mm) | 3.346" (85.00mm) | -40°C ~ 65°C |
|
|
TPLCE-3R8/850MR18X40CAP HYBRID 850F, 3.8V T/H |
90 |
|
Datasheet |
TPLCE | Bulk | Active | 850 F | ±20% | 3.8 V | 35mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/1000MR18X50CAP HYBRID 1000F, 3.8V T/H |
100 |
|
Datasheet |
TPLCE | Bulk | Active | 1000 F | ±20% | 3.8 V | 30mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | -25°C ~ 70°C |
|
|
SCPC28B136SNAHTCAP 13F -10%, +30% 2.5V SMD |
15 |
|
Datasheet |
PrizmaCap™ SCP | Tray | Active | 13 F | -10%, +30% | 2.5 V | 115mOhm @ 1kHz | 2000 Hrs @ 65°C | SMD (SMT) Tabs | Surface Mount | Nonstandard SMD | - | 1.969" L x 1.811" W (50.00mm x 46.00mm) | 0.110" (2.80mm) | -25°C ~ 65°C |
|
|
TPLCE-3R8/1400MR18X60CAP HYBRID 1400F, 3.8V T/H |
66 |
|
Datasheet |
TPLCE | Bulk | Active | 1400 F | ±20% | 3.8 V | 28mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.441" (62.00mm) | -25°C ~ 70°C |
|
|
SCCY1AB857S3PBLESUPERCAP CYLINDRICAL |
12 |
|
Datasheet |
SCC LE | Bulk | Active | 850 F | -10%, +30% | 2.7 V | 1mOhm @ 1kHz | 2000 Hrs @ 65°C | Quick Connect, Disconnect | Chassis Mount | Radial, Can - 3 Lead | 0.810" (20.57mm) | 1.378" Dia (35.00mm) | 4.606" (117.00mm) | -40°C ~ 65°C |
|
XB3585-2R5607-RCAP 600F 10% 2.5V T/H |
20 |
|
Datasheet |
XB | Bulk | Active | 600 F | ±10% | 2.5 V | 3.7mOhm | 1500 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.484" (88.50mm) | -25°C ~ 70°C |
|

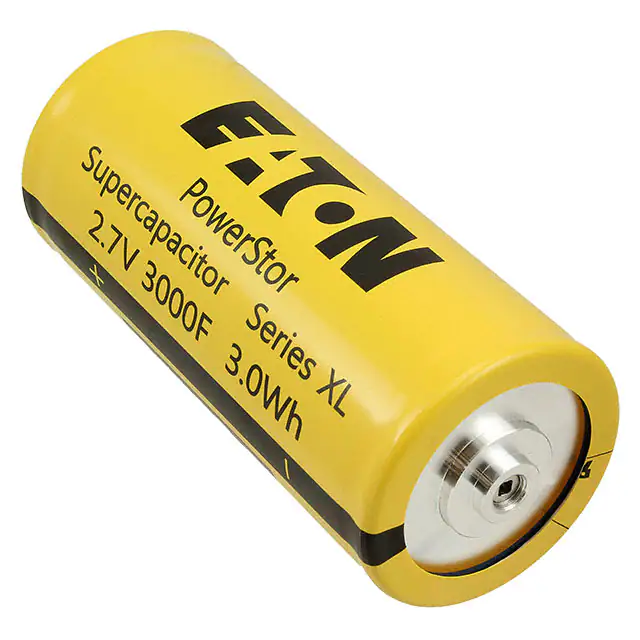

XL60-2R7308W-RCAP 3000F 0% +20% 2.7V CHAS MT |
18 |
|
Datasheet |
XL60 | Bulk | Active | 3000 F | 0%, +20% | 2.7 V | 0.23mOhm | 1500 Hrs @ 65°C | Weld Stud | Chassis Mount | Axial, Can | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
|
BCAP3400 P300 K053.0V 3400F ULTRACAPACITOR CELL |
15 |
|
Datasheet |
- | Box | Active | 3.55 F | - | 3 V | 0.23mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
|
BCAP3400 P300 K043.0V 3400F ULTRACAPACITOR CELL |
14 |
|
Datasheet |
- | Box | Active | 3.55 F | - | 3 V | 0.23mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
|
BMOD0165 P048 C0B48V 165F CAPACITOR MODULE |
2 |
|
Datasheet |
- | Box | Active | 165 F | - | 48 V | 6mOhm | 3000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 16.457" L x 7.638" W (418.00mm x 194.00mm) | 7.047" (179.00mm) | -40°C ~ 65°C |
|
|
XVM-259R2425-RCAP MODULE 4.17F 259.2V |
2 |
|
Datasheet |
XVM-259 | Bulk | Active | 4.17 F | -5%, +20% | 259.2 V | 310mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module, Screw Terminals | - | 21.654" L x 10.472" W (550.00mm x 266.00mm) | 2.705" (68.70mm) | -40°C ~ 65°C |
|
|
XLM-62R1137B-TCAP 130F 0%, +20% 62.1V CHAS MNT |
6 |
|
Datasheet |
XLM | Bulk | Active | 130 F | 0%, +20% | 62.1 V | 6.7mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 24.996" L x 6.937" W (634.90mm x 176.20mm) | 6.862" (174.30mm) | -40°C ~ 65°C |
|
|
XVM-259R2635-RCAP MODULE 6.25F 259.2V |
2 |
|
Datasheet |
XVM-259 | Bulk | Active | 6.25 F | -5%, +20% | 259.2 V | 250mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module, Screw Terminals | - | 21.654" L x 10.472" W (550.00mm x 266.00mm) | 3.689" (93.70mm) | -40°C ~ 65°C |
|
DRL105Q0TF12RRCAP 1F 2.7V T/H |
950 |
|
Datasheet |
DRL | Bulk | Active | 1 F | -10%, +30% | 2.7 V | 200mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | -40°C ~ 65°C |
|
|
LX055104ADOUBLE LAYER CAPACITOR |
111 |
|
Datasheet |
Maxcap® | Bulk | Active | 100 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.201" (5.10mm) | 0.433" Dia (11.00mm) | 0.256" (6.50mm) | -25°C ~ 70°C |
|
|
CXHP2R7105R-TW2.7V 1F 8X12 EDLC |
324 |
|
Datasheet |
CXHP-2.7V | Box | Active | 1 F | -20%, +80% | 2.7 V | 160mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.551" (14.00mm) | -40°C ~ 70°C |
|
|
LM055473ADOUBLE LAYER CAPACITOR |
89 |
|
Datasheet |
Maxcap® | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 50Ohm @ 1kHz | 1000 Hrs @ 70°C | - | Surface Mount | Radial, Can - SMD | - | 0.413" Dia (10.50mm) | 0.217" (5.50mm) | -25°C ~ 70°C |
|
|
LX055224AMAXCAP 220MF 5.5V |
92 |
|
Datasheet |
Maxcap® | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.201" (5.10mm) | 0.512" Dia (13.00mm) | 0.354" (9.00mm) | -25°C ~ 70°C |
|
|
CXP-3R0505R-TW3.0V 5F 10X20 EDLC |
88 |
|
Datasheet |
CXP-3.0V | Box | Active | 5 F | - | 3 V | 75mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | -40°C ~ 85°C |
