Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JJC0E157MELCCAP 150F 20% 2.5V T/H |
21 |
|
Datasheet |
EVerCAP® JC | Bulk | Last Time Buy | 150 F | ±20% | 2.5 V | 40mOhm @ 1kHz | 2000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | -25°C ~ 60°C |
|
CHV-2R7407R-TW2.7V 400F 35X60 T/S4 EDLC |
45 |
|
Datasheet |
CHV-2.7V | Box | Active | 400 F | - | 2.7 V | 3.8mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.421" (61.50mm) | -40°C ~ 65°C |
|
|
CXP-3R0167R-TW3.0V 160F 22X55 T/S1 EDLC |
84 |
|
Datasheet |
CXP-3.0V | Box | Active | 160 F | - | 3 V | 7mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.244" (57.00mm) | -40°C ~ 85°C |
|

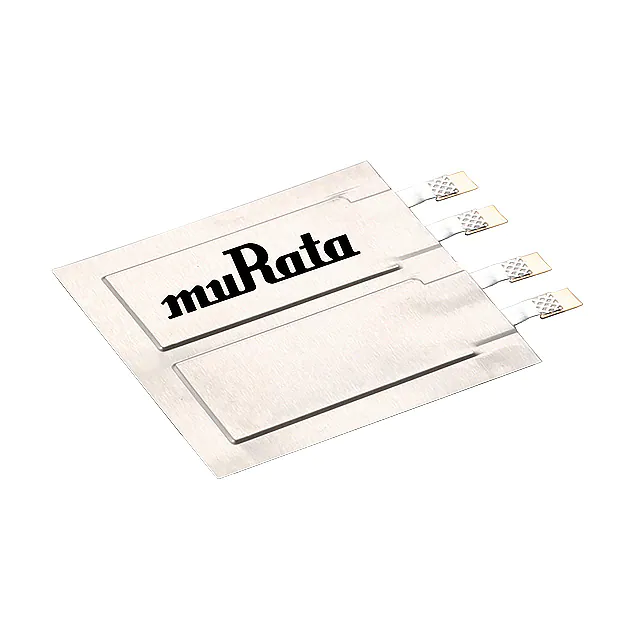

DMHA14R5V353M4ATA0CAP 35MF 2.25V -40-+85C |
16 |
|
- |
- | Bulk | Active | 35 mF | ±20% | 4.5 V | 300mOhm @ 1kHz | - | - | Surface Mount | 4-SMD | - | 0.787" L x 0.787" W (20.00mm x 20.00mm) | 0.016" (0.40mm) | -40°C ~ 85°C |
|
|
LIB1840Q4R01184.0V 1100F 18*40 CAP LITH HYBRID |
28 |
|
Datasheet |
LIB-4.0V | Tray | Active | 1100 F | - | 4 V | 25mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | -20°C ~ 65°C |
|
|
CHV-2R7307R-TWX2.7V 300F 30X50 T/S1 EDLC |
45 |
|
Datasheet |
CHV-2.7V | Box | Active | 300 F | - | 2.7 V | 5.5mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.028" (51.50mm) | -40°C ~ 65°C |
|
|
CXP-3R0367R-TW3.0V 360F 35*60 T/S4 EDLC |
44 |
|
Datasheet |
CXP-3.0V | Box | Active | 360 F | - | 3 V | 4mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | -40°C ~ 85°C |
|
|
CXP-3R0157R-TW3.0V 150F 25X50 T/S1 EDLC |
84 |
|
Datasheet |
CXP-3.0V | Box | Active | 150 F | - | 3 V | 7mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | -40°C ~ 85°C |
|
|
CHP5R5L206R-TW5.5V 20F 36*18*42 T/DA EDLC |
55 |
|
Datasheet |
CHP-5.5V | Box | Active | 20 F | - | 5.5 V | 36mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.417" L x 0.709" W (36.00mm x 18.00mm) | 1.713" (43.50mm) | -40°C ~ 70°C |
|
|
CHV-2R7367R-TW2.7V 360F 35X60 T/S4 EDLC |
45 |
|
Datasheet |
CHV-2.7V | Box | Active | 360 F | - | 2.7 V | 4mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.421" (61.50mm) | -40°C ~ 65°C |
|
BZ11CB223ZSBDHBESTCAP |
25 |
|
- |
BestCap® BZ | Bulk | Obsolete | 22 mF | -20%, +80% | 12 V | - | 1000 Hrs @ 70°C | - | Surface Mount | BZ01, 3 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | - | -20°C ~ 70°C |
|
|
CHP5R5L256R-TW5.5V 25F 36*18*42 T/DA EDLC |
67 |
|
Datasheet |
CHP-5.5V | Box | Active | 25 F | - | 5.5 V | 40mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.417" L x 0.709" W (36.00mm x 18.00mm) | 1.713" (43.50mm) | -40°C ~ 70°C |
|
|
CHQ-2R7407R-TW2.7V 400F 35*70 T/L4 EDLC |
99 |
|
Datasheet |
CHQ-2.7V | Box | Active | 400 F | - | 2.7 V | 1.2mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.756" (70.00mm) | -40°C ~ 85°C |
|
MAL219690103E3CAP 90F -20% +80% 2.8V T/H |
48 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 2.8 V | 30mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.276" (7.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.295" (7.50mm) | -20°C ~ 85°C |
|
|
CXP-3R0387R-TW3.0V 380F 35X60 T/S4 EDLC |
45 |
|
Datasheet |
CXP-3.0V | Box | Active | 380 F | - | 3 V | 3.8mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | -40°C ~ 85°C |
|
|
CHV-2R7457R-TW2.7V 450F 35X60 T/S4 EDLC |
45 |
|
Datasheet |
CHV-2.7V | Box | Active | 450 F | - | 2.7 V | 4mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.421" (61.50mm) | -40°C ~ 65°C |
|
|
CHP5R5L306R-TW5.5V 30F 36*18*42 T/DA EDLC |
65 |
|
Datasheet |
CHP-5.5V | Box | Active | 30 F | - | 5.5 V | 35mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.417" L x 0.709" W (36.00mm x 18.00mm) | 1.713" (43.50mm) | -40°C ~ 70°C |
|
|
CXP-3R0437R-TW3.0V 430F 35*66 T/S4 EDLC |
45 |
|
Datasheet |
CXP-3.0V | Box | Active | 430 F | - | 3 V | 3.2mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.677" (68.00mm) | -40°C ~ 85°C |
|
|
CHV-2R7507R-TWX2.7V 500F 35X60 T/S1 EDLC |
43 |
|
Datasheet |
CHV-2.7V | Box | Active | 500 F | - | 2.7 V | 3mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | 1.378" Dia (35.00mm) | 2.421" (61.50mm) | -40°C ~ 65°C |
|
|
HS230FCAP 1200MF 5.5V -40-+85C |
20 |
|
- |
- | Bulk | Active | 1.2 F | ±20% | 5.5 V | 54mOhm | - | - | Surface Mount | 3-SMD, Gull Wing | - | 1.535" L x 0.669" W (39.00mm x 17.00mm) | 0.154" (3.90mm) | -40°C ~ 85°C |
