Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSM236Q009W075PB23.3F, 9V, 57X57X19.5MM STD MOD |
54 |
|
Datasheet |
DSM | Bulk | Active | 23.3 F | -10%, +30% | 9 V | 122mOhm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 2.244" L x 0.768" W (57.00mm x 19.50mm) | 2.244" (57.00mm) | -40°C ~ 65°C |
|
DSF607Q3R0L600F 3.0V 35*70 |
94 |
|
Datasheet |
DSF | Bulk | Active | 600 F | -10%, +30% | 3 V | 3mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | -40°C ~ 65°C |
|
FT0H565ZFCAP 5.6F -20% +80% 5.5V T/H |
30 |
|
Datasheet |
FT | Bulk | Active | 5.6 F | -20%, +80% | 5.5 V | 600mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.787" (20.00mm) | 1.752" Dia (44.50mm) | 0.669" (17.00mm) | -40°C ~ 85°C |
|
SCAP,PBLS-5.6/13.5CAP 5.6F -10% +20% 13.5V UCAP PK |
27 |
|
Datasheet |
PBLS | Bulk | Active | 5.6 F | -10%, +20% | 13.5 V | 185mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 2.598" L x 0.551" W (66.00mm x 14.00mm) | 1.811" (46.00mm) | -40°C ~ 65°C |
|
SCCY1AB857SLBLECAP 850F 0% +100% 2.7V CHAS MT |
6 |
|
Datasheet |
SCC LE | Bulk | Active | 850 F | 0%, +100% | 2.7 V | 0.8mOhm @ 1kHz | 1000 Hrs @ 60°C | Weld Stud | Chassis Mount | Radial, Can | - | 1.378" Dia (35.00mm) | 4.606" (117.00mm) | -40°C ~ 65°C |
|

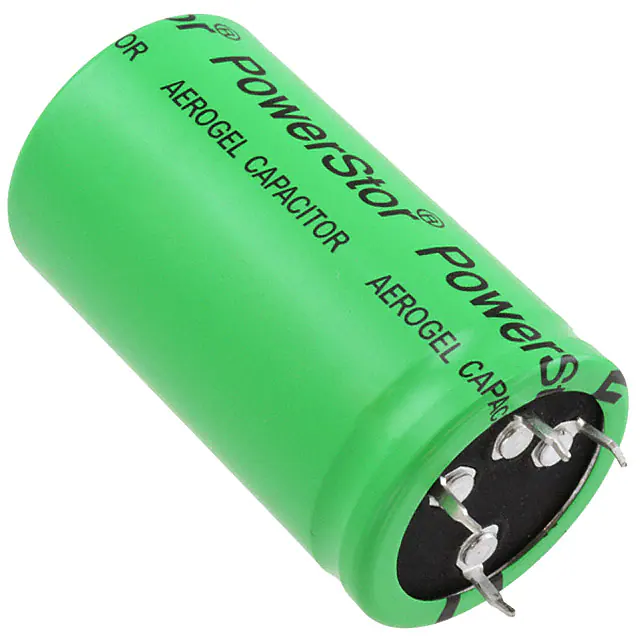

XB3560-2R5407-RCAP 400F 10% 2.5V T/H |
95 |
|
Datasheet |
XB | Bulk | Active | 400 F | ±10% | 2.5 V | 4.5mOhm | 1500 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.520" (64.00mm) | -25°C ~ 70°C |
|
TPLH-2R7/1200SL60X74CAP 1200F 2.7V CHASSIS MOUNT |
31 |
|
Datasheet |
TPLH-2.7V Threaded | Bulk | Active | 1200 F | - | 2.7 V | 0.25mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.362" Dia (60.00mm) | 2.933" (74.50mm) | -40°C ~ 65°C |
|
|
TPLH-2R7/2000SL60102CAP 2000F 2.7V CHASSIS MOUNT |
14 |
|
Datasheet |
TPLH-2.7V Threaded | Bulk | Active | 2000 F | - | 2.7 V | 0.21mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.362" Dia (60.00mm) | 4.035" (102.50mm) | -40°C ~ 65°C |
|
SKELCAP SCA1800CAP 1800F 2.85V CHASSIS MOUNT |
12 |
|
Datasheet |
- | Box | Active | 1800 F | - | 2.85 V | 0.27mOhm | 1500 Hrs @ 65°C | Weld Stud | Chassis Mount | Axial, Can | - | 2.370" Dia (60.20mm) | 3.358" (85.30mm) | -40°C ~ 65°C |
|
FS1B505ZFCAP 5F -20% +80% 12V T/H |
19 |
|
Datasheet |
FS | Bulk | Active | 5 F | -20%, +80% | 12 V | 4Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.787" (20.00mm) | 1.764" Dia (44.80mm) | 2.362" (60.00mm) | -25°C ~ 70°C |
|
PBLH-18R0/500SDSCAP,PBLH-166/54 |
4 |
|
Datasheet |
PBLH | Box | Active | 500 F | - | 18 V | 1.7mOhm | 1500 Hrs @ 65°C | - | Chassis Mount | Module | - | 18.504" L x 6.535" W (470.00mm x 166.00mm) | 2.795" (71.00mm) | -40°C ~ 65°C |
|
SM0006-150-NBCAPACITOR 6F 0%/20% 150V CHAS |
4 |
|
Datasheet |
- | Box | Active | 6 F | 0%, +20% | 150 V | 200mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 14.528" L x 9.449" W (369.00mm x 240.00mm) | 3.110" (79.00mm) | -40°C ~ 65°C |
|
|
HS0612-3R8505-RCAP 5F 3.8V THROUGH HOLE |
79 |
|
Datasheet |
- | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSL0612-3R8505-RCAP 5F 3.8V THROUGH HOLE |
90 |
|
Datasheet |
- | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TPLCE-3R8/3.0MR5X12CAP HYBRID 3.0F, 3.8V T/H |
80 |
|
Datasheet |
TPLCE | Bulk | Active | 3 F | ±20% | 3.8 V | 4Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.850" (47.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/8.0MR6X12CAP HYBRID 8.0F, 3.8V T/H |
64 |
|
Datasheet |
TPLCE | Bulk | Active | 8 F | ±20% | 3.8 V | 1.2Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.102" (2.60mm) | 0.248" Dia (6.30mm) | 0.551" (14.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/25MR8X14CAP HYBRID 25F, 3.8V T/H |
100 |
|
Datasheet |
TPLCE | Bulk | Active | 25 F | ±20% | 3.8 V | 400mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/22MR6X22CAP HYBRID 22F, 3.8V T/H |
75 |
|
Datasheet |
TPLCE | Bulk | Active | 22 F | ±20% | 3.8 V | 450mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.945" (24.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/40MR8X20CAP HYBRID 40F, 3.8V T/H |
78 |
|
Datasheet |
TPLCE | Bulk | Active | 40 F | ±20% | 3.8 V | 250mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
|
TPLCE-3R8/55MR10X16CAP HYBRID 55F, 3.8V T/H |
66 |
|
Datasheet |
TPLC | Bulk | Active | 55 F | ±20% | 3.8 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | -25°C ~ 70°C |
