Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC-SE0H224CAP 220MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
SE | Tape & Box (TB) | Obsolete | 220 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.213" Dia (5.40mm) | 0.528" (13.40mm) | -25°C ~ 70°C |
|
|
EEC-SE0H473CAP 47MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
SE | Tape & Box (TB) | Obsolete | 47 mF | -20%, +80% | 5.5 V | 120Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.213" Dia (5.40mm) | 0.528" (13.40mm) | -25°C ~ 70°C |
|
EEC-ER0E153CAP 15MF 2.6V SURFACE MNT |
0 |
|
Datasheet |
ER | Tape & Reel (TR) | Obsolete | 15 mF | - | 2.6 V | 300Ohm | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Nonstandard SMD | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) | -25°C ~ 60°C |
|
EEC-EP0F333YCAP 33MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | 33 mF | -20%, +80% | 3.3 V | 350Ohm @ 1kHz | 250 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Thin Terminals - Opposite Sides | - | 0.150" Dia (3.80mm) | 0.061" (1.55mm) | -10°C ~ 60°C |
|
|
EEC-EP0F303YCAP 30MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | 30 mF | -20%, +80% | 3.3 V | 350Ohm @ 1kHz | 250 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Thin Terminals - Opposite Sides | - | 0.150" Dia (3.80mm) | 0.039" (1.00mm) | -10°C ~ 60°C |
|
2.5DMB100M20X55CAP 100F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 100 F | ±20% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.244" (57.00mm) | -25°C ~ 70°C |
|
2.5DMB10M10X35CAP 10F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 10 F | ±20% | 2.5 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | -25°C ~ 70°C |
|
2.5DMB22M16X25CAP 22F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 22 F | ±20% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -25°C ~ 70°C |
|
2.5DMB2R2M8X16CAP 2.2F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 2.2 F | ±20% | 2.5 V | 1Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.709" (18.00mm) | -25°C ~ 70°C |
|
2.5DMB3R3M8X20CAP 3.3F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 3.3 F | ±20% | 2.5 V | 1Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
2.5DMB4R7M10X20CAP 4.7F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 4.7 F | ±20% | 2.5 V | 500mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
2.5DMB50M18X40CAP 50F 20% 2.5V THROUGH HOLE |
0 |
|
Datasheet |
DMB | Bulk | Obsolete | 50 F | ±20% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C |
|

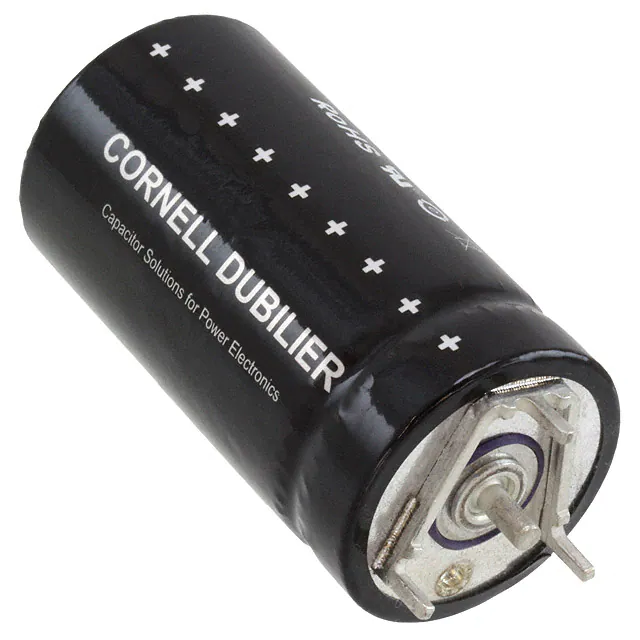

CDLC351E2R7T11CAP 350F 0% +20% 2.7V T/H |
0 |
|
Datasheet |
CDLC | Tray | Obsolete | 350 F | 0%, +20% | 2.7 V | 3.2mOhm | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - 4 Lead | 0.795" (20.20mm) | 1.311" Dia (33.30mm) | 2.421" (61.50mm) | -40°C ~ 65°C |
|
CDLC122P2R7K04CAP 1200F 0% +20% 2.7V CHAS MNT |
0 |
|
Datasheet |
CDLC | Tray | Obsolete | 1200 F | - | 2.7 V | 0.58mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 2.925" L (60.70mm x 74.30mm) | - | -40°C ~ 65°C |
|

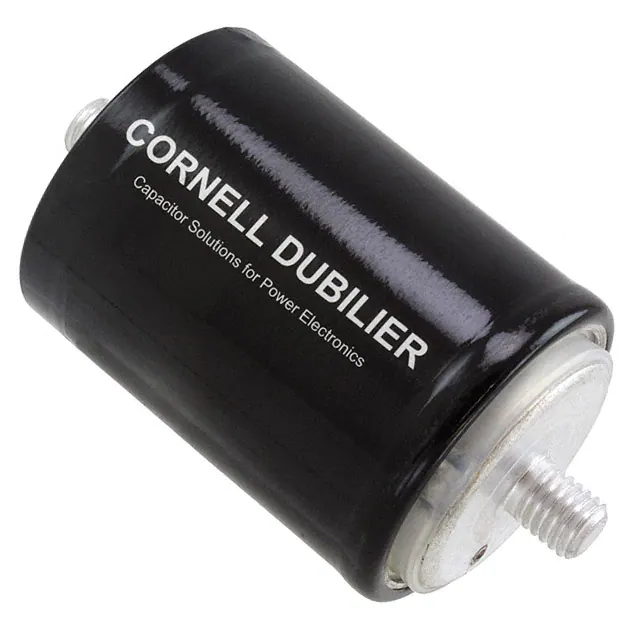

CDLC152P2R7K04CAP 1500F 0% +20% 2.7V CHAS MNT |
0 |
|
Datasheet |
CDLC | Tray | Obsolete | 1500 F | - | 2.7 V | 0.47mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 3.346" L (60.70mm x 85.00mm) | - | -40°C ~ 65°C |
|

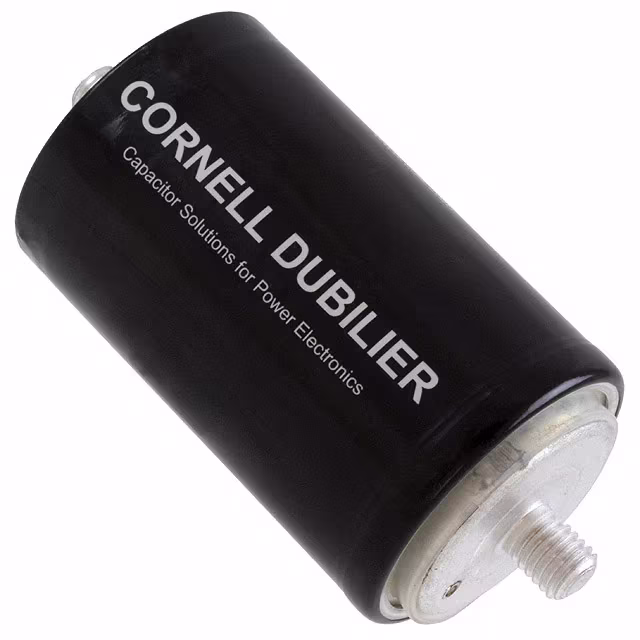

CDLC202P2R7K04CAP 2000F 0% +20% 2.7V CHAS MNT |
0 |
|
Datasheet |
CDLC | Tray | Obsolete | 2000 F | - | 2.7 V | 0.35mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 4.016" L (60.70mm x 102.00mm) | - | -40°C ~ 65°C |
|

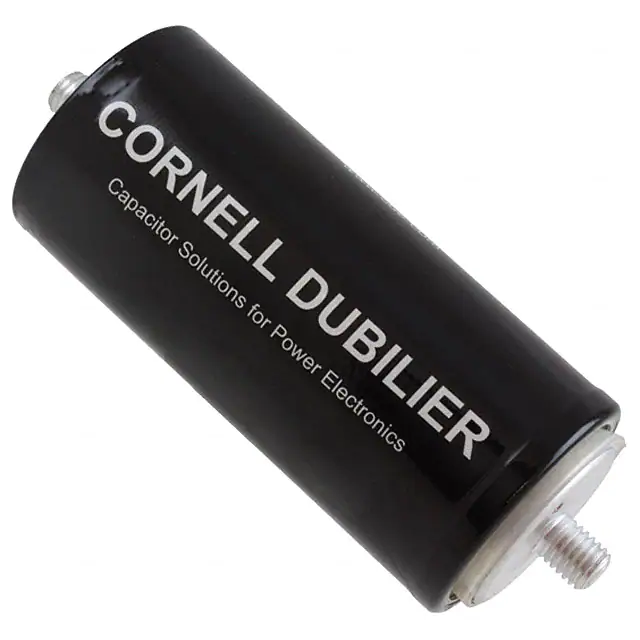

CDLC302P2R7K04CAP 3000F 0% +20% 2.7V CHAS MNT |
0 |
|
Datasheet |
CDLC | Tray | Obsolete | 3000 F | - | 2.7 V | 0.29mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
PAS0815LA2R3185CAP 1.8F 20% 2.3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 1.8 F | ±20% | 2.3 V | 1Ohm | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.669" (17.00mm) | -25°C ~ 60°C |
|
|
HB1850-2R5806-RCAP 80F -10% +30% 2.5V T/H |
0 |
|
Datasheet |
HB | Bulk | Active | 80 F | -10%, +30% | 2.5 V | - | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | - | - | - | -25°C ~ 70°C |
|
|
HB1245-2R5356-RCAP 35F -10% +30% 2.5V T/H |
0 |
|
Datasheet |
HB | Bulk | Active | 35 F | -10%, +30% | 2.5 V | - | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | - | - | - | -25°C ~ 70°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors Electronic Components
Explore Electric Double Layer Capacitors (EDLC), Supercapacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
