Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S501LF357V2R7ACAP 350F -5% +10% 2.7V T/H |
0 |
|
Datasheet |
S501 | Bulk | Obsolete | 350 F | -5%, +10% | 2.7 V | 3.1mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.402" (61.00mm) | -40°C ~ 65°C |
|

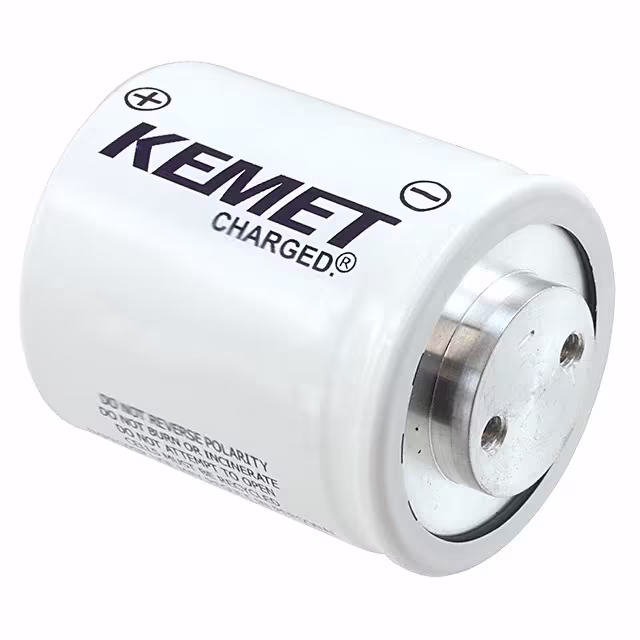

S301RP128R2R7WCAP 1200F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet |
S301 | Bulk | Obsolete | 1200 F | -0% | 2.7 V | 0.25mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 3.169" L (60.70mm x 80.50mm) | - | -40°C ~ 65°C |
|

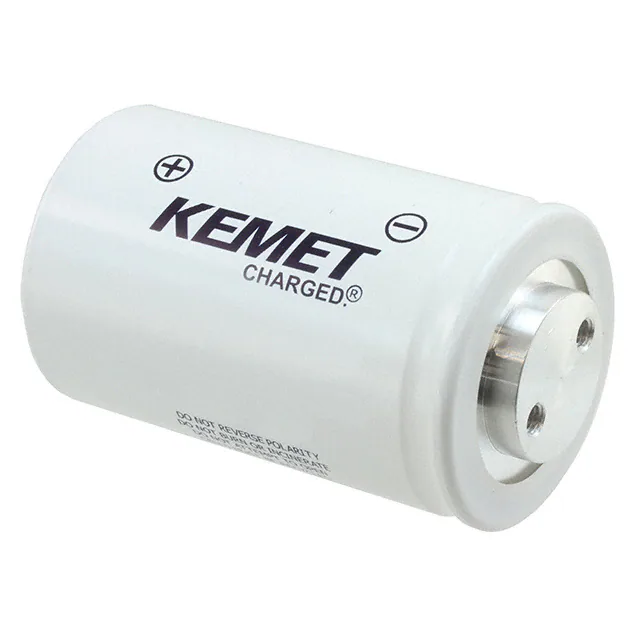

S301RS208R2R7WCAP 2000F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet |
S301 | Bulk | Obsolete | 2000 F | -0% | 2.7 V | 0.23mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 4.272" L (60.70mm x 108.50mm) | - | -40°C ~ 65°C |
|

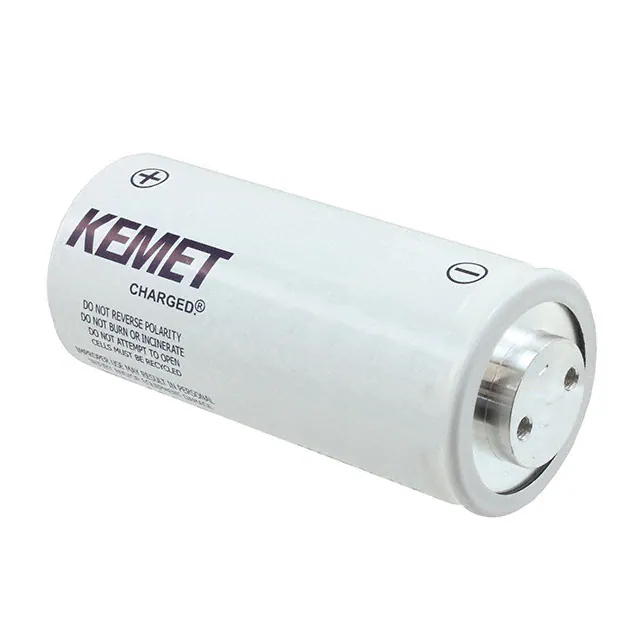

S301RV308R2R7WCAP 3000F 0% 2.7V CHASSIS MOUNT |
0 |
|
Datasheet |
S301 | Bulk | Obsolete | 3000 F | -0% | 2.7 V | 0.2mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 5.669" L (60.70mm x 144.00mm) | - | -40°C ~ 65°C |
|
S01PM5805K016ACAP 58F 10% 16V CHASSIS MT |
0 |
|
Datasheet |
S01 | Bulk | Obsolete | 58 F | ±10% | 16 V | 23mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 8.873" L x 2.000" W (225.37mm x 50.80mm) | 3.000" (76.20mm) | -40°C ~ 65°C |
|
PAS614L-VL3CAP 300MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
PAS | Tray | Discontinued at Digi-Key | 300 mF | - | 3.3 V | 80Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.071" (1.80mm) | -20°C ~ 60°C |
|
JJD0E408MSEGBNCAP 4000F 20% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
EVerCAP® JJD | Bulk | Obsolete | 4000 F | ±20% | 2.5 V | 2.2mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.024" (153.00mm) | -25°C ~ 60°C |
|
|
JJD0E608MSEHCAP 6000F 20% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
EVerCAP® JJD | Bulk | Obsolete | 6000 F | ±20% | 2.5 V | 2.2mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.614" (168.00mm) | -25°C ~ 60°C |
|
JJL0E857MSEDBNCAP 850F 20% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
EVerCAP® JL | Bulk | Active | 850 F | ±20% | 2.5 V | 2.5mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 0.740" (18.80mm) | 1.575" Dia (40.00mm) | 5.433" (138.00mm) | -25°C ~ 60°C |
|
MAL219691114E3CAP 4F -20% +80% 5.6V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 5.6 V | 10Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.394" (10.00mm) | 0.276" Dia x 0.394" L (7.00mm x 10.00mm) | 0.276" (7.00mm) | -20°C ~ 70°C |
|
MAL219691101E3CAP 4F -20% +80% 1.4V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 1.4 V | 2.5Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.295" (7.50mm) | 0.276" Dia (7.00mm) | 0.102" (2.60mm) | -20°C ~ 70°C |
|
MAL219691111E3CAP 4F -20% +80% 1.4V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 1.4 V | 2.5Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.110" (2.80mm) | 0.276" Dia x 0.098" L (7.00mm x 2.50mm) | 0.295" (7.50mm) | -20°C ~ 70°C |
|
|
MAL219691121E3CAP 4F -20% +80% 1.4V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 1.4 V | 2.5Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.126" (3.20mm) | 0.276" Dia x 0.098" L (7.00mm x 2.50mm) | 0.276" (7.00mm) | -20°C ~ 70°C |
|
|
MAL219691201E3CAP 15F -20% +80% 1.4V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 1.4 V | 600mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.492" (12.50mm) | 0.472" Dia (12.00mm) | 0.110" (2.80mm) | -20°C ~ 85°C |
|
|
MAL219691241E3CAP 15F -20% +80% 1.4V SMD |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 1.4 V | 600mOhm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals Same Side | 0.118" (3.00mm) | 0.492" Dia (12.50mm) | 0.110" (2.80mm) | -20°C ~ 85°C |
|
MAL219691261E3CAP 15F -20% +80% 1.4V SNAP |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 1.4 V | 600mOhm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | User Defined | Coin | - | 0.472" Dia x 0.571" L (12.00mm x 14.50mm) | 0.138" (3.50mm) | -20°C ~ 85°C |
|

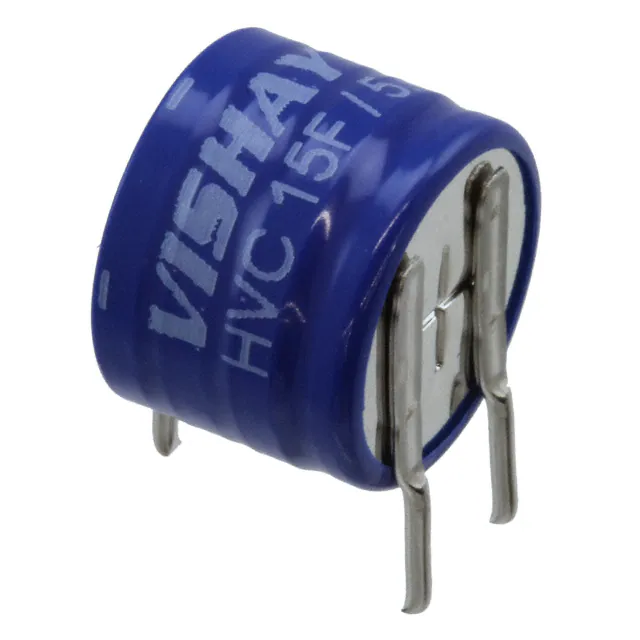

MAL219691212E3CAP 15F -20% +80% 2.8V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 2.8 V | 1.2Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.228" (5.80mm) | 0.472" Dia x 0.197" L (12.00mm x 5.00mm) | 0.472" (12.00mm) | -20°C ~ 85°C |
|
|
MAL219691262E3CAP 15F -20% +80% 2.8V SNAP |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 2.8 V | 1.2Ohm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | User Defined | Coin | - | 0.945" L x 0.571" W (24.00mm x 14.50mm) | 0.138" (3.50mm) | -20°C ~ 85°C |
|
|
MAL219691103E3CAP 4F -20% +80% 4.2V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 4.2 V | 7.5Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.295" (7.50mm) | 0.276" Dia (7.00mm) | 0.295" (7.50mm) | -20°C ~ 70°C |
|
MAL219691123E3CAP 4F -20% +80% 4.2V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 4.2 V | 7.5Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.295" (7.50mm) | 0.276" Dia x 0.295" L (7.00mm x 7.50mm) | 0.276" (7.00mm) | -20°C ~ 70°C |
