Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

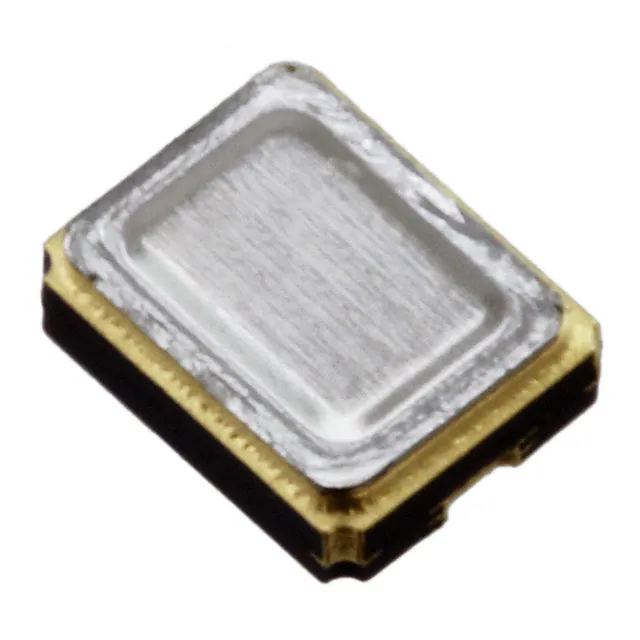

PAS3225P2R6143CAP 14MF 2.6V SURFACE MNT |
0 |
|
Datasheet |
PAS | Tape & Reel (TR) | Obsolete | 14 mF | - | 2.6 V | 80Ohm | - | SMD (SMT) Tabs | Surface Mount | 1210 (3225 Metric) | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) | -30°C ~ 70°C |
|
PM-5R0H305T-RCAP 3F -20% +80% 5V T/H |
0 |
|
Datasheet |
PM | Bulk | Obsolete | 3 F | -20%, +80% | 5 V | 70mOhm | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.209" (5.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 1.280" (32.50mm) | -40°C ~ 60°C |
|
KR-5R5H104-R-TCAP 100MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
KR | Tray | Active | 100 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.197" (5.00mm) | -25°C ~ 70°C |
|

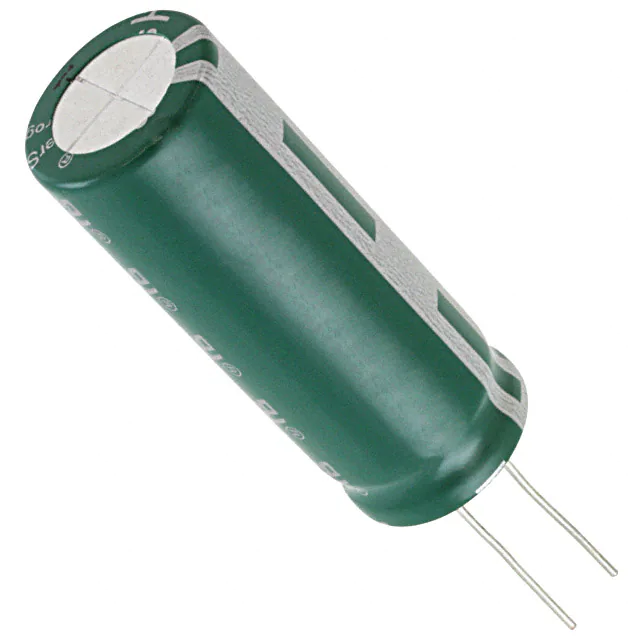

HV1850-2R7806-RCAP 80F -10% +30% 2.7V T/H |
0 |
|
Datasheet |
HV | Bulk | Active | 80 F | -10%, +30% | 2.7 V | - | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | - | - | - | -40°C ~ 65°C |
|
EDLRD224H3R6CCAP 220MF -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RD | Bulk | Obsolete | 220 mF | -20%, +80% | 3.6 V | 50Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.394" (10.00mm) | 0.413" Dia (10.50mm) | 0.236" (6.00mm) | -25°C ~ 85°C |
|
EDLRD224V3R6CCAP 220MF -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RD | Bulk | Obsolete | 220 mF | -20%, +80% | 3.6 V | 50Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can, Vertical | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 0.453" (11.50mm) | -25°C ~ 85°C |
|
EDLRG105H3R6CCAP 1F -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RG | Bulk | Obsolete | 1 F | -20%, +80% | 3.6 V | 20Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.787" (20.00mm) | 0.748" Dia (19.00mm) | 0.256" (6.50mm) | -25°C ~ 85°C |
|
EDLRG105V3R6CCAP 1F -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RG | Bulk | Obsolete | 1 F | -20%, +80% | 3.6 V | 20Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can, Vertical | 0.197" (5.00mm) | 0.748" Dia (19.00mm) | 0.827" (21.00mm) | -25°C ~ 85°C |
|
EDLRF104A5R5CCAP 100MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
RF | Bulk | Obsolete | 100 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|

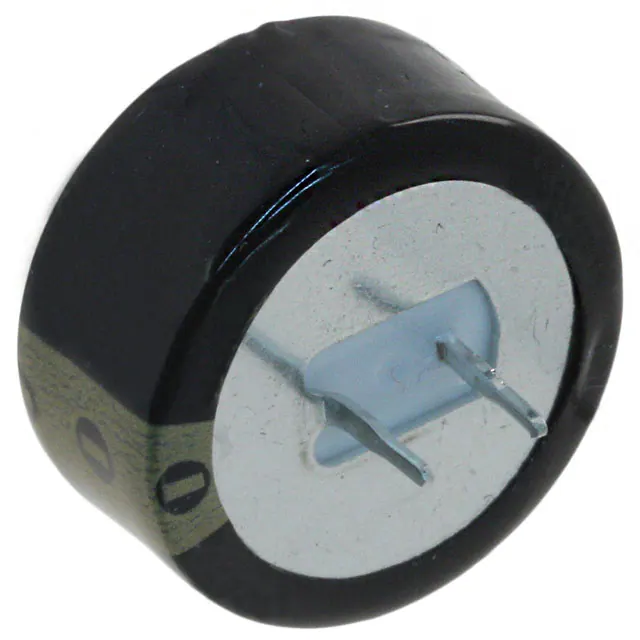

EDLRF684B5R5CCAP 680MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
RF | Bulk | Obsolete | 680 mF | -20%, +80% | 5.5 V | 20Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
PAS0815LS2R5105CAP 1F 20% 2.5V T/H |
0 |
|
Datasheet |
LS | Bulk | Obsolete | 1 F | ±20% | 2.5 V | 70mOhm | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.669" (17.00mm) | -25°C ~ 70°C |
|
PAS1016LS2R5205CAP 2F 20% 2.5V T/H |
0 |
|
Datasheet |
LS | Bulk | Obsolete | 2 F | ±20% | 2.5 V | 50mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | -25°C ~ 70°C |
|

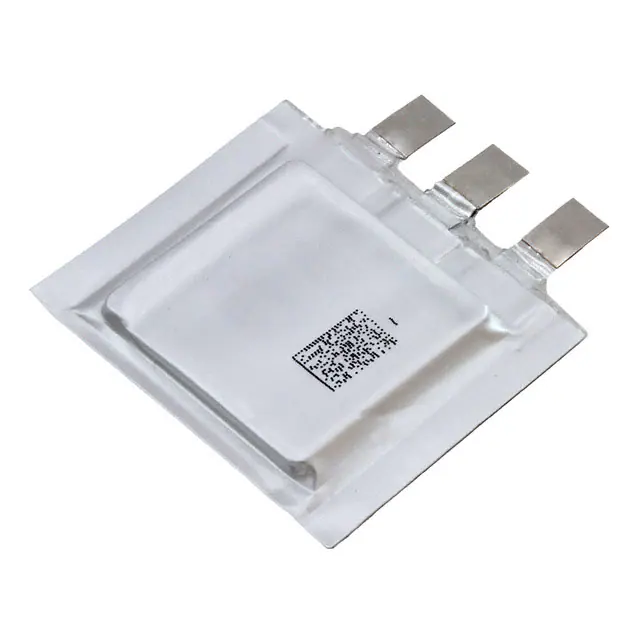

EDLC252520-351-2F-21CAP 350MF 3.2V SURFACE MNT |
0 |
|
Datasheet |
- | Tray | Obsolete | 350 mF | - | 3.2 V | - | - | SMD (SMT) Tabs | Surface Mount | 3-SMD, Flat Leads | - | 0.984" L x 0.787" W (25.00mm x 20.00mm) | 0.098" (2.50mm) | -20°C ~ 70°C |
|
CDLC101K2R7SRCAP 100F -5% +10% 2.7V T/H |
0 |
|
Datasheet |
CDLC | Bulk | Obsolete | 100 F | -5%, +10% | 2.7 V | 4.2mOhm | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 65°C |
|
|
CDHC301K2R3SRCAP 300F -5% +10% 2.3V T/H |
0 |
|
Datasheet |
CDHC | Bulk | Obsolete | 300 F | -5%, +10% | 2.3 V | 25mOhm | 1000 Hrs @ 50°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 60°C |
|
|
CDLC302P2R7LRCAP 3000F 0% +10% 2.7V CHAS MT |
0 |
|
Datasheet |
CDLC | Bulk | Obsolete | 3000 F | 0%, +10% | 2.7 V | 0.26mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.382" Dia x 5.669" L (60.50mm x 144.00mm) | - | -40°C ~ 65°C |
|
|
CDHC221K2R3SRCAP 220F -5% +10% 2.3V T/H |
0 |
|
Datasheet |
CDHC | Bulk | Obsolete | 220 F | -5%, +10% | 2.3 V | 40mOhm | 1000 Hrs @ 50°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 60°C |
|
|
CDHC821K2R3SRCAP 820F -5% +10% 2.3V T/H |
0 |
|
Datasheet |
CDHC | Bulk | Obsolete | 820 F | -5%, +10% | 2.3 V | 12mOhm | 1000 Hrs @ 50°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.063" Dia (27.00mm) | 3.228" (82.00mm) | -40°C ~ 60°C |
|
|
CDHC102K2R3SRCAP 1000F -5% +10% 2.3V T/H |
0 |
|
Datasheet |
CDHC | Bulk | Obsolete | 1000 F | -5%, +10% | 2.3 V | 14mOhm | 1000 Hrs @ 50°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 3.543" (90.00mm) | -40°C ~ 60°C |
|
S501DC107W2R7ACAP 100F 0% +20% 2.7V T/H |
0 |
|
Datasheet |
S501 | Bulk | Obsolete | 100 F | 0%, +20% | 2.7 V | 3.6mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 65°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors Electronic Components
Explore Electric Double Layer Capacitors (EDLC), Supercapacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
