DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P65SMT 101TRSWITCH ROTARY DIP BCD 10POS ARR |
300 |
|
- |
P65SMT | Tape & Reel (TR) | Active | BCD | 10 | 200mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
SMR 14010 TMICROMINIATURE ROTARY CODED SWIT |
500 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SMR 14016 TMICROMINIATURE ROTARY CODED SWIT |
500 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DHS 908-JDUAL-IN-LINE SWITCH, HALF-PITCH- |
1,992 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.081" (2.05mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
P65THR 101TRSWITCH ROTARY DIP BCD 10POS ARR |
300 |
|
- |
P65THR | Tape & Reel (TR) | Active | BCD | 10 | 200mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
P65SMT 103TRSWITCH ROTARY DIP HEXADECIMAL 1 |
300 |
|
- |
P65SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 200mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
SMR 13116 TMICROMINIATURE ROTARY CODED SWIT |
1,000 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
P65SMT 703TRSWITCH ROTARY DIP HEXADECIMAL 1 |
300 |
|
- |
P65SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 200mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
FR01KR10H-06XL-SSWITCH ROTARY DIP BCD 0.1A 5V |
209 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DHS 912DUAL-IN-LINE SWITCH, HALF-PITCH- |
1,993 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.083" (2.10mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 105°C |
|
|
DHS 910-JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.081" (2.05mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
5161390-8SWITCH SLIDE DIP SPST 0.025A 50V |
500 |
|
Datasheet |
DIP | Box | Active | SPST | 8 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
FR01SC10P-W-SSW ROTARY DIP BCD COMP 0.1A 5V |
192 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR01SC16PSW ROTARY DIP HEX COMP 0.1A 5V |
173 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

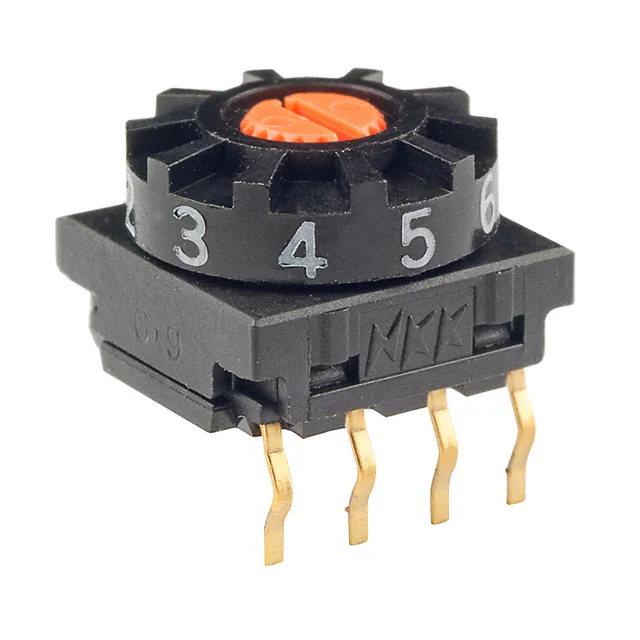

FR01SR10PSWITCH ROTARY DIP BCD 0.1A 5V |
166 |
|
Datasheet |
FR01 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DSS 206 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
1,021 |
|
Datasheet |
DSS | Tube | Active | SPST | 6 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS 912-JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.081" (2.05mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
A6KSV-164RS-R100SWITCH ROTARY DIP HEX 0.025A 24V |
700 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
|
A6KSV-164RF-PSWITCH ROTARY DIP HEX 0.025A 24V |
875 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
|
SMR 7016-1 TMICROMINIATURE ROTARY CODED SWIT |
1,000 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
