DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P36SMJ 101TRSWITCH ROTARY DIP BCD 10POS ARR |
1,300 |
|
Datasheet |
P36SMJ | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
SBP 61008 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
550 |
|
- |
SBP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.224" (5.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS 906-JDUAL-IN-LINE SWITCH, HALF-PITCH- |
1,424 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.081" (2.05mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
P36SMT 103TRSWITCH ROTARY DIP HEXADECIMAL 1 |
1,300 |
|
- |
P36SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | - | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36SMT 801TRSWITCH ROTARY DIP BCD 10POS SLO |
600 |
|
Datasheet |
P36SMT | Tape & Reel (TR) | Active | BCD | 10 | - | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
1977104-3SWITCH SLIDE DIP SPST 0.01A 5V |
11,950 |
|
Datasheet |
STV | Tube | Active | SPST | 6 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

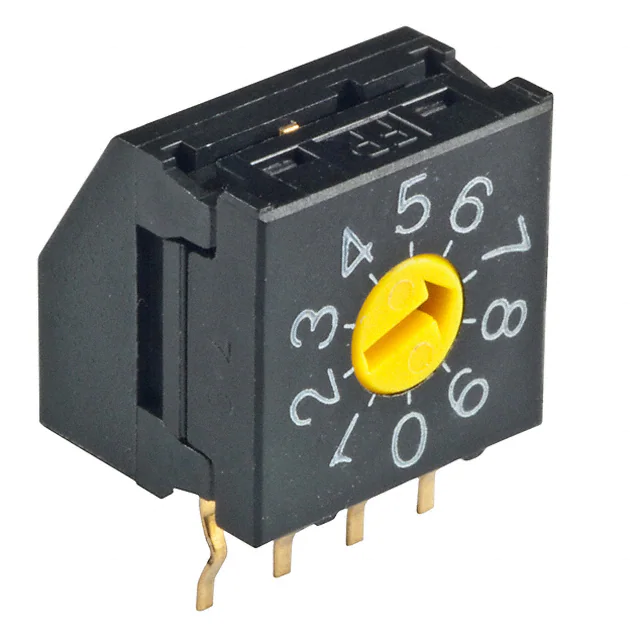

FR01FC10H-06XLSW ROTARY DIP BCD COMP 0.1A 5V |
8 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
JS0208AP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
1,485 |
|
Datasheet |
JS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
P36SMT 803TRSWITCH ROTARY DIP HEXADECIMAL 1 |
600 |
|
- |
P36SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | - | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
DHS 910DUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.083" (2.10mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 105°C |
|
|
DSS 204 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
857 |
|
Datasheet |
DSS | Tube | Active | SPST | 4 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6KS-162RS-R100SWITCH ROTARY DIP HEX 0.025A 24V |
500 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6H-6101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
2,665 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
|
SBP 9110 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
500 |
|
Datasheet |
SBP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.256" (6.50mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
DHS 608 JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
DHS 610 JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
SBP 61010 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
550 |
|
- |
SBP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.224" (5.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
5161390-6SWITCH SLIDE DIP SPST 0.025A 50V |
0 |
|
Datasheet |
DIP | Box | Active | SPST | 6 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
P36SMT 301L508TRSWITCH ROTARY DIP BCD 10POS SPI |
300 |
|
Datasheet |
P36SMT | Tape & Reel (TR) | Active | BCD | 10 | - | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P65SMT 701TRSWITCH ROTARY DIP BCD 10POS CRO |
300 |
|
- |
P65SMT | Tape & Reel (TR) | Active | BCD | 10 | 200mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
