DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS 9012 JTKDUAL-IN-LINE SWITCH FOR SMT, IC- |
1,100 |
|
Datasheet |
SBS | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Brass | Tin | 0.126" (3.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-8S-1065-3-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
Datasheet |
RDS3-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-10S-1065-3-DSWITCH ROTARY DIP BCD 0.15A 42V |
197 |
|
Datasheet |
RDS6-1065-D | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-16S-1065-3-DSWITCH ROTARY DIP HEX 0.15A 42V |
194 |
|
Datasheet |
RDS3-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1065-3-DSWITCH ROTARY DIP HEX 0.15A 42V |
194 |
|
Datasheet |
RDS6-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-10S-1065-3-DSWITCH ROTARY DIP BCD 0.15A 42V |
193 |
|
Datasheet |
RDS3-1065-D | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2010SWITCH ROTARY DIP BCD 0.1A 5V |
302 |
|
Datasheet |
SC | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DRS 3010SWITCH ROTARY BCD |
480 |
|
Datasheet |
DRS | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
DHS 902-JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,965 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.081" (2.05mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
SC-2010BSWITCH ROTARY DIP BCD 0.1A 5V |
165 |
|
Datasheet |
SC-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

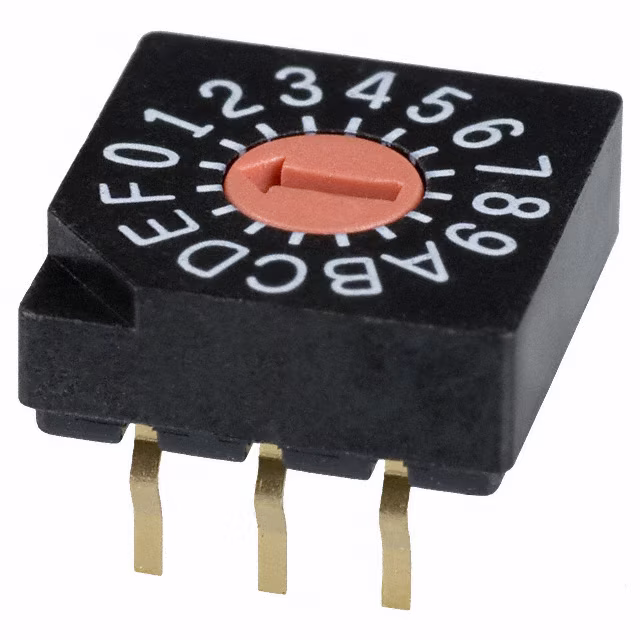

SD-1030SW ROTARY DIP HEX COMP 0.1A 5V |
1,541 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS 610DUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
TDP04H1SBD1RSWITCH PIANO DIP SPST 0.025A 24V |
1,570 |
|
Datasheet |
TDP | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
RTE0400V04SWITCH ROTARY DIP SP4T 0.1A 30V |
5,716 |
|
Datasheet |
RTE | Bulk | Active | SP4T | 4 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
SBP 8110 TDUAL-IN-LINE SWITCH END-STACKABL |
700 |
|
Datasheet |
SBP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.236" (6.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SBP 61005 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
550 |
|
- |
SBP | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.224" (5.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHP 602DUAL-IN-LINE SWITCH, HALF-PITCH- |
141 |
|
Datasheet |
DHP 600 | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
DHS 604 JDUAL-IN-LINE SWITCH, HALF-PITCH- |
2,000 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

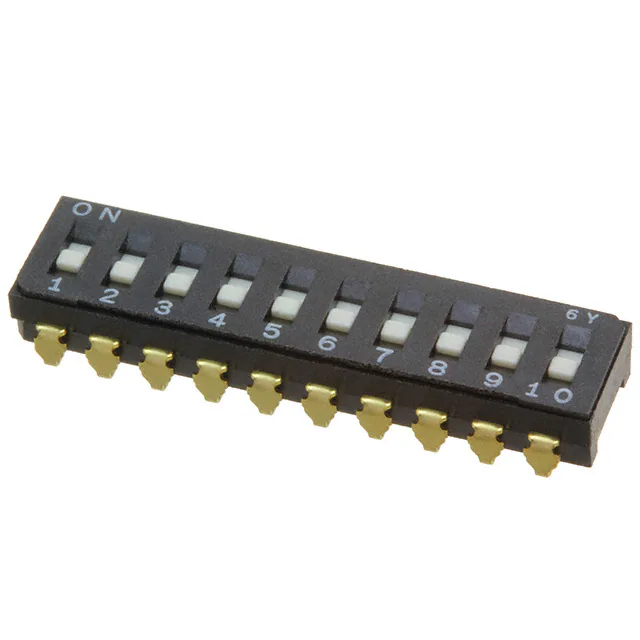

CFS-1001MASWITCH SLIDE DIP SPST 0.1A 6V |
128 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

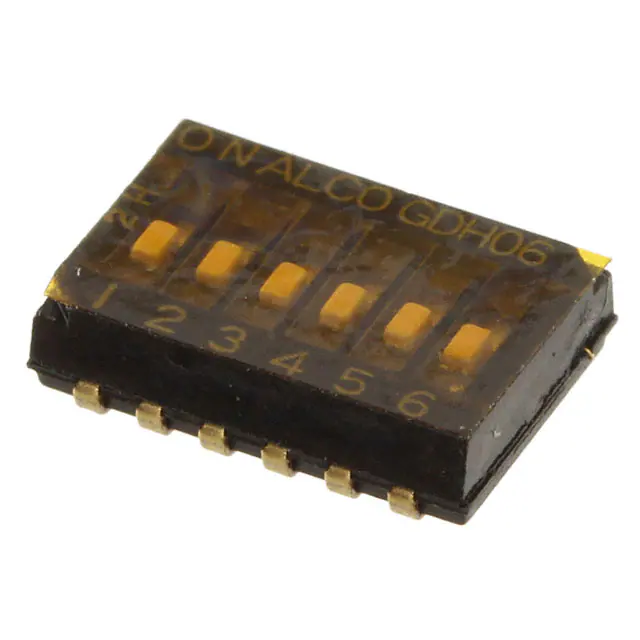

GDH06SA04SWITCH SLIDE DIP SPST 0.025A 24V |
4,990 |
|
Datasheet |
GDH | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
